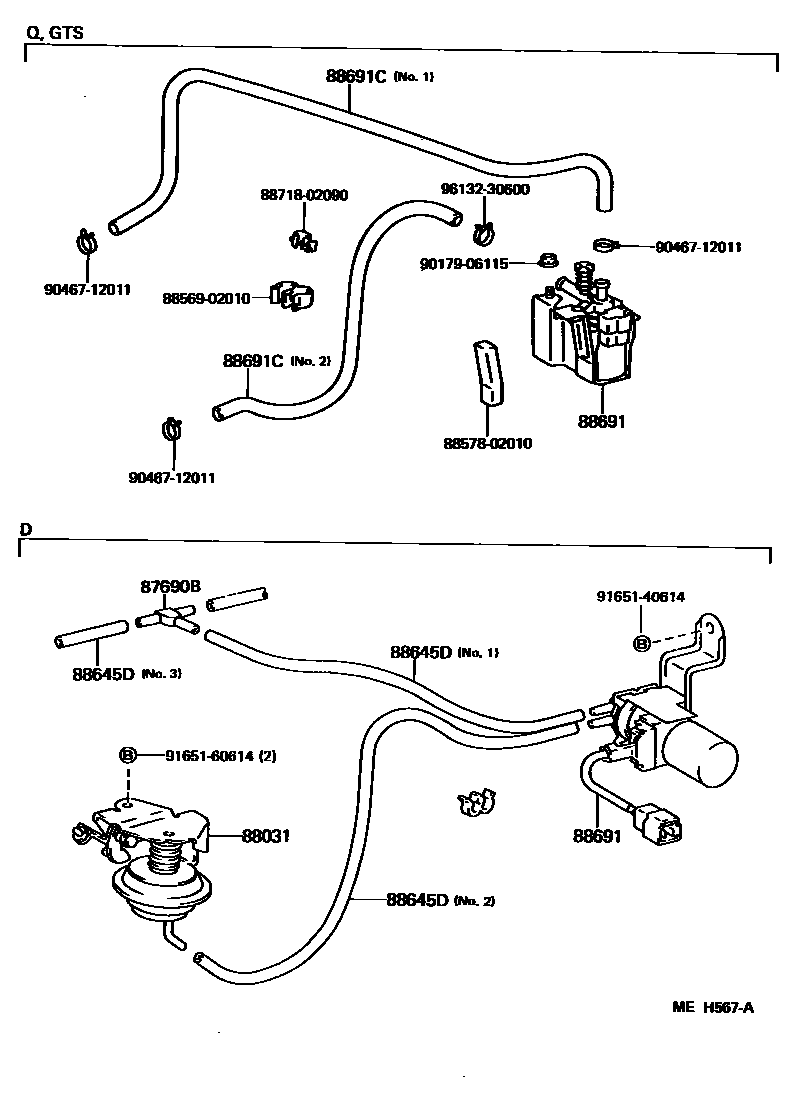

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90080-41001 |
| 88031 | Idle speed lift actuator assembly | 88031-12140 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-01011 · 88690-02010 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-02010 · 88689-02020 |
