Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

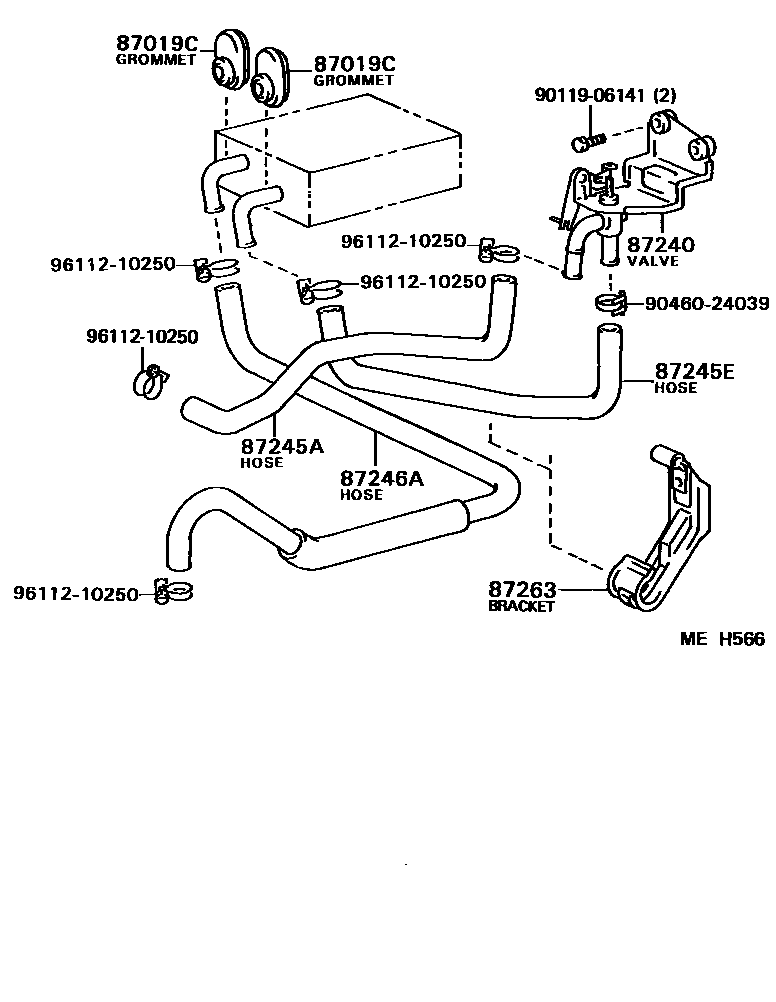

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01015 |
| 87240 | Heater water valve assembly | 87240-12201 · 87240-12220 |
| 87245A | Heater water inlet hose A | 87245-02020 · 87245-12730 |
| 87245E | Heater water inlet hose E | 87245-12680 · 87245-1A060 |
| 87246A | Heater outlet hose A | 87245-12740 |
| 87263 | No. 1 heater water pipe bracket | 87263-12220 |
