Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 11 PNC and OE references.

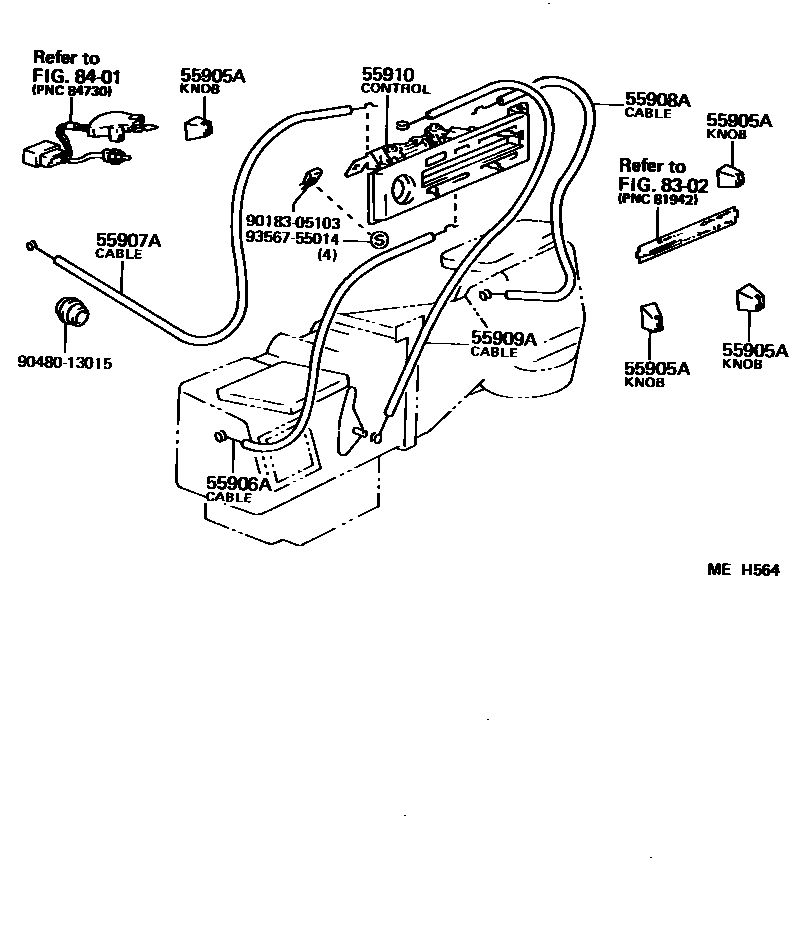

Toyota COROLLA 暖风和空调系统 - 控制器和风管 EPC diagram — MEH564
暖风和空调系统 - 控制器和风管 — MEH564 (198609 – 999999)

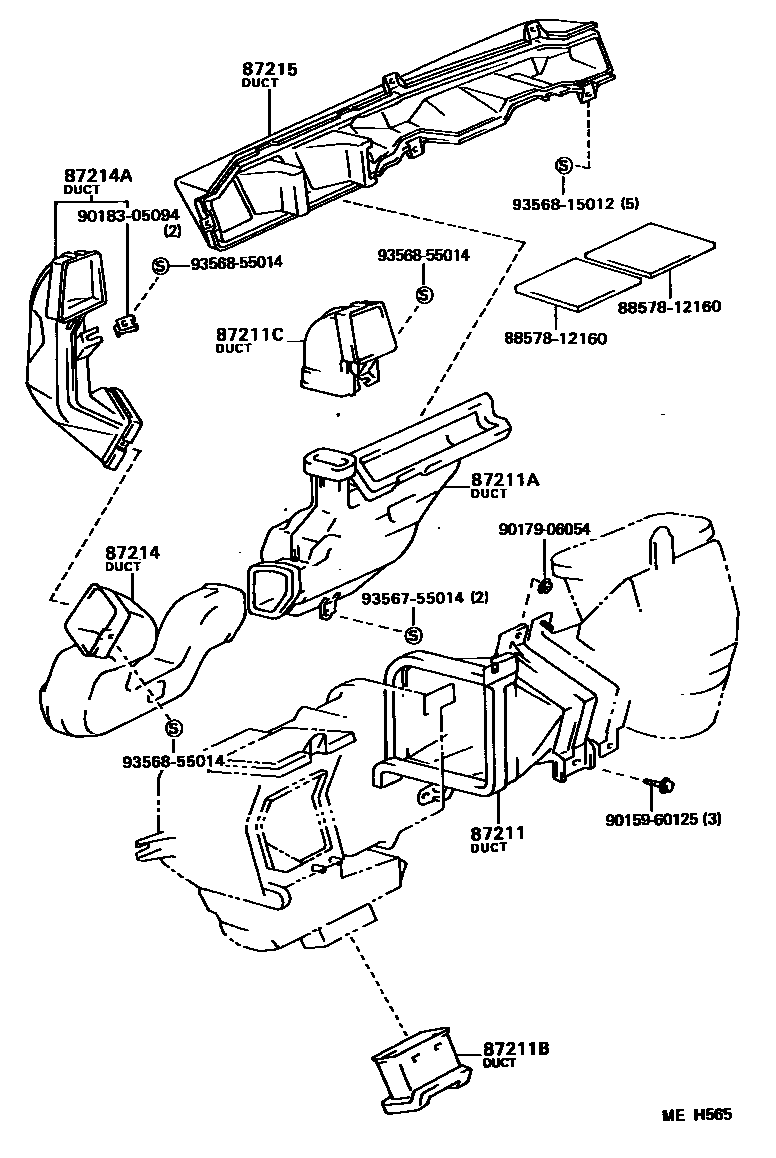

Toyota COROLLA 暖风和空调系统 - 控制器和风管 EPC diagram — MEH565
暖风和空调系统 - 控制器和风管 — MEH565 (198609 – 999999)

PNC and OE references

PNCPart nameOE numbers
55906ADefroster damper control cable sub-assembly55906-12190
55907AWater valve control cable sub-assembly55907-12250
55908AIntake air valve control cable sub-assembly55908-12170
55909AAir mix damper control cable sub-assembly55909-12150
87211No. 1 air duct87201-12080
87211ADuct No. 287201-12050
87211BNo. 3 air duct87211-12110
87211CNo. 4 air duct55086-12131
87214Air duct No. 1 on the right55844-01010 · 55844-01020
87214AAir duct No. 2 on the right55084-12101
87215Air duct No. 1 on the left55087-12080
