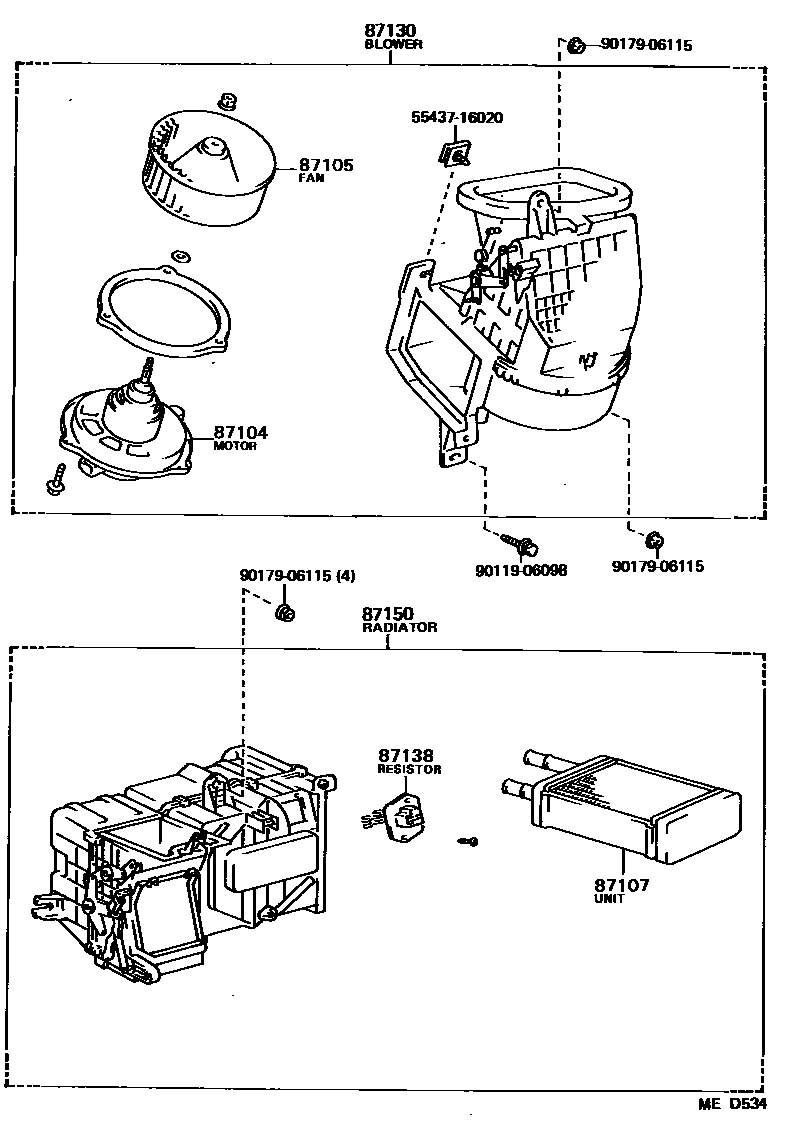

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-12210 |
| 87105 | Heater blower fan sub-assembly | 87105-14020 |
| 87107 | Heater radiator device sub-assembly | 87107-12320 · 87107-12340 |
| 87130 | Front heater blower assembly | 87130-12240 |
| 87138 | Heater Blower Resistor | 87138-12110 |
| 87150 | Heater radiator assembly | 87150-12201 · 87150-12221 |
