Toyota COROLLA 后清洗器 — Figure 8504

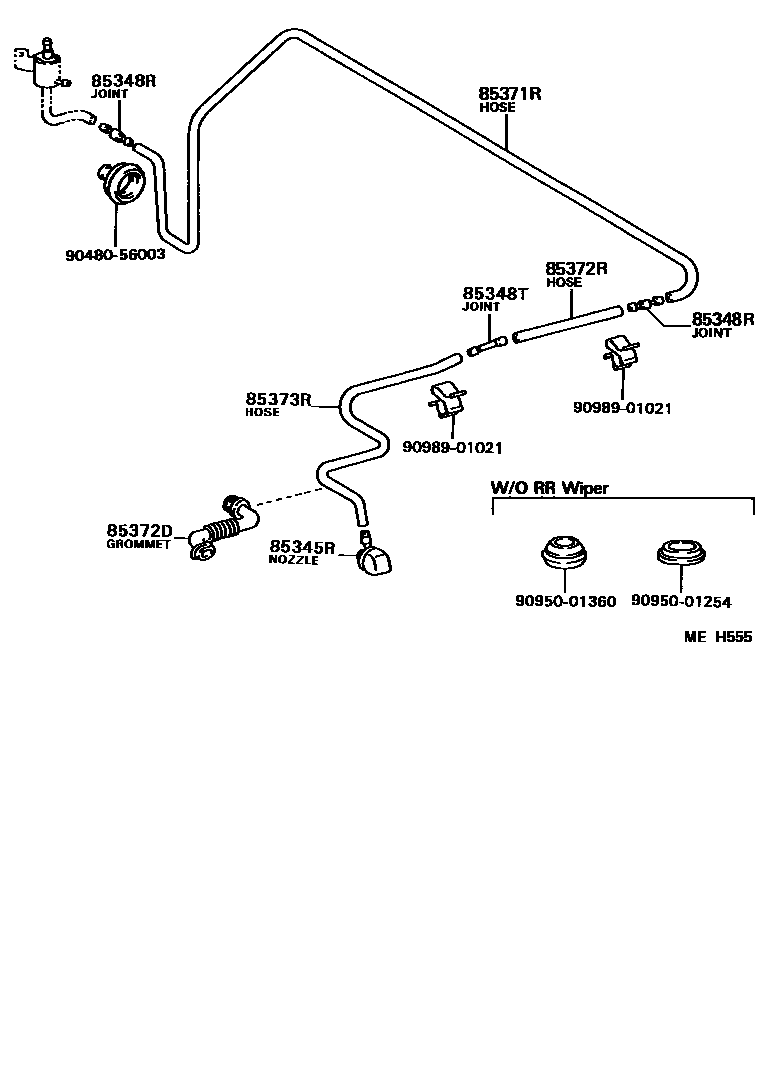

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85035-12160 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85355-20080 |
| 85371R | Rear washer hose (from motor to connector) | 90099-33490 |
| 85372D | Rear washer hose seal | 85372-14020 |
