Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

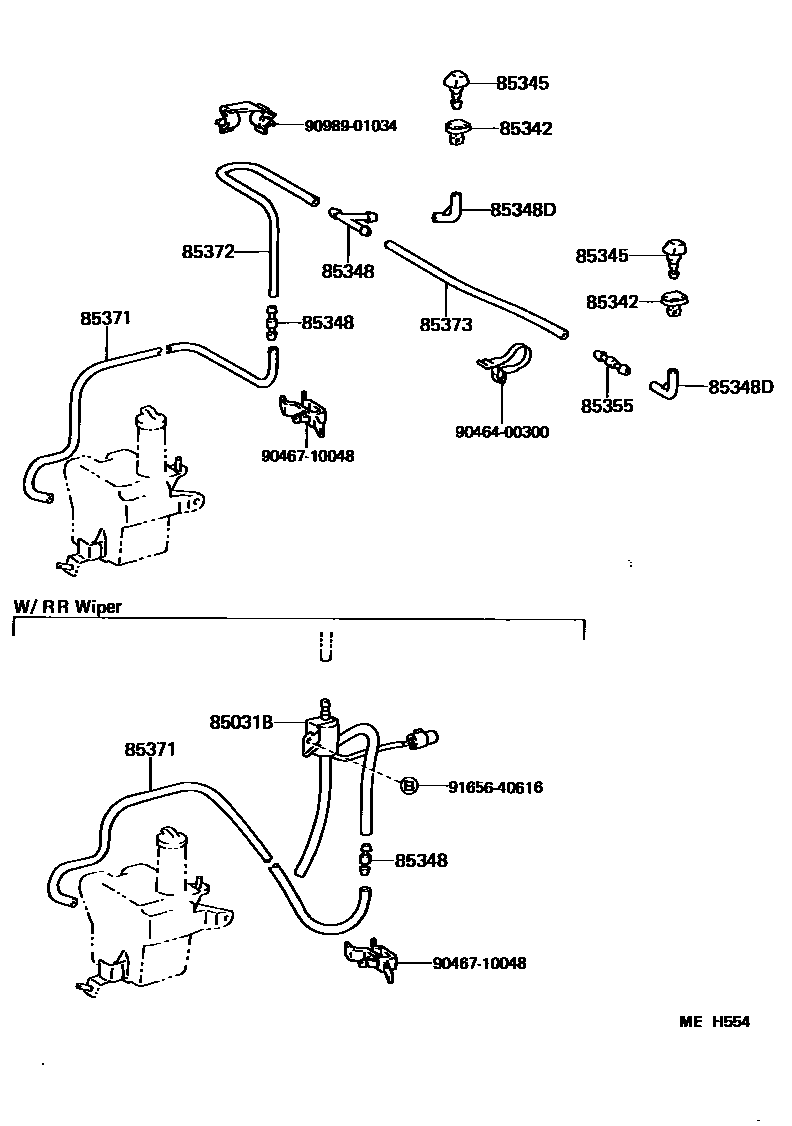

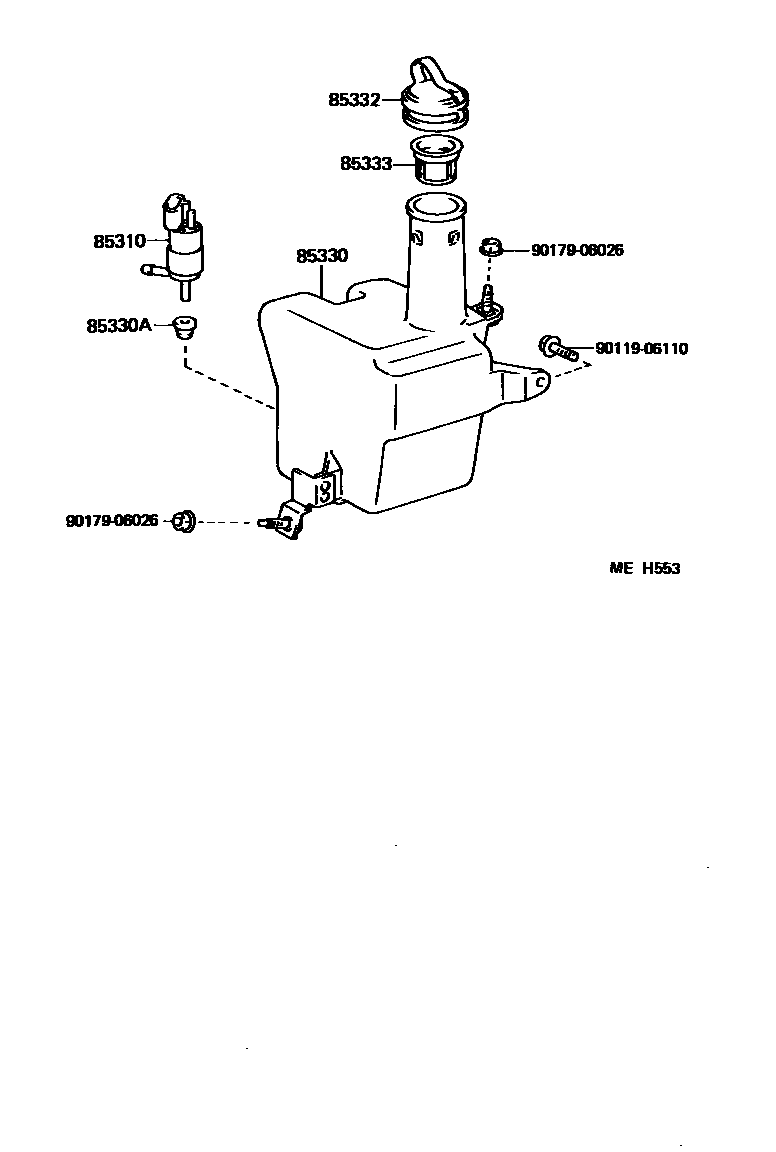

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-02010 · 85031-12051 |
| 85310 | Windshield washer motor and pump assembly | 85310-01010 |
| 85330 | Windshield washer fluid tank assembly | 85331-01010 |
| 85330A | Windshield washer fluid tank bushing | 85356-01010 |
| 85332 | Windshield washer fluid tank cap | 85332-01010 |
| 85333 | Windshield washer fluid tank filter | 85333-01010 |
| 85342 | Washer nozzle retainer | 85342-01010 |
| 85345 | windshield washer nozzle | 85035-01010 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-01010 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85355 | Windshield washer hose valve | 85031-12250 |
| 85371 | Windshield washer hose (from motor to connector) | 85343-01010 |
