Toyota COROLLA 电子控制变速器 — Figure 8412

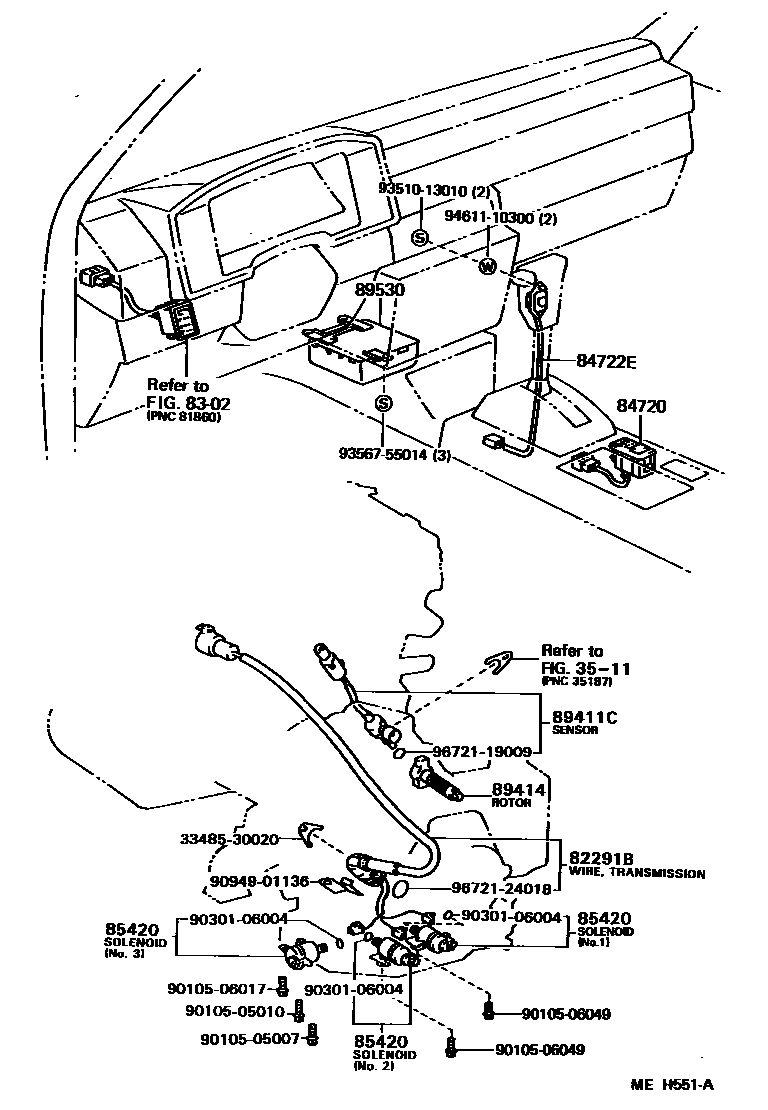

Toyota COROLLA EPC diagram 8412, 电子控制变速器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82291B | to solenoid valve harness (for transmission) | 82125-12250 · 82125-17020 |
| 84720 | Mode selection switch assembly | 84720-20060 |
| 85420 | Transmission solenoid valve assembly | 85420-12020 · 85420-12061 |
| 89411C | Speed sensor | 89411-12010 · 89411-17020 |
| 89414 | sensor rotor | 89414-12010 |
| 89530 | Transmission control ECU assembly | 89530-01010 · 89530-02010 |
