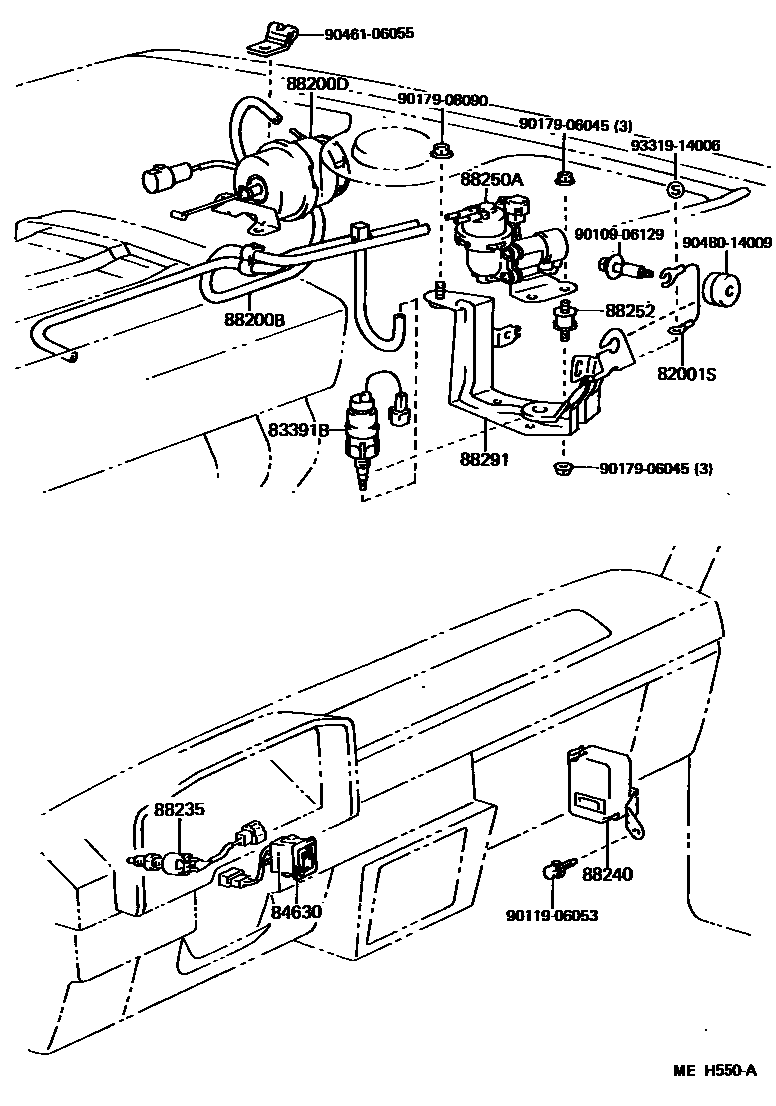

Toyota COROLLA 巡航控制(自动行驶) — Figure 8408
Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001S | Connecting cable | 90980-07283 |
| 83391B | Automatic driving vacuum switch | 83391-14090 |
| 84630 | Cruise control main switch assembly | 84630-32040 |
| 88200B | cruise control vacuum hose | 88283-02010 |
| 88200D | Cruise control actuator assembly | 88200-02010 · 88200-02011 |
| 88235 | Cruise control (automatic driving) release switch assembly | 88280-35010 |
| 88240 | Cruise control ECU assembly | 88240-02010 |
| 88250A | cruise control pump assembly | 88251-02010 · 88251-02011 |
| 88252 | Vacuum pump cushion | 88252-14110 |
| 88291 | No. 1 cruise control (automatic driving) bracket | 88291-02010 |
