Toyota COROLLA 电子燃油喷射系统 — Figure 8404

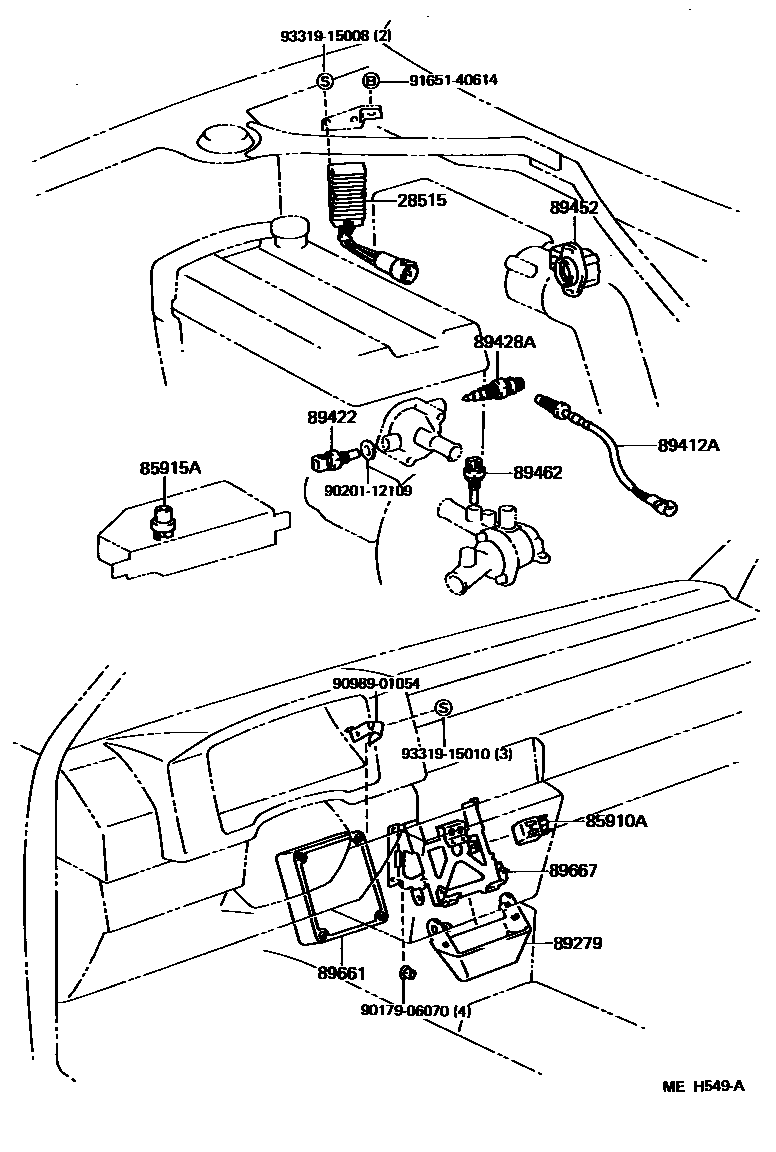

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-52010 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85915A | main relay | 90987-02004 |
| 89279 | Engine control ECU cover | 89279-12010 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-12010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-12010 · 89422-30020 |
| 89428A | Water temperature switch (for E.F.I.) | 89428-28030 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12040 · 89452-20070 |
| 89462 | Start injector timing switch | 89462-12010 · 89462-30011 |
| 89661 | Engine control ECU | 89661-01010 · 89661-01020 · 89661-02011 · 89661-02021 |
| 89667 | Engine control ECU bracket | 89667-02010 · 89667-12010 |
