Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 3 images and 18 PNC and OE references.

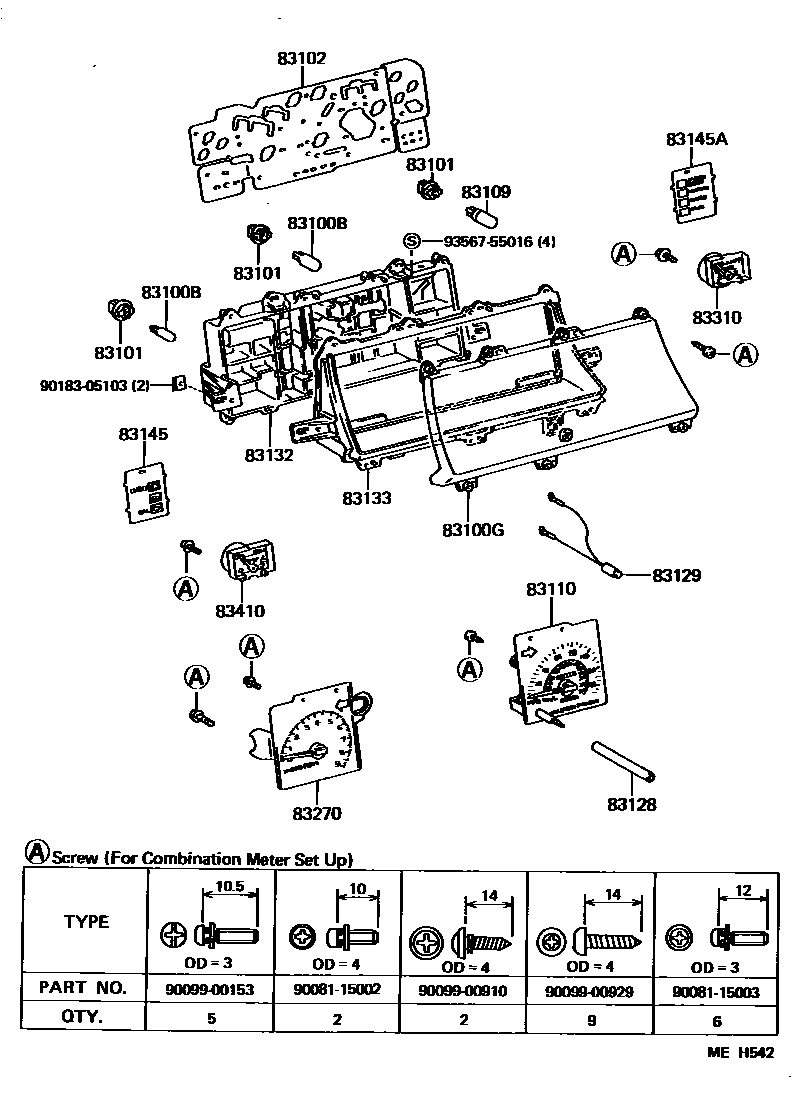

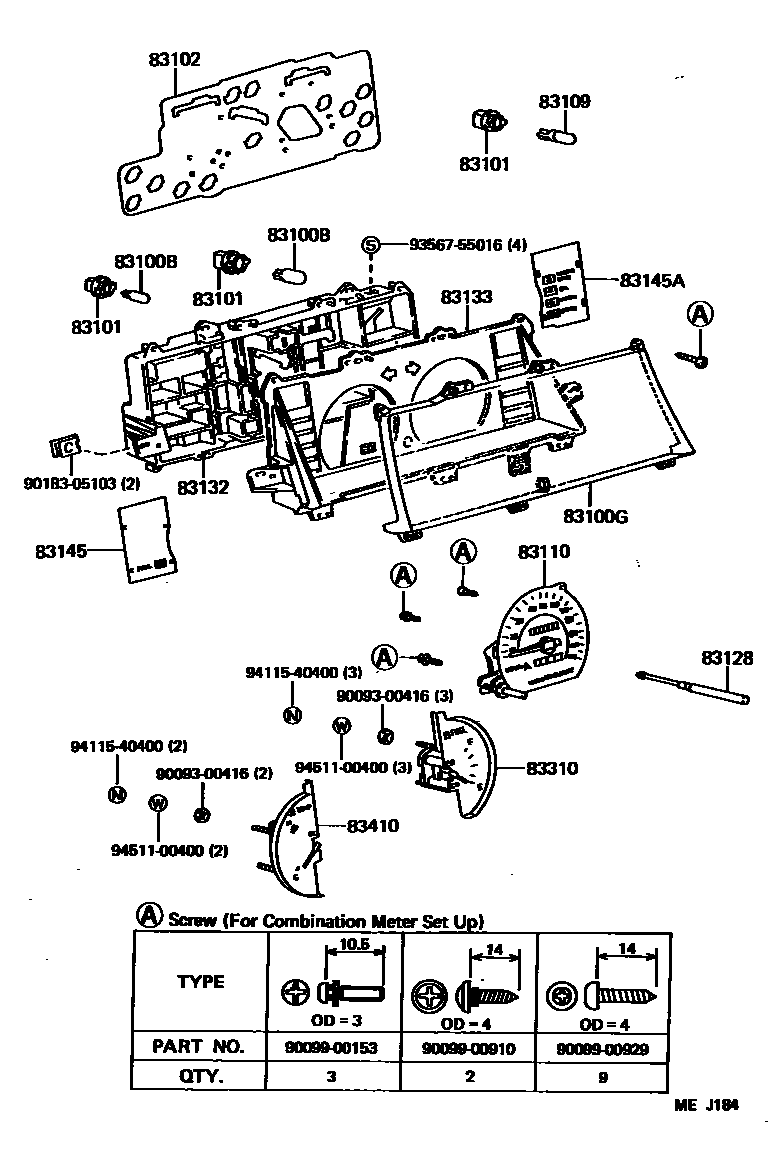

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83138-12730 · 83138-12810 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-02010 · 83247-1A650 |
| 83109 | Combined instrument bulb No. 2 | 83109-24030 |
| 83110 | Speedometer assembly | 83110-02010 · 83110-1A502 |
| 83128 | trip odometer handle | 83128-02010 · 83128-12690 |
| 83129 | Instrument wiring harness | 83129-02010 |
| 83132 | Instrument cluster housing | 83132-02010 · 83132-12530 |
| 83133 | Combined instrument panel No. 1 | 83133-1A090 · 83133-1A110 |
| 83145 | Instrument No. 1 lampshade | 83145-02020 · 83145-1A630 |
| 83145A | Instrument No. 2 lampshade | 83145-02010 · 83145-1A750 |
| 83270 | Engine tachometer assembly | 83242-02010 |
| 83310 | Fuel gauge assembly | 83243-02010 · 83243-12550 |
| 83410 | Water temperature meter assembly | 83244-02010 · 83244-12790 |

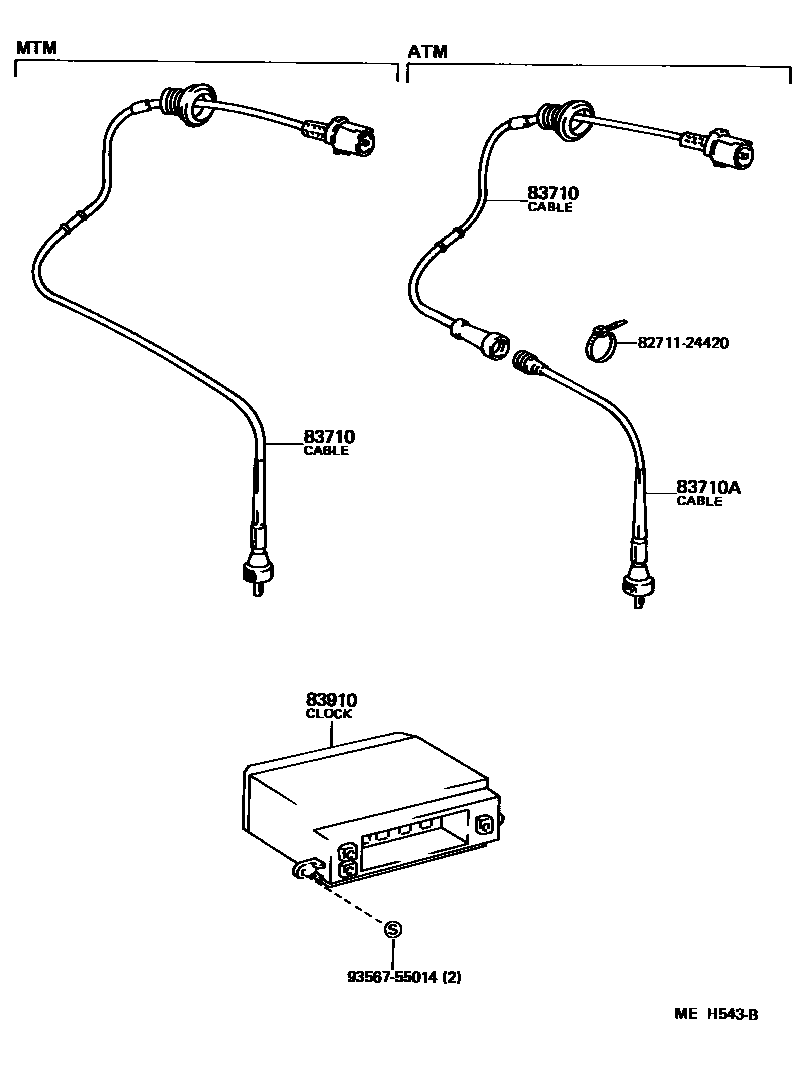

| 83710 | No. 1 speedometer transmission cable assembly | 83710-01041 · 83710-12330 · 83710-12390 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-01050 · 83710-12360 |
| 83910 | clock assembly | 83910-12330 |
