Toyota COROLLA 线束和卡夹 — Figure 8202

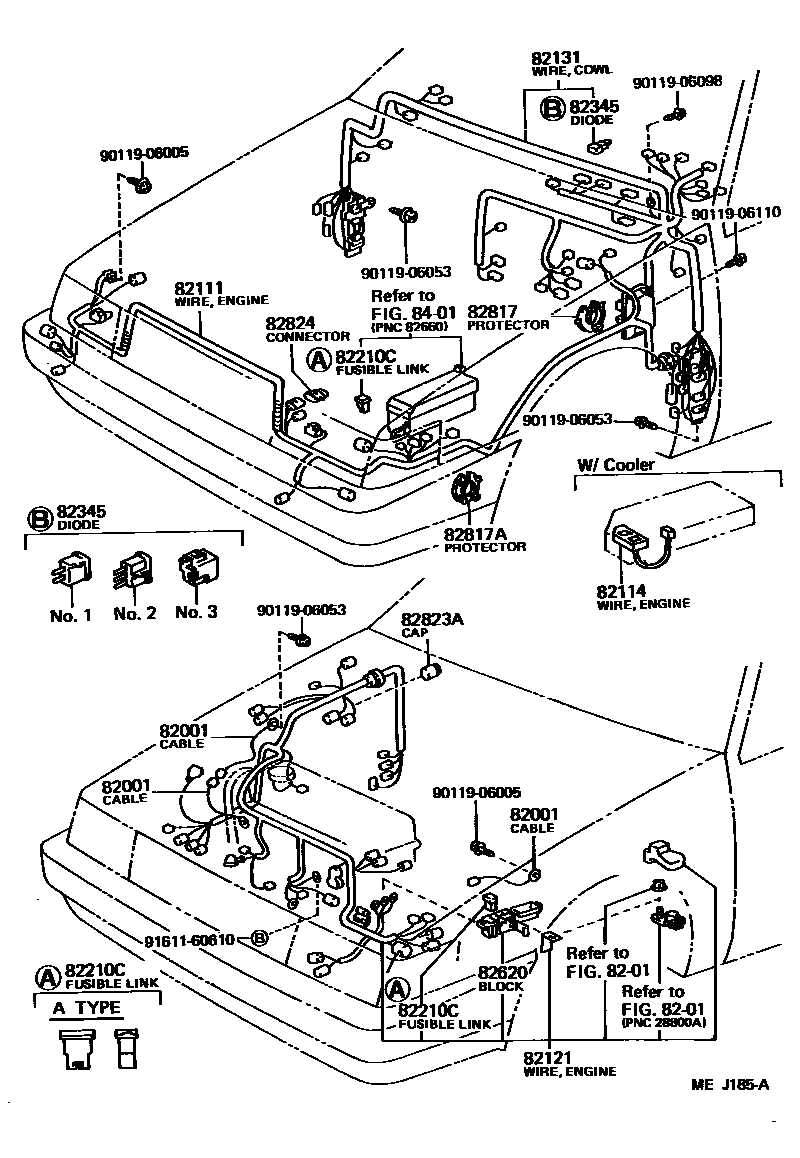

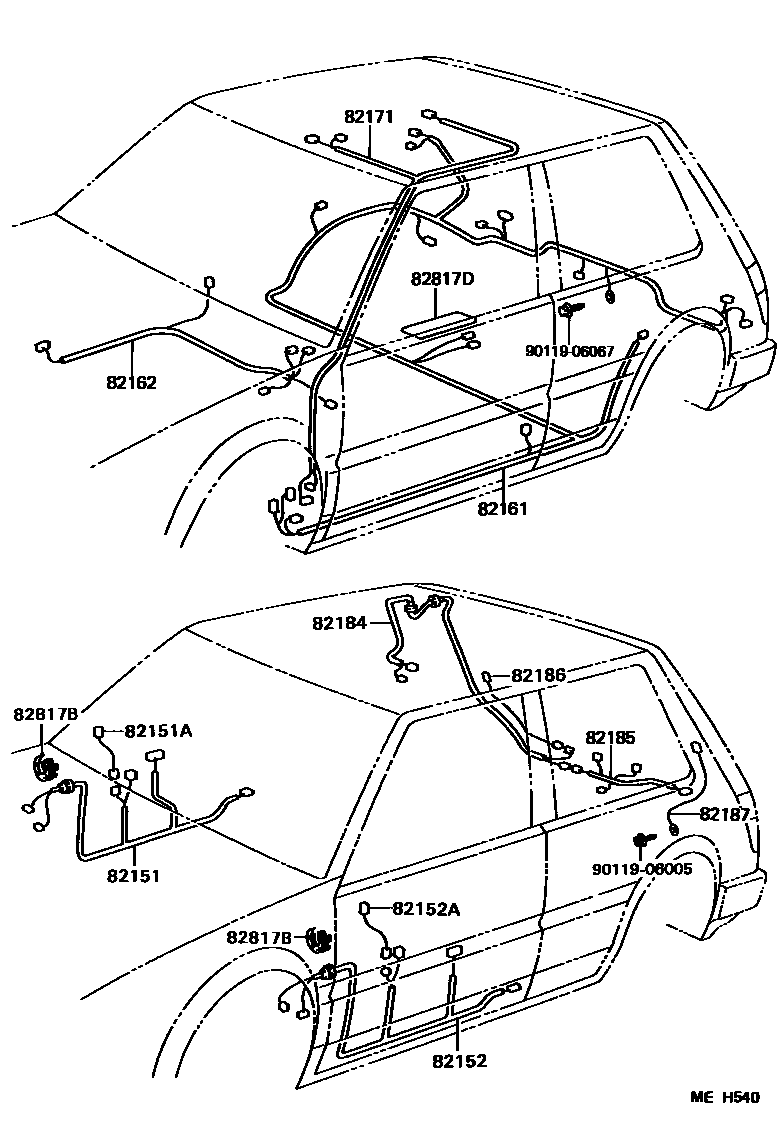

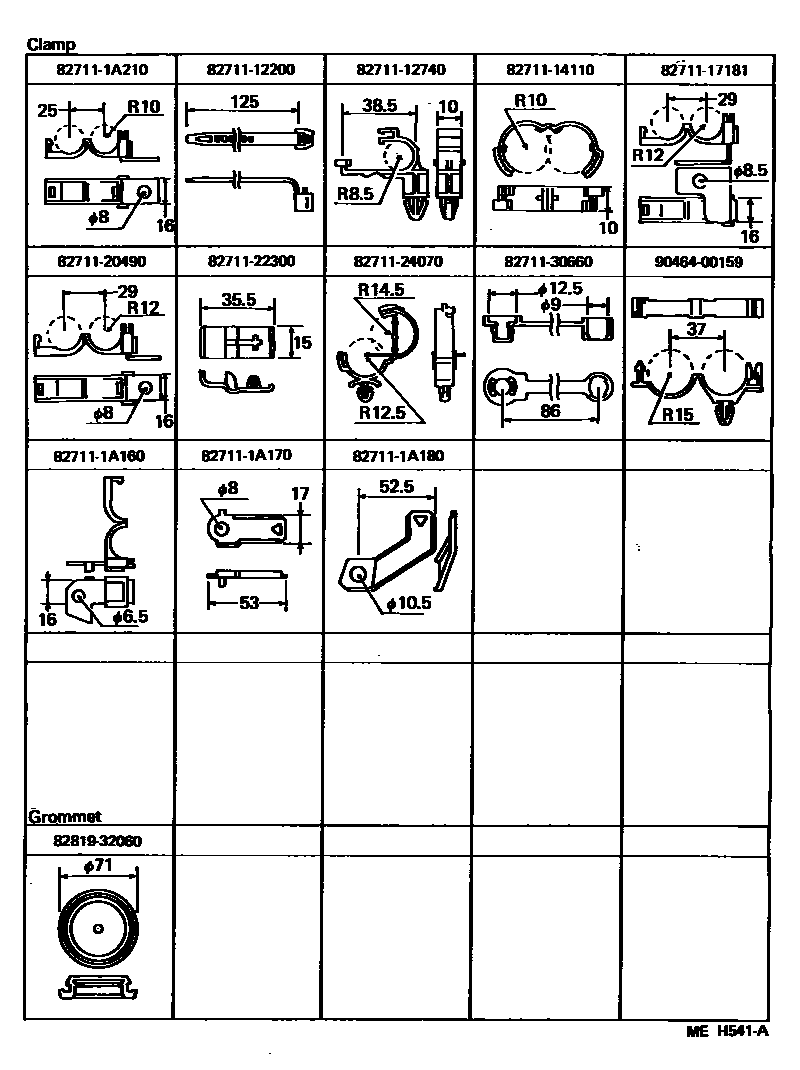

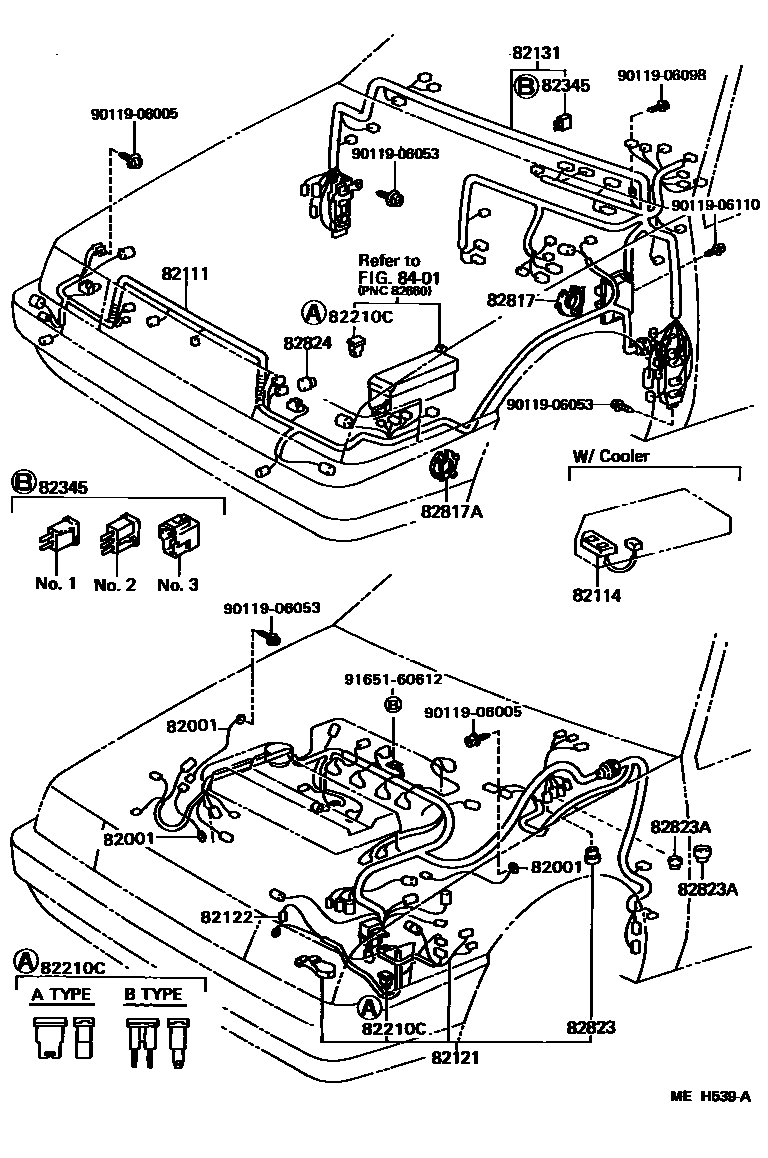

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90080-82003 · 90980-07206 · 90980-07228 · 90980-07235 |
| 82111 | Engine room main wiring harness | 82111-02010 · 82111-02020 |
| 82114 | Engine room wiring harness No. 4 | 82114-01010 |
| 82121 | Engine wiring harness | 82121-01013 · 82121-01023 · 82121-02010 · 82121-02011 · 82121-02020 · 82121-02021 |
| 82122 | Engine No. 2 wiring harness | 82122-02010 |
| 82131 | Front panel wiring harness | 82131-02010 · 82131-02011 · 82131-02020 · 82131-02021 · 82131-02030 · 82131-02031 · 82131-02040 · 82131-02041 · 82131-02050 · 82131-02051 |
| 82151 | Right front door wiring harness | 82151-02020 · 82151-02030 |
| 82151A | Right front door wiring harness No. 2 | 82151-02010 |
| 82152 | Left front door wiring harness | 82152-02010 · 82152-02020 |
| 82152A | Left front door wiring harness No. 2 | 82151-02010 |
| 82161 | floor wiring harness | 82161-02010 · 82161-02020 |
| 82162 | Floor wiring harness No. 2 | 82162-02010 · 82162-02020 · 82162-02030 |
| 82171 | Roof No. 1 wiring harness | 82171-02010 · 82171-02020 |
| 82184 | Rear door No. 1 wiring harness | 82184-02010 · 82184-02020 |
| 82185 | Rear door wiring harness No. 2 | 82185-02010 · 82185-02020 |
| 82186 | Rear window wiring harness No. 1 | 82186-02010 |
| 82187 | Rear window wiring harness No. 2 | 82187-02010 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08190 · 90982-08203 · 90982-08223 |
| 82345 | diode | 82345-01010 · 82345-01020 · 82345-01030 |
| 82620 | Fuse box assembly | 82620-01030 |
| 82817 | No. 1 wire harness protection device | 82817-14360 |
| 82817A | No. 2 wire harness protection device | 82817-32010 |
| 82817B | No. 3 wire harness protection device | 82817-20320 |
| 82817D | No. 5 wire harness protection device | 82817-16100 |
| 82823 | No. 1 terminal cover | 82823-12050 |
| 82823A | Terminal cover No. 2 | 82823-14040 · 82823-30010 |
| 82824 | Harness connector | 82824-32030 |
