Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106

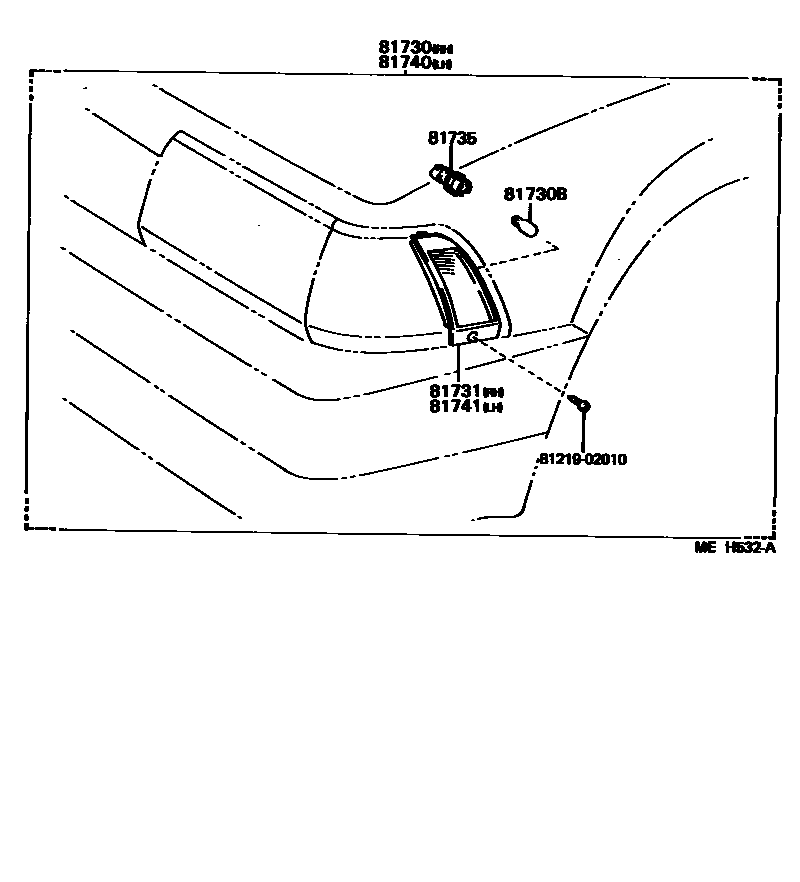

Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-02010 |
| 81730B | Bulb (for side turn signal lights) | 90981-11020 |
| 81731 | Right side turn signal lamp cover | 81731-02010 |
| 81735 | Side turn signal lamp holder and wiring harness | 81735-12180 |
| 81740 | Left side turn signal light assembly | 81740-02010 |
| 81741 | Left side turn signal lamp cover | 81741-02010 |
