Toyota COROLLA Headlamp — Figure 8101

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 11 PNC and OE references.

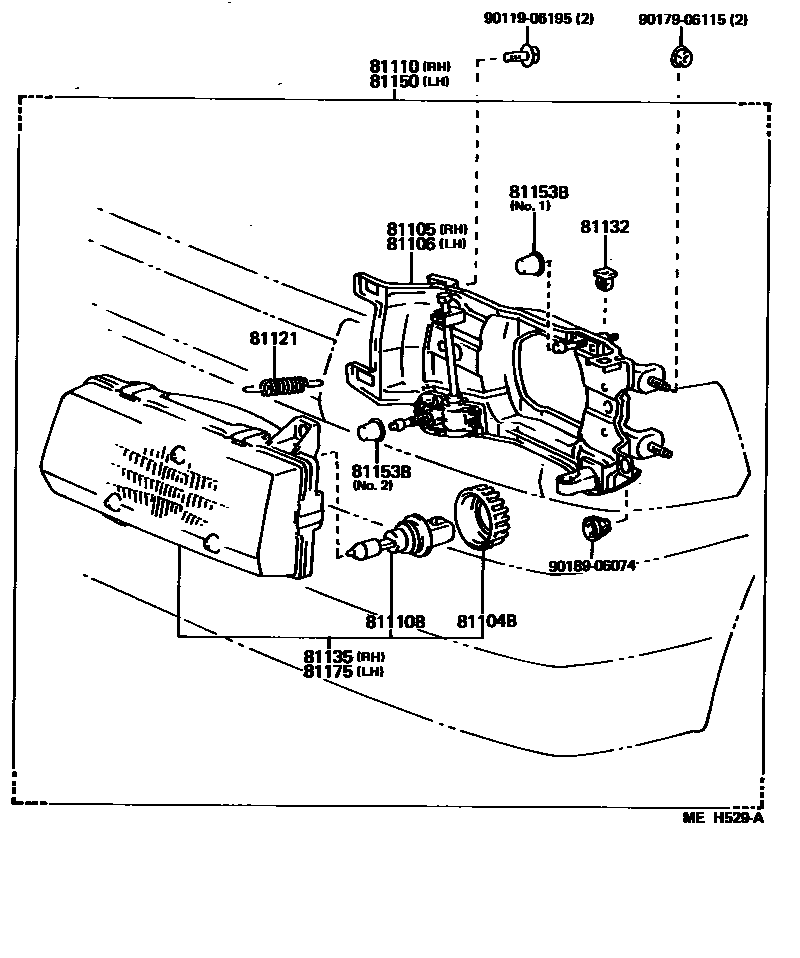

Toyota COROLLA Headlamp EPC diagram — MEH529A
Headlamp — MEH529A (198609 – 999999)

PNC and OE references

PNCPart nameOE numbers
81104Bheadlight lock cover81104-22520
81105Right headlight housing sub-assembly81101-02010
81106Left headlight housing sub-assembly81102-02010
81110Right headlight assembly81110-02010
81110BBulb (for headlight No. 1)90981-13032
81121headlight spring81121-22520
81132Headlight self-locking nut81137-22530
81135Right headlight assembly81130-02010
81150Left headlight assembly81150-02010
81153Bheadlight support81127-1A191 · 81127-32200
81175Left headlight assembly81170-02010
