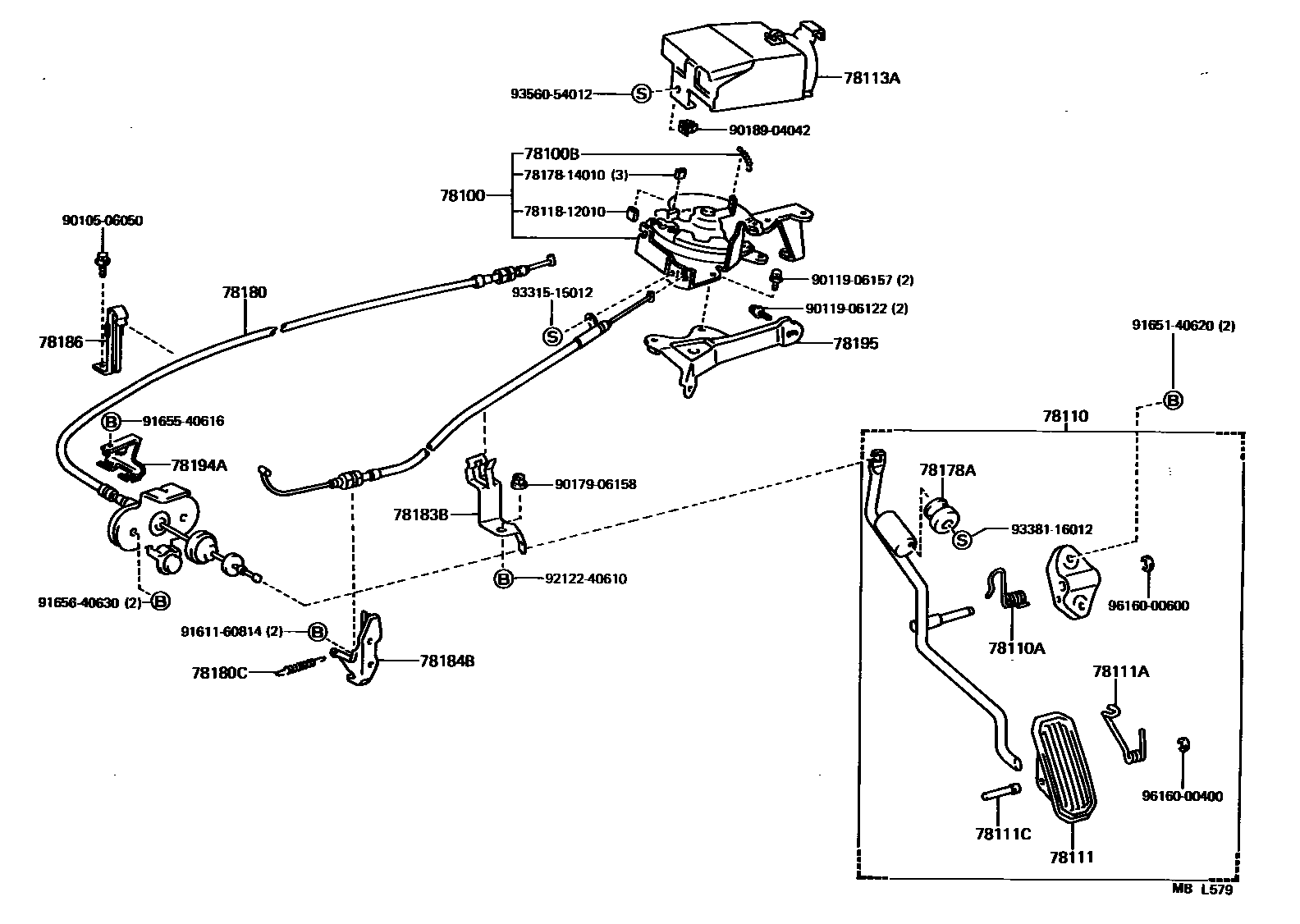

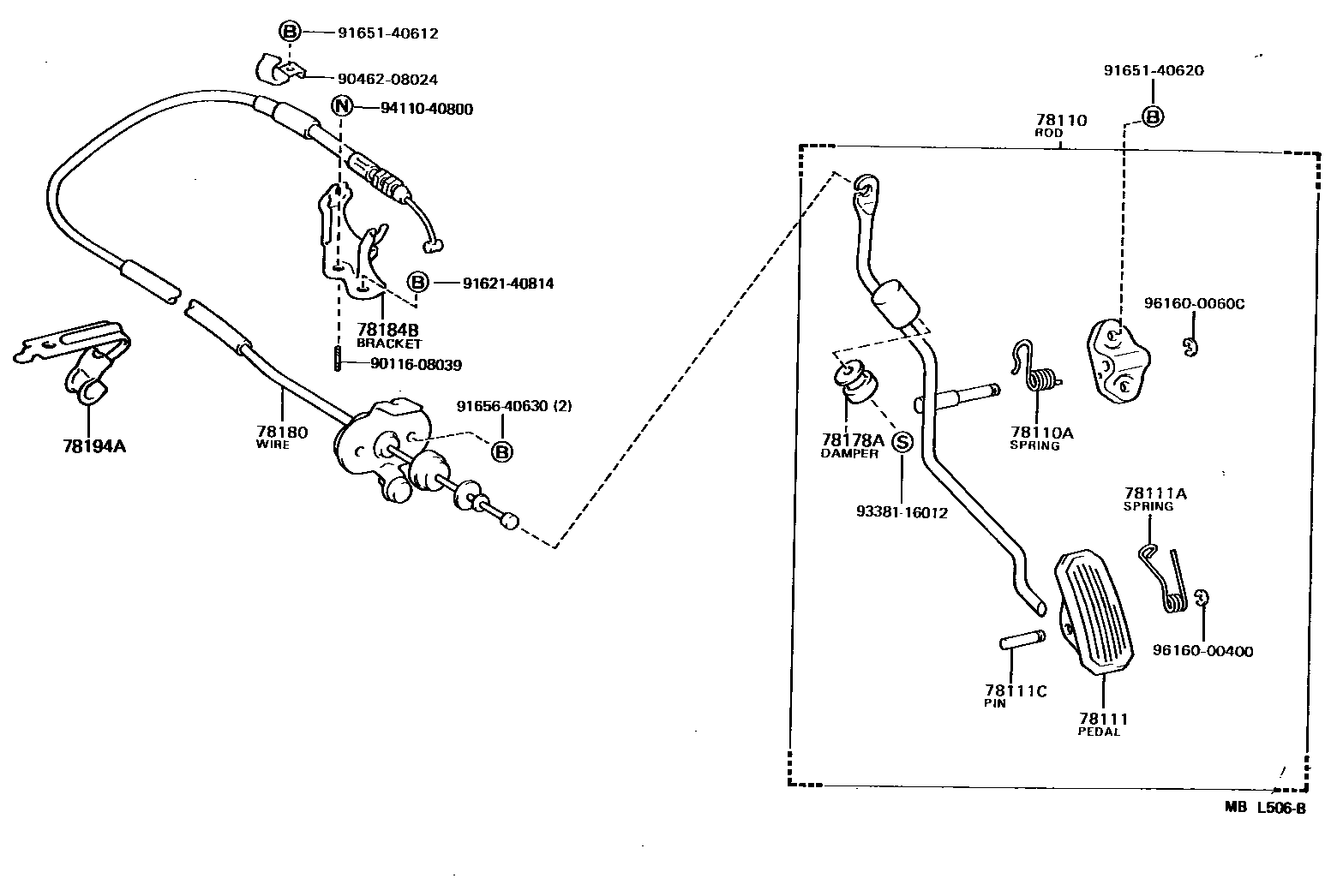

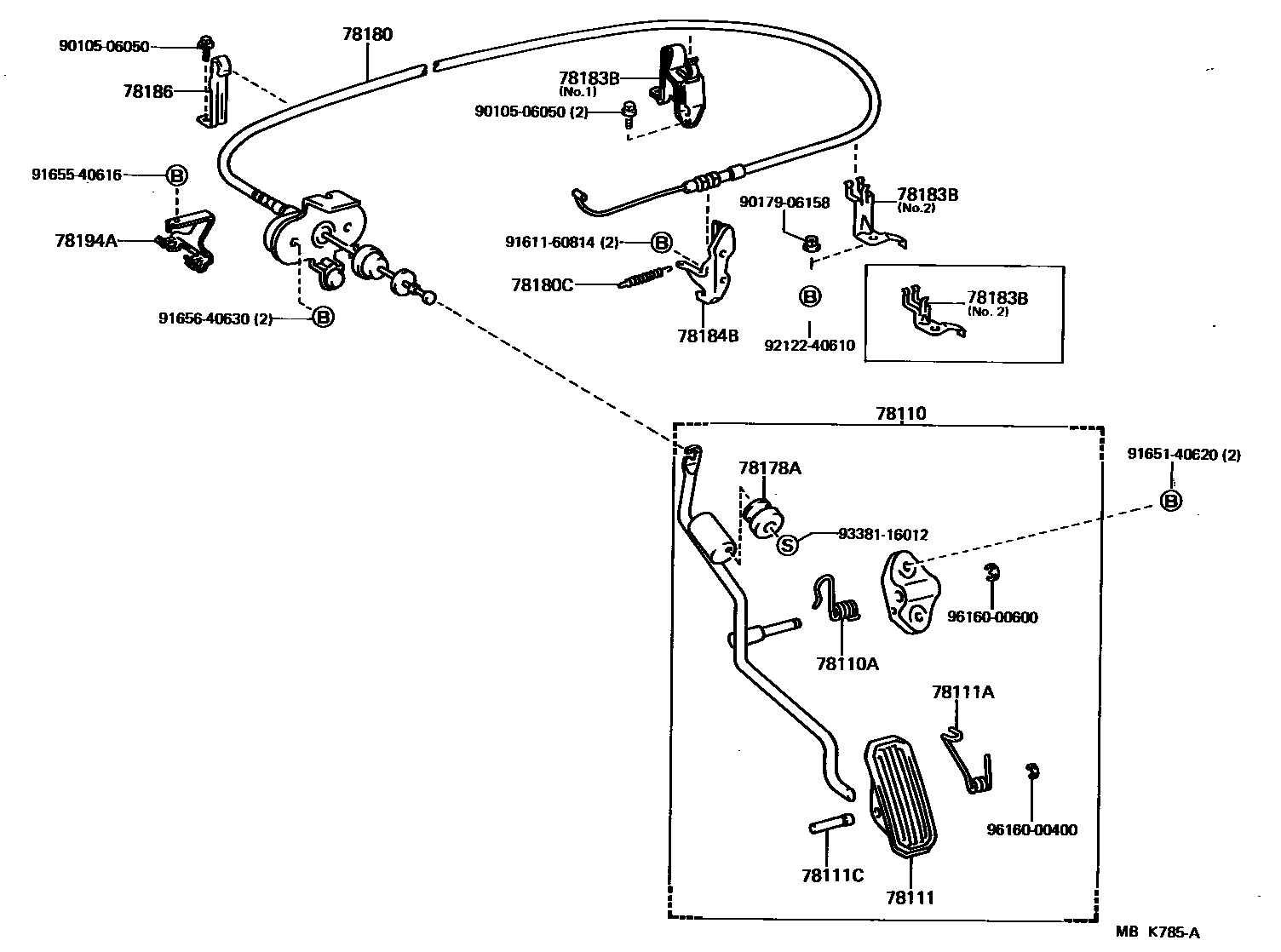

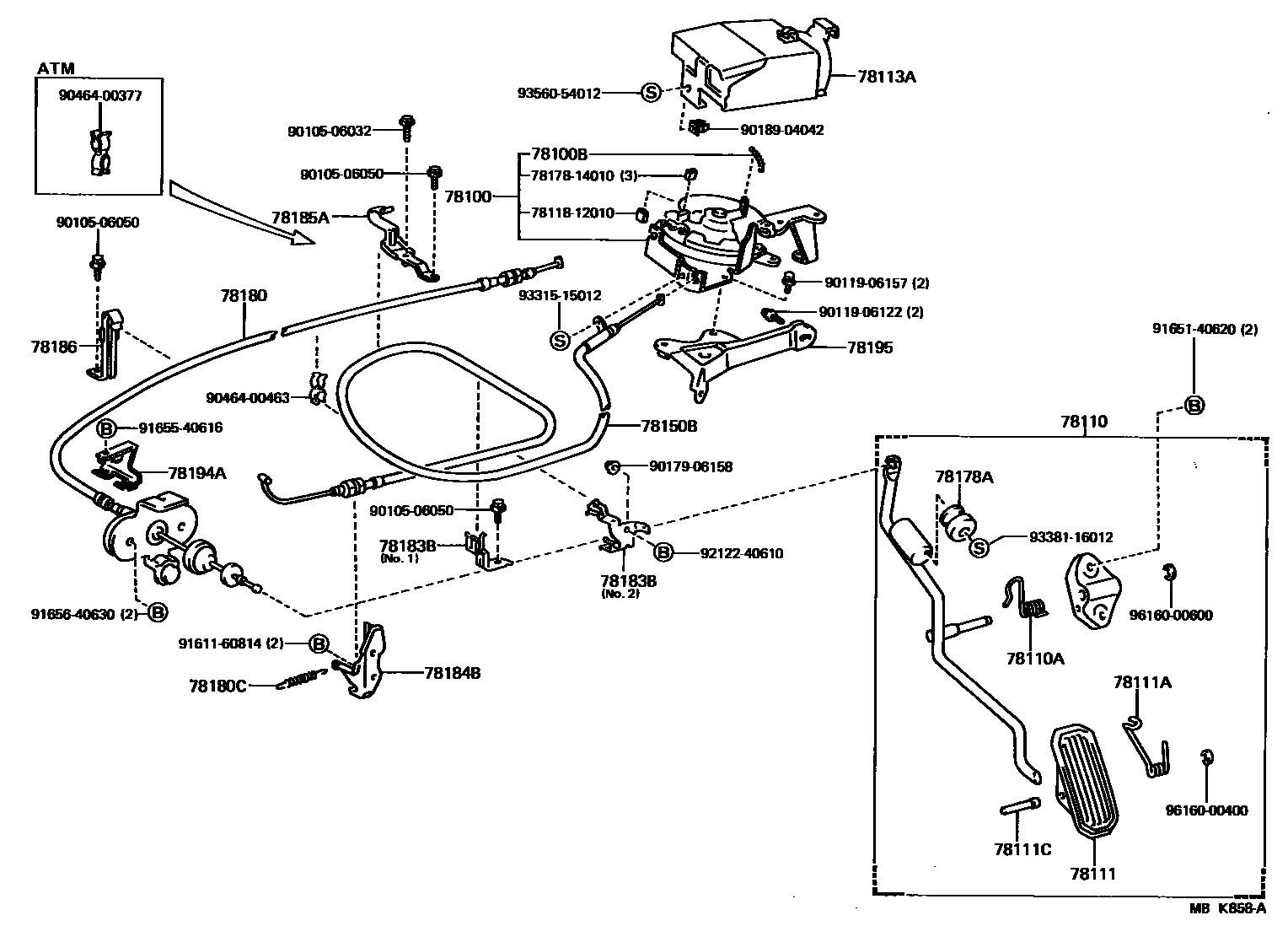

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78100 | Accelerator pedal connecting rod assembly | 78100-02011 |
| 78100B | Spring (for accelerator pedal linkage) | 90506-08019 |
| 78110 | Accelerator pedal lever assembly | 78120-12050 · 78120-12060 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-02010 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-02011 · 78150-02012 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12030 |
| 78180 | Throttle cable assembly | 78180-02010 · 78180-02020 · 78180-12651 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78183B | Accelerator pedal control cable clip | 78183-02011 · 78183-02040 · 78183-02060 · 78183-12080 · 78183-12090 |
| 78184B | Throttle pedal control cable bracket | 78184-12160 · 78184-12190 |
| 78185A | No. 2 accelerator pedal control cable clip | 78185-02020 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-02020 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-01020 · 78194-02010 |
| 78195 | Accelerator pedal connecting rod bracket | 78195-02011 |
