Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 26 PNC and OE references.

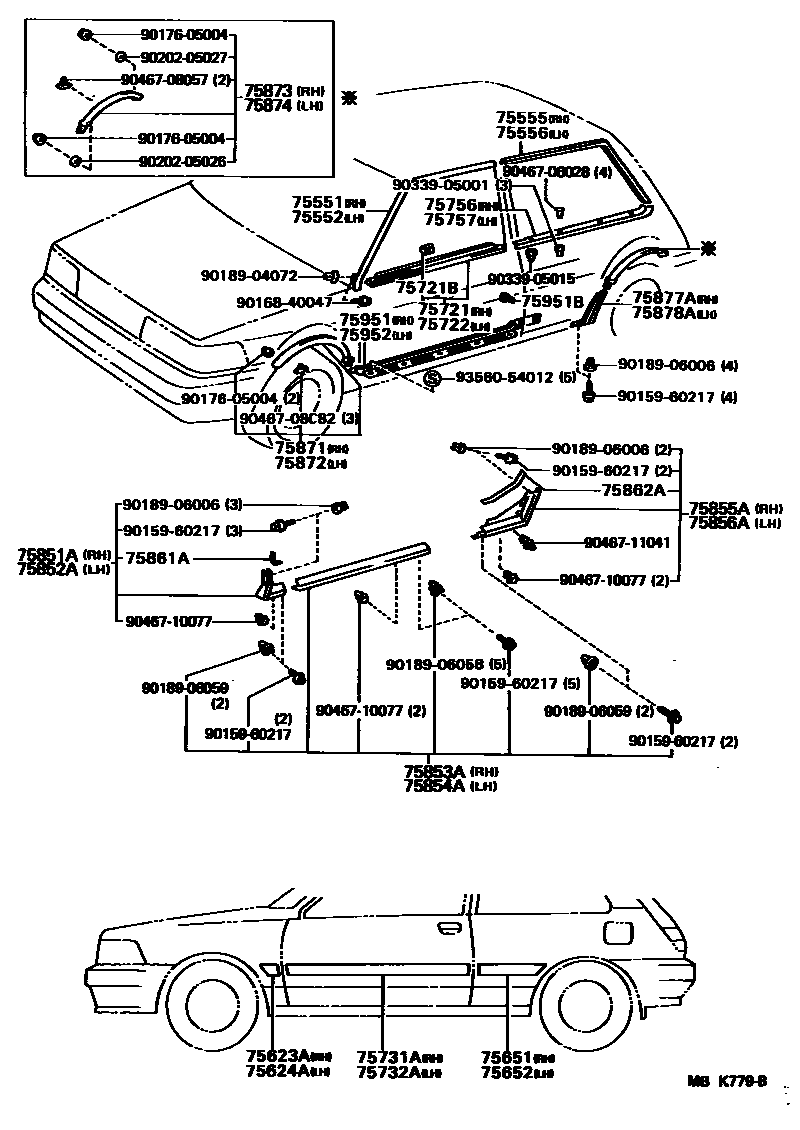

Toyota COROLLA 侧防护条 EPC diagram — MBK779B
侧防护条 — MBK779B (198609 – 198705)

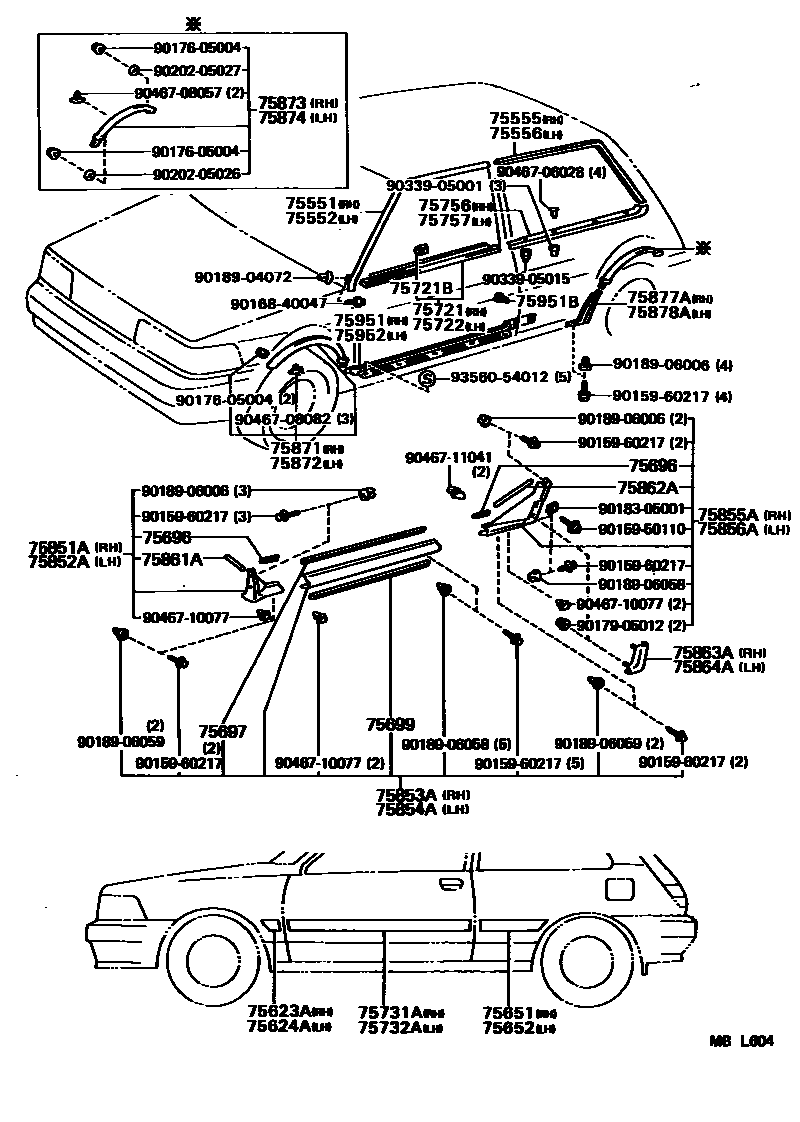

Toyota COROLLA 侧防护条 EPC diagram — MBL604
侧防护条 — MBL604 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
75551Drainage groove side decorative strip on the right side of the roof75551-12330
75552Drainage groove side decorative strip on the left side of the roof75552-12330
75555Decorative strip on the right side of the roof, rear gutter side75055-12040
75556Decorative strip on the left side of the roof, rear gutter side75056-12040
75696No. 1 body outer protective strip lining75696-02010
75697No. 2 body outer protective strip lining75697-02010
75699No. 4 body outer protective strip lining75699-02010
75721Right front door waistline protection strip75710-12391
75721BClip (for front door waistline protective strip assembly)68211-12122
75722Left front door waistline protection strip75720-12391
75756Right corner window decorative strip75660-12181
75757Left corner window decorative strip75670-12191
75851ARight front door sill panel protective strip75851-09011
75852ALeft front door sill panel protective strip75852-09011
75853ARight side door sill panel center protective strip75853-09011
75854ALeft side door sill panel center protective strip75854-09011
75855ARight rear door sill panel protective strip75855-09011
75856ALeft rear door sill panel protective strip75856-09011
75861ANo. 1 door sill panel protective strip protective cover75861-12030
75862ANo. 2 door sill panel protective cover75862-12030
75871Right front fender wheel well protection strip75871-19085
75872Left front fender wheel well protection strip75872-19085
75873Right side panel wheel mouth protection strip75873-09010
75874Left side panel wheel mouth protection strip75874-09010
75877ARight side enclosure opening end cover75877-12010
75878ALeft side enclosure opening end cover75878-12010
