Toyota COROLLA 前防护条 — Figure 7502

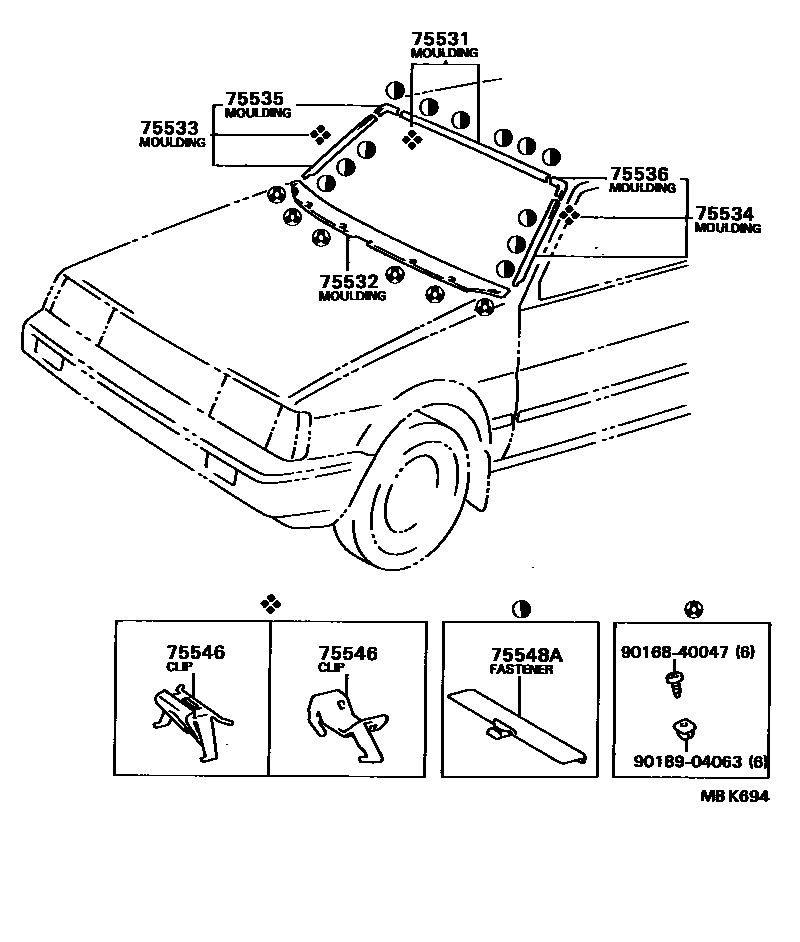

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-12230 |
| 75532 | Lower windshield protection strip | 75535-12190 |
| 75533 | Windshield right outer protective strip | 75533-12250 |
| 75534 | Windshield left outer protective strip | 75534-12180 |
| 75535 | Windshield upper right corner protective strip | 75541-12120 |
| 75536 | Windshield upper left corner protective strip | 75542-12090 |
| 75546 | Windshield outer protective strip clip | 75545-12040 · 75546-12020 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-16010 |
