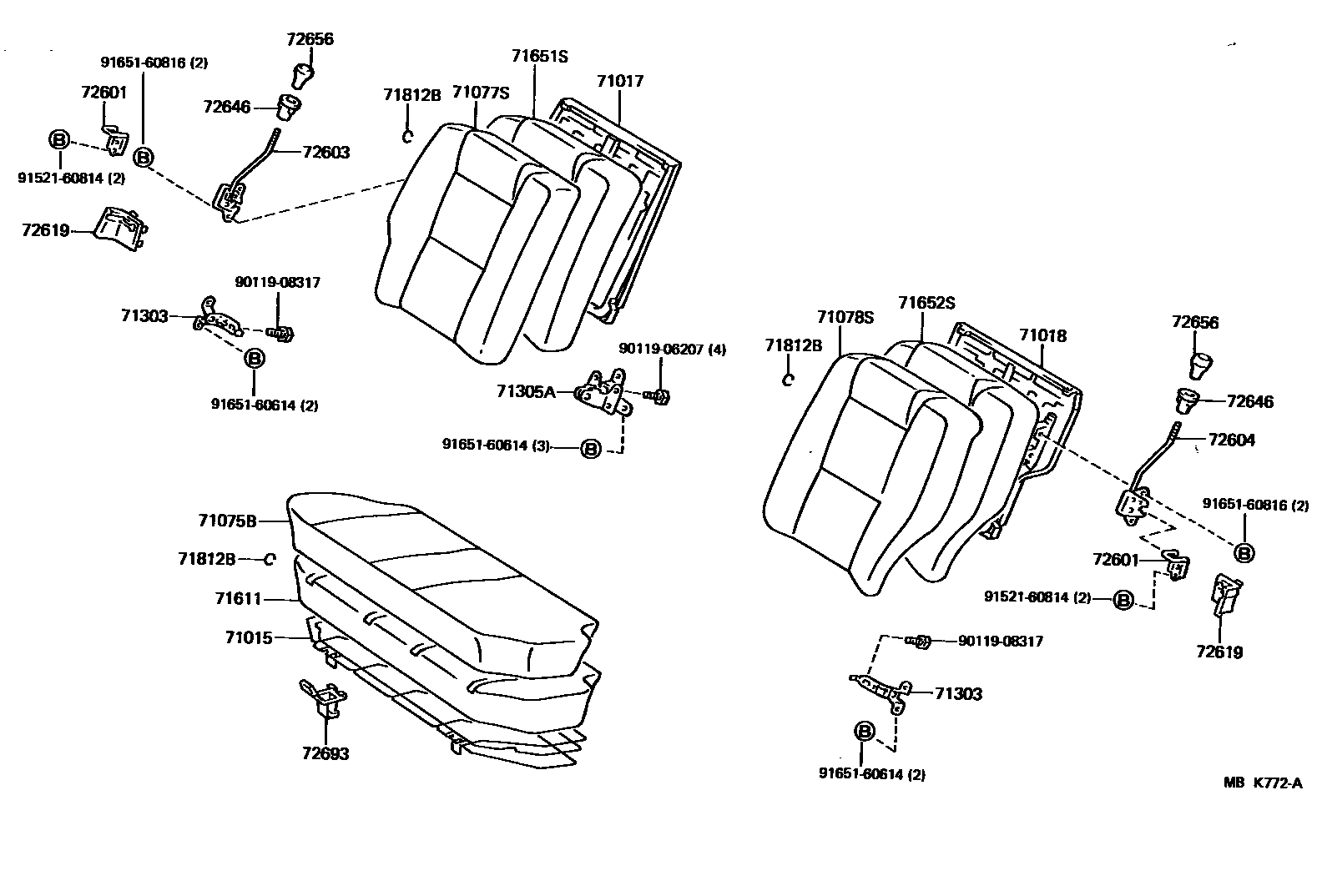

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-01010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-01020 |
| 71018 | Rear left seat back frame sub-assembly | 71018-01020 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12030 |
| 71611 | Rear seat cushion cushion | 71611-01010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-01030 · 71651-02010 · 71652-02010 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-01020 · 71652-02010 |
| 71812B | Clip (for rear seat cushion cover) | 90080-46007 |
| 72601 | Rear seat lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12120 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12110 |
| 72693 | Rear seat cushion hook | 72693-01010 |
