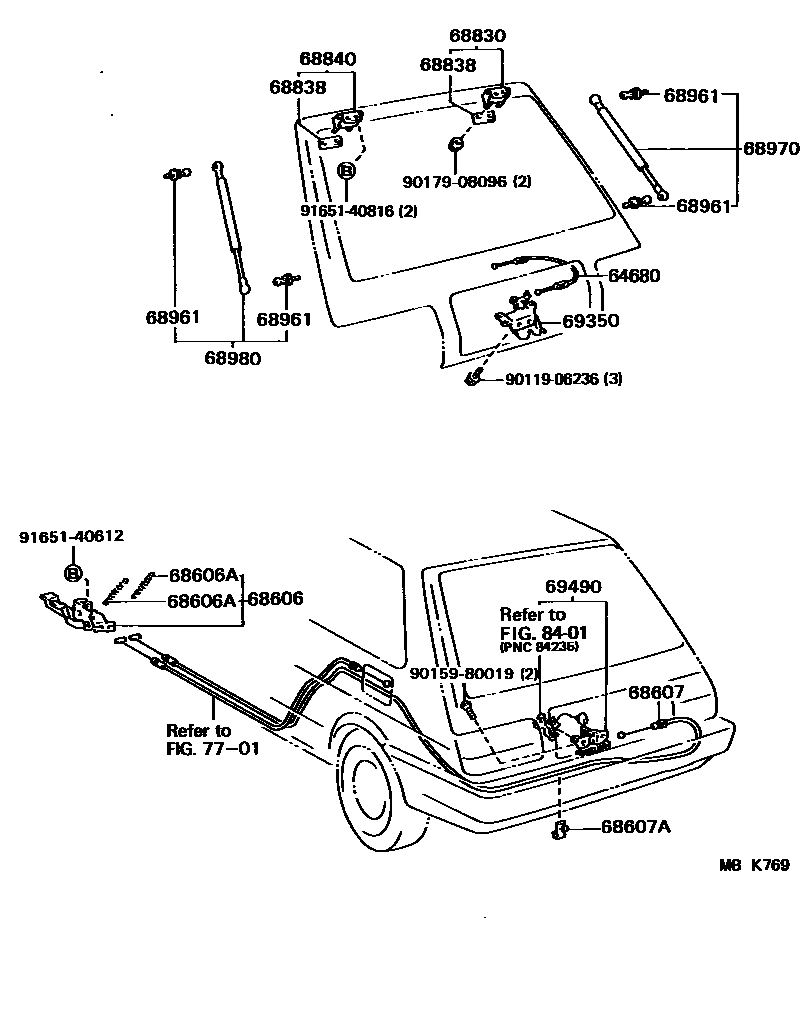

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64680 | Rear door lock control cable assembly | 64680-02010 |
| 68606 | Rear door lock opening lever sub-assembly | 64606-12050 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-02010 |
| 68607A | Clip No. 1 (for rear door lock control cable) | 69749-12010 |
| 68830 | Back door right hinge assembly | 68801-12020 |
| 68838 | Back door hinge No. 1 gasket | 68838-14021 |
| 68840 | Back door left hinge assembly | 68801-12020 |
| 68961 | Rear door support rod bolts | 68961-16010 |
| 68970 | Back door right support rod assembly | 68950-19545 |
| 68980 | Back door support rod assembly | 68950-19545 |
| 69350 | Rear door lock assembly | 69350-02010 |
| 69490 | Back door lock assembly | 69430-02010 |
