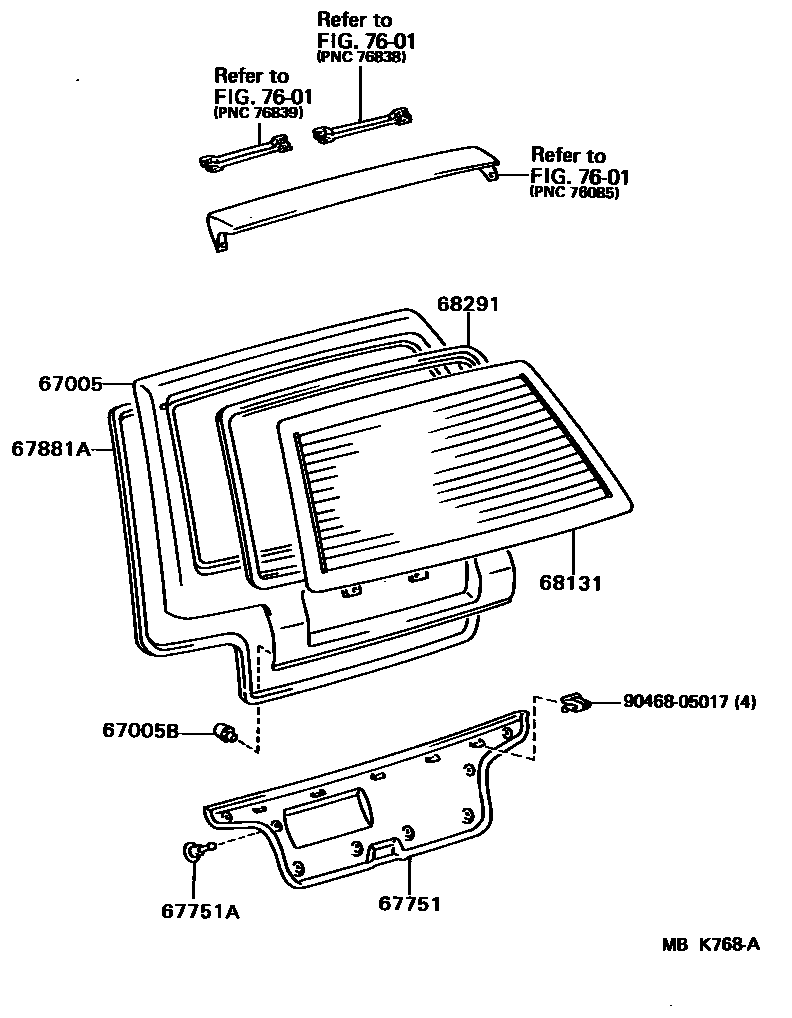

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67005 | Rear door panel sub-assembly | 67005-02010 · 67005-02020 · 67005-02030 |
| 67005B | Cushion pad (for back door panel) | 90541-09037 · 90541-09041 |
| 67881A | Back door seal | 67881-12110 |
| 68131 | back door glass | 68105-02010 |
| 68291 | Rear door glass seal strip | 68291-12110 |
