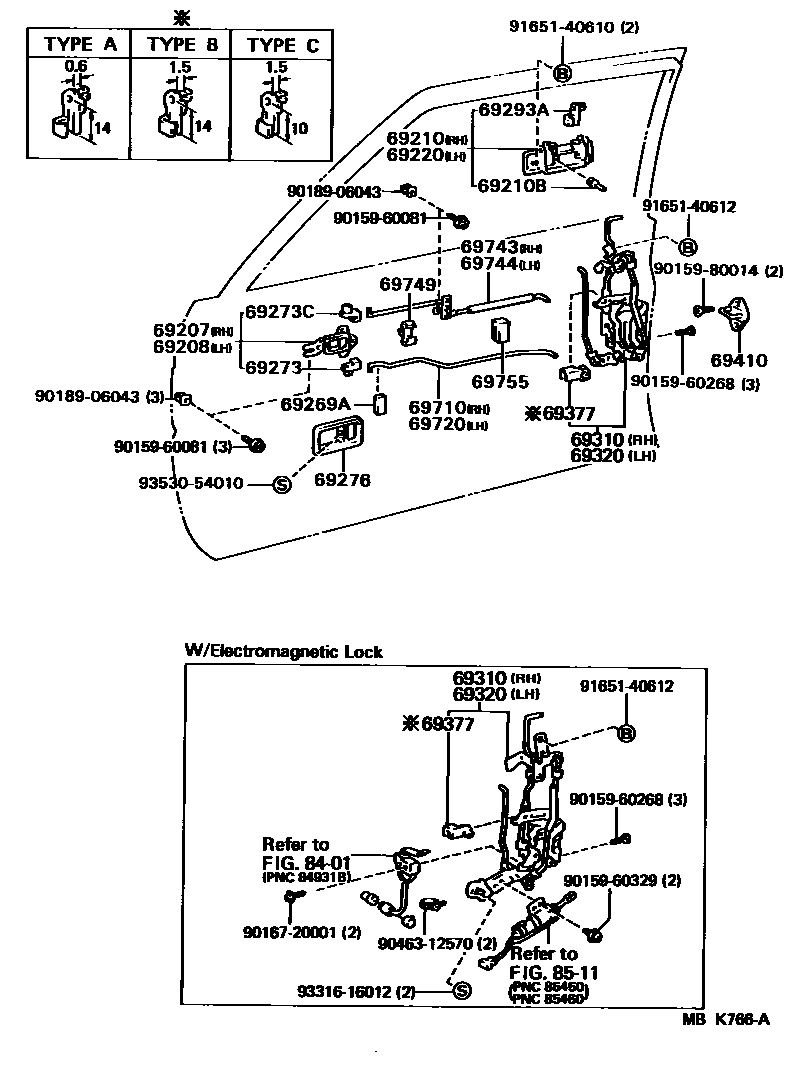

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 |
| 69269A | Door No. 1 inner handle seal (for front door) | 69289-12010 |
| 69273 | Inner door handle lever buckle | 69759-20060 · 69759-20070 |
| 69273C | Car door inner handle link buckle | 69759-20060 · 69759-20070 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-02010 · 69310-02011 · 69310-02020 · 69310-02021 |
| 69320 | Left front door lock assembly | 69320-02010 · 69320-02011 · 69320-02020 · 69320-02021 |
| 69377 | Front door lock control link buckle | 69759-20020 · 69759-20030 · 69759-20040 · 69759-20050 · 69759-20100 · 69759-20110 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69711-12090 |
| 69720 | Left front door opening control linkage assembly | 69712-12100 |
| 69743 | Right front door lock control link No. 1 | 69750-02011 |
| 69744 | Left front door No. 1 locking control link | 69760-02011 |
| 69749 | Front door lock link clip | 69749-12040 |
| 69755 | Front door lock link silencer | 69759-14010 |
