Toyota COROLLA 前门板和前门玻璃 — Figure 6701

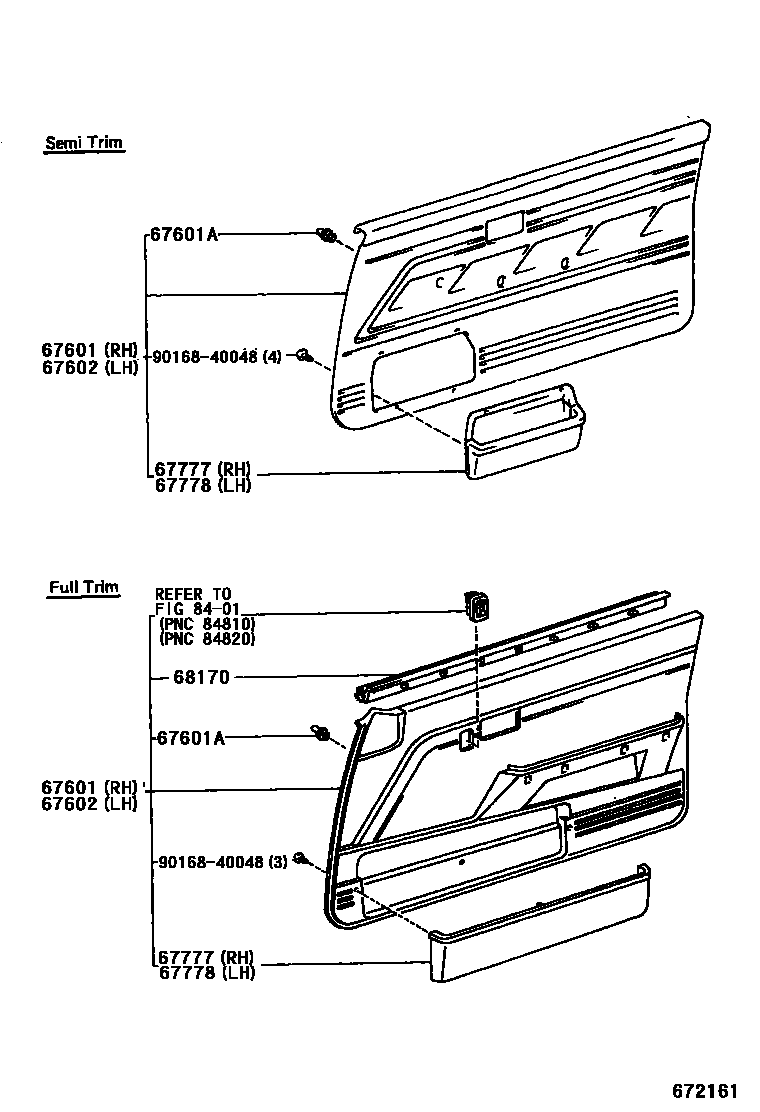

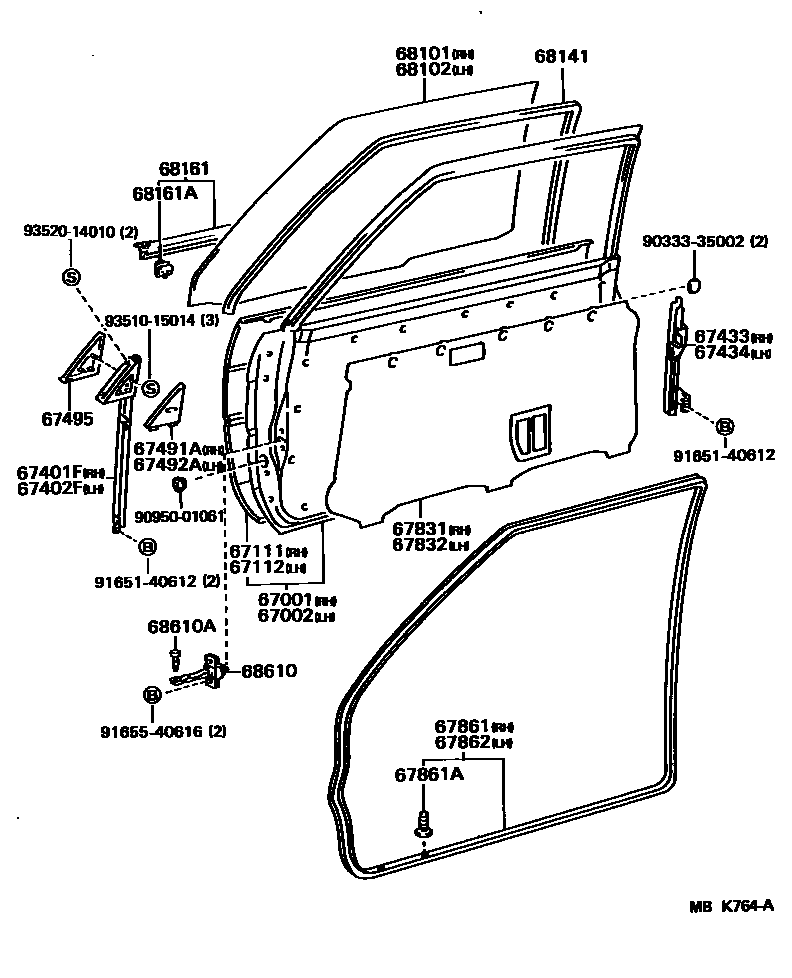

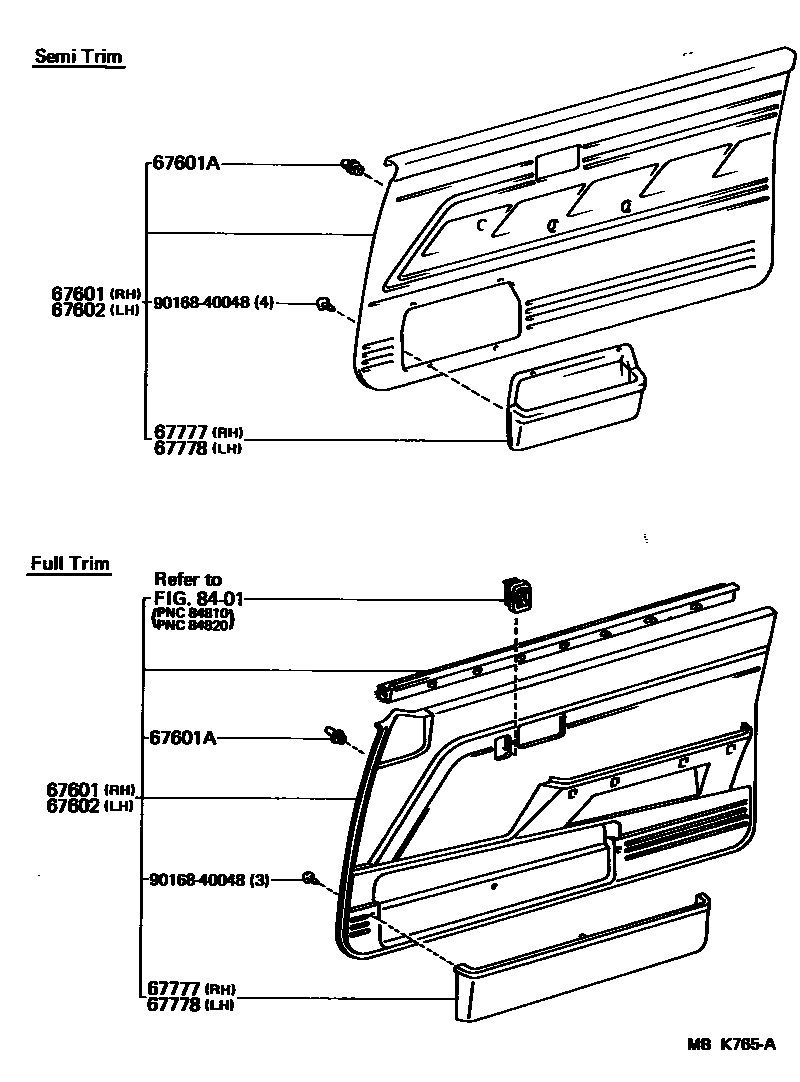

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02010 |
| 67002 | Left front door panel sub-assembly | 67002-02010 |
| 67111 | Outer right front door panel | 67111-12431 |
| 67112 | Outer left front door panel | 67112-12421 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12251 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12271 |
| 67433 | Right front door window rear lower frame | 67403-02010 |
| 67434 | Left front door window rear lower frame | 67404-02010 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12131 · 67491-12141 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12141 · 67492-12151 |
| 67495 | Front door lower door frame upper cover | 67495-12100 · 67495-12110 |
| 67601A | Fixings (for front door trim) | 67771-12010 |
| 67831 | Right front door access hole cover | 67831-02010 |
| 67832 | Left front door access hole cover | 67832-02010 |
| 67861 | Right front door seal | 67861-12580 · 67861-12581 |
| 67861A | Fixing piece (for front door sealing strip) | 67868-30040 |
| 67862 | Left front door seal | 67862-12560 · 67862-12561 |
| 68101 | Right front door glass sub-assembly | 68111-02010 |
| 68102 | Left front door glass sub-assembly | 68112-02010 |
| 68141 | Front door glass lift chute | 68141-12240 |
| 68161 | Front door glass outer seal strip | 68160-12151 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12122 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12100 |
| 68610 | Front door opening limiter assembly | 68610-12030 |
| 68610A | Pin (for front door opening limiter) | 68617-90A00 |
