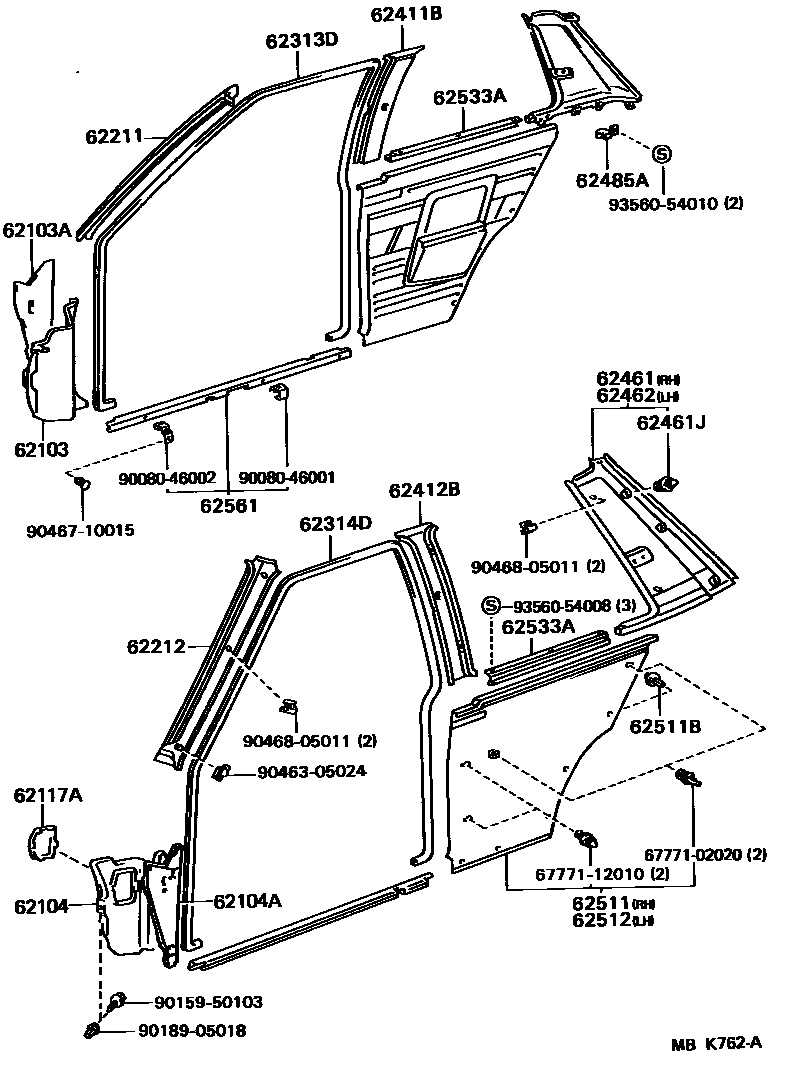

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103A | Right front wall side heat insulation pad sub-assembly | 62105-01010 |
| 62104A | Left front wall side heat insulation pad sub-assembly | 62106-01010 |
| 62461J | Roof side trim trim fixings | 67771-02020 |
| 62485A | Roof side interior panel fixings | 62485-12050 |
| 62533A | Side decorative panel clip bracket | 62533-12110 |
| 62561 | Front door inner sill protection strip | 62561-02010 · 62562-02010 |
