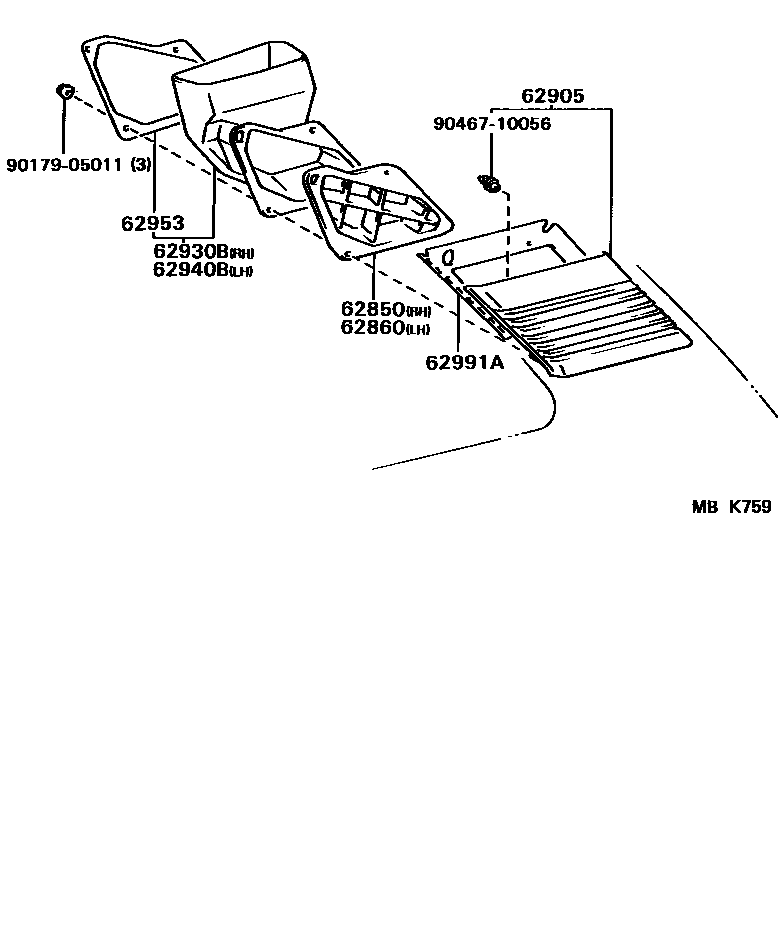

Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-12060 |
| 62860 | Left compartment pressure reducing valve assembly | 62860-12060 |
| 62905 | Side ventilation grilles | 62905-12260 · 62906-12260 |
| 62930B | Right side ventilation duct assembly | 62931-12190 |
| 62940B | Left side ventilation duct assembly | 62932-12190 |
| 62953 | Side ventilation duct No. 1 seal | 62957-12080 |
| 62991A | Side ventilation grille lining | 62991-12080 |
