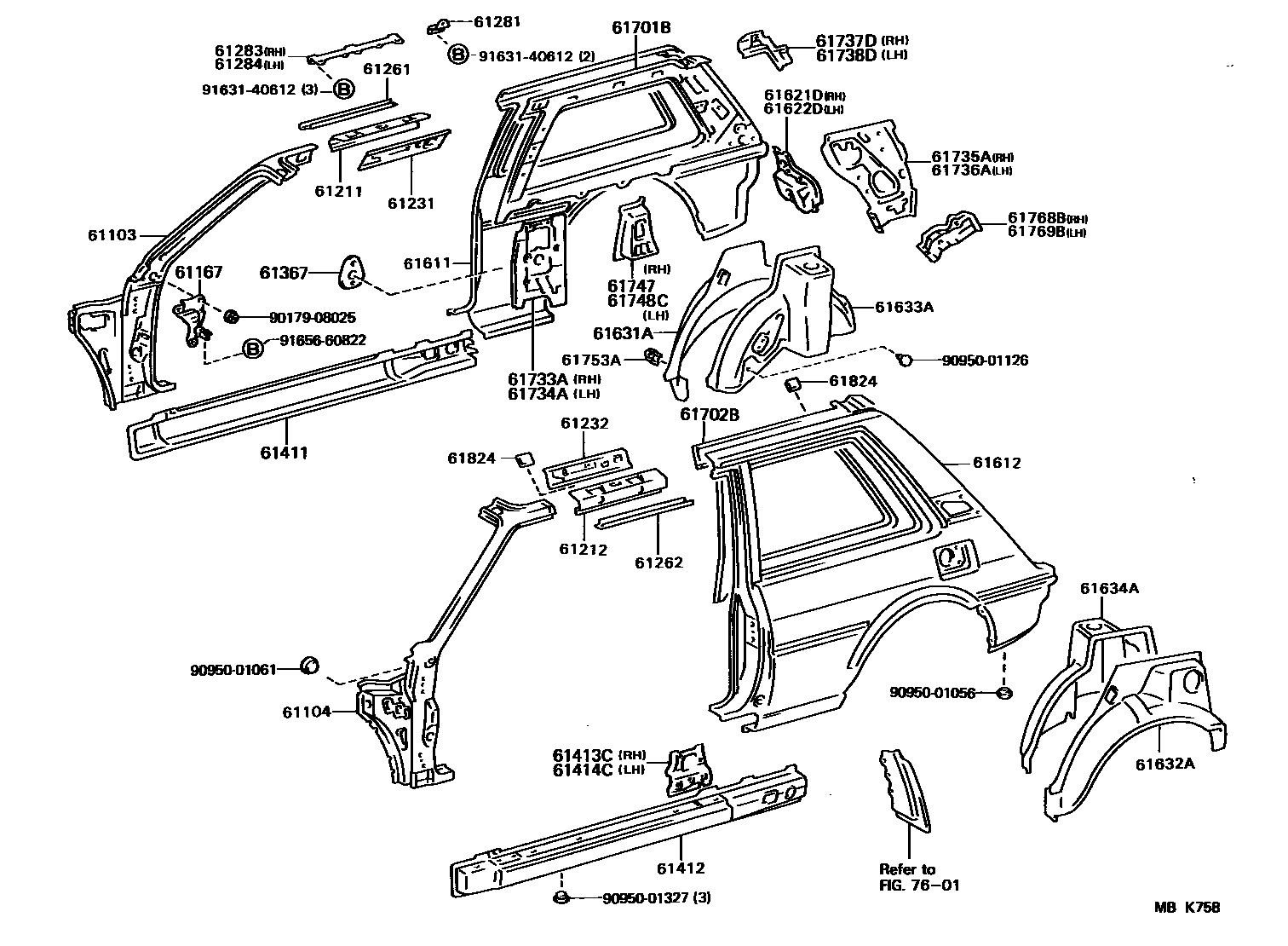

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61103 | Right body front pillar sub-assembly | 61021-02010 |
| 61104 | Left body front pillar sub-assembly | 61022-02010 |
| 61167 | Dashboard to right front wall side bracket | 61035-12030 |
| 61211 | Roof right outer longitudinal beam | 61211-12210 |
| 61212 | Roof left outer longitudinal beam | 61212-12210 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12570 |
| 61232 | Roof left inner longitudinal beam | 61232-12420 |
| 61261 | Drainage channel on the right side of the roof | 61265-12090 |
| 61262 | Drainage channel on the left side of the roof | 61266-12090 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-12020 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-12020 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-12020 |
| 61367 | Seat belt anchors to center pillar lower reinforcement | 61367-14010 |
| 61411 | Right door outer sill panel | 61401-02010 · 61401-02020 |
| 61412 | Left door outer sill panel | 61402-02010 · 61402-02020 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-02010 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-02010 |
| 61611 | Right side hoarding | 61601-02900 · 61601-02901 |
| 61612 | left side panel | 61602-02900 · 61602-02901 |
| 61621D | Back door right opening slot | 61621-12900 |
| 61622D | Rear door left opening slot | 61622-12900 |
| 61631A | Right wheel cover outer panel | 61631-12180 |
| 61632A | Left side wheel cover outer panel | 61632-12180 |
| 61633A | Right wheel housing lining panel | 61607-12902 |
| 61634A | Left side wheel housing lining panel | 61608-12902 |
| 61701B | Roof right inner upper panel sub-assembly | 61701-02010 |
| 61702B | Roof left inner upper panel sub-assembly | 61702-02010 |
| 61733A | Right front roof inner panel | 61733-02010 |
| 61734A | Left front roof inner panel | 61734-02010 |
| 61735A | Right rear roof inner panel | 61735-12230 |
| 61736A | Left rear roof inner panel | 61736-12200 |
| 61737D | Roof right inner reinforcement | 61737-02010 |
| 61738D | Roof left inner reinforcement | 61738-02010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12080 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12080 |
| 61753A | Side panel lower fixings | 61753-16010 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-12110 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-12080 |
| 61824 | Noise Control Panel No. 1 | 61824-01010 |
