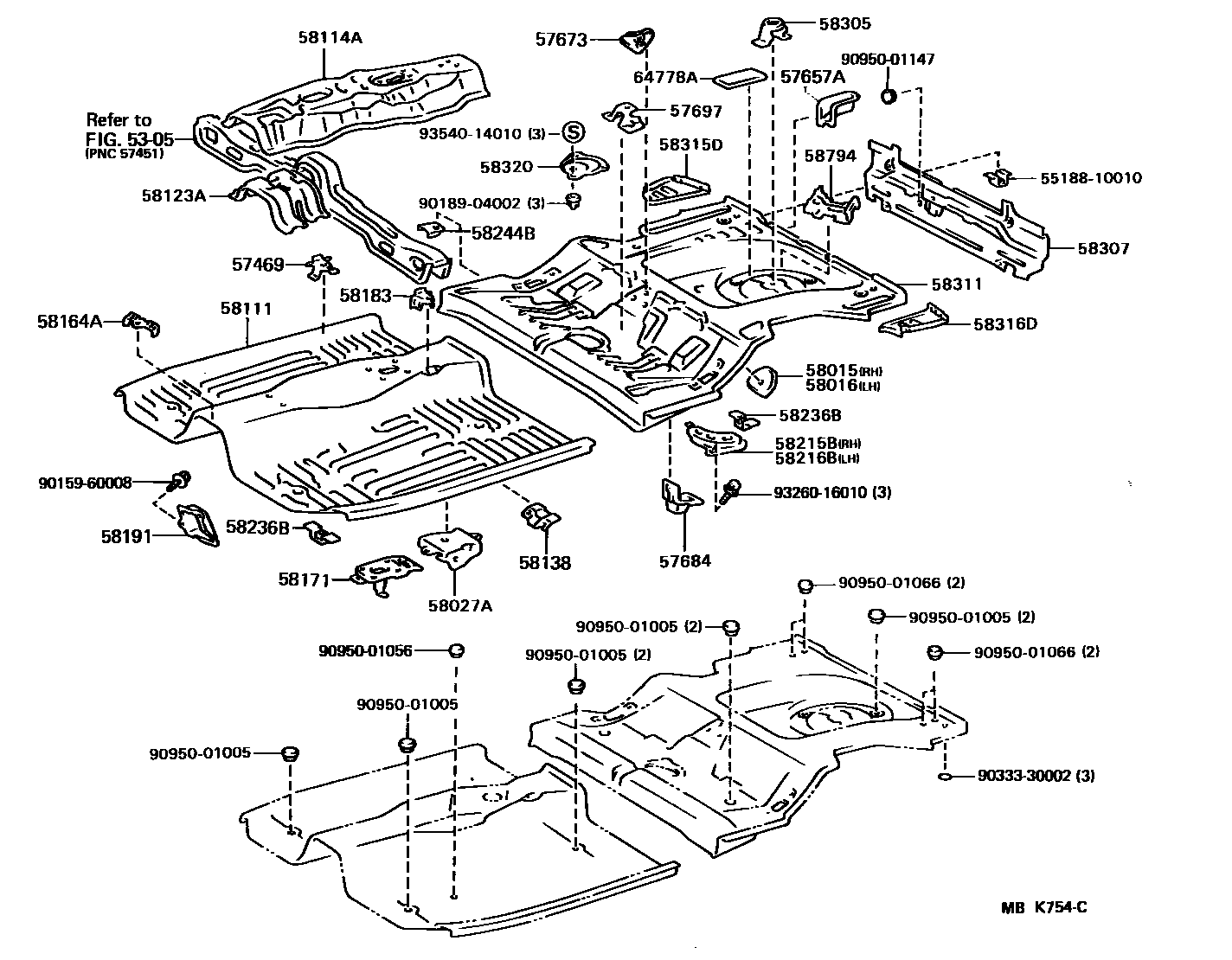

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57469 | Front seat outer bracket | 57468-12010 · 57469-12010 |
| 57657A | No. 2 exhaust pipe mounting bracket | 57657-16010 |
| 57673 | Rear seat back hinge mounting bracket | 57607-12020 |
| 57684 | fuel tank rear bracket | 57686-16011 · 57687-16011 |
| 57697 | Rear seat cushion fixings | 57697-16010 |
| 58015 | Right seat belt anchor to floor pan reinforcement | 58015-12010 |
| 58016 | Left-hand seat belt anchor to floor pan reinforcement | 58015-12010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12020 |
| 58111 | front floor pan | 58111-01011 |
| 58114A | front floor reinforcement | 58114-12020 |
| 58123A | shift lever bracket | 58013-12010 |
| 58138 | Front floor No. 4 insulation pad bracket | 58134-12010 |
| 58164A | Armrest box installation fixing bracket | 58164-12020 |
| 58171 | Parking brake base reinforcement | 58107-12010 |
| 58183 | Front seat inner mounting bracket | 58183-12060 · 58184-12080 |
| 58191 | Front floor footrest | 58192-01010 |
| 58215B | Rear right seat mounting bracket | 58215-16010 |
| 58216B | Rear left seat mounting bracket | 58216-16010 |
| 58236B | Central floor insulation pad bracket | 58236-14010 |
| 58244B | Rear seat cushion mounting bracket | 58244-16030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-02010 |
| 58311 | rear floor pan | 58311-16050 |
| 58315D | Rear floor pan right extension | 58315-12020 |
| 58316D | Rear floor pan left extension | 58316-12020 |
| 58320 | Rear floor access hole cover | 58325-16020 |
| 58794 | jack bracket | 58791-12090 |
| 64778A | Spare tire protection device | 64759-16030 · 64778-12020 |
