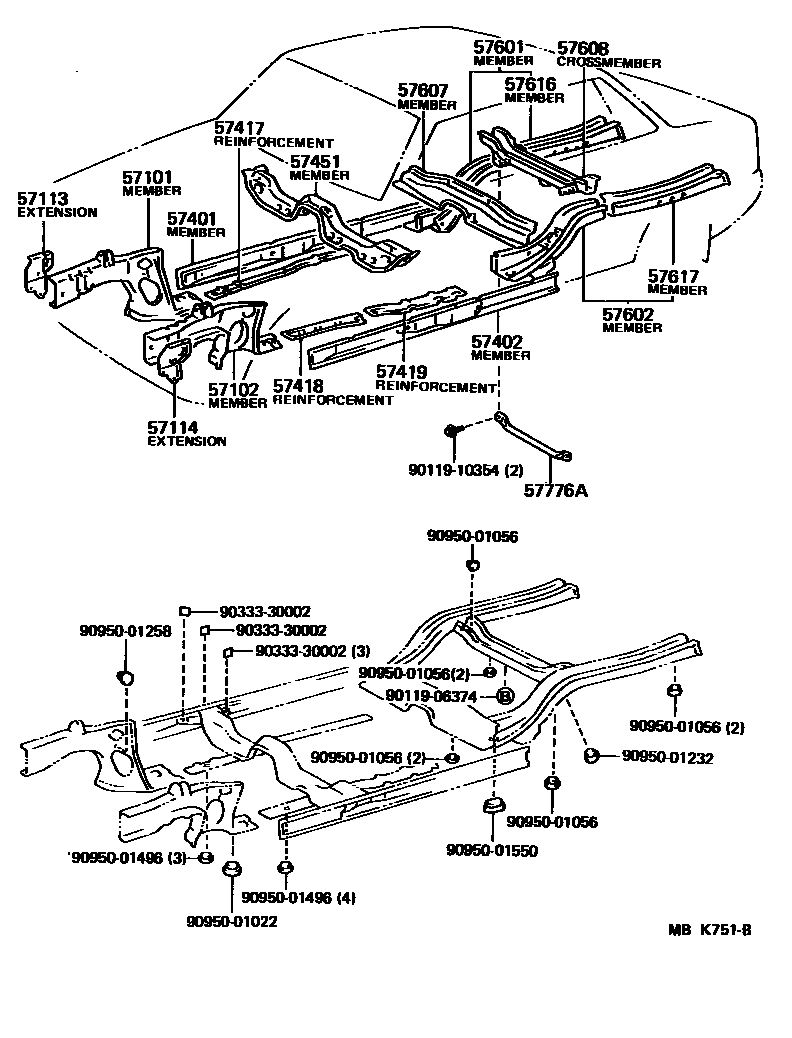

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-01011 · 57101-02011 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-01010 · 57102-02010 |
| 57113 | Right front longitudinal beam extension | 57105-01011 · 57105-12030 |
| 57114 | Left front longitudinal beam extension | 57106-01011 · 57106-12030 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-02010 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-02010 |
| 57417 | Front floor lower right reinforcement | 57417-12070 |
| 57418 | Front floor lower left reinforcement | 57418-20040 |
| 57419 | Front floor No. 2 lower left reinforcement | 57419-12020 |
| 57451 | front floor cross member | 57408-01010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02010 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02010 |
| 57607 | Rear floor No. 1 cross member sub-assembly | 57605-12060 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57606-12070 |
| 57616 | Rear floor right rear longitudinal member | 57615-02900 |
| 57617 | Rear floor left rear longitudinal member | 57616-02900 |
| 57776A | Rear lower arm bracket | 57776-12010 |
