Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

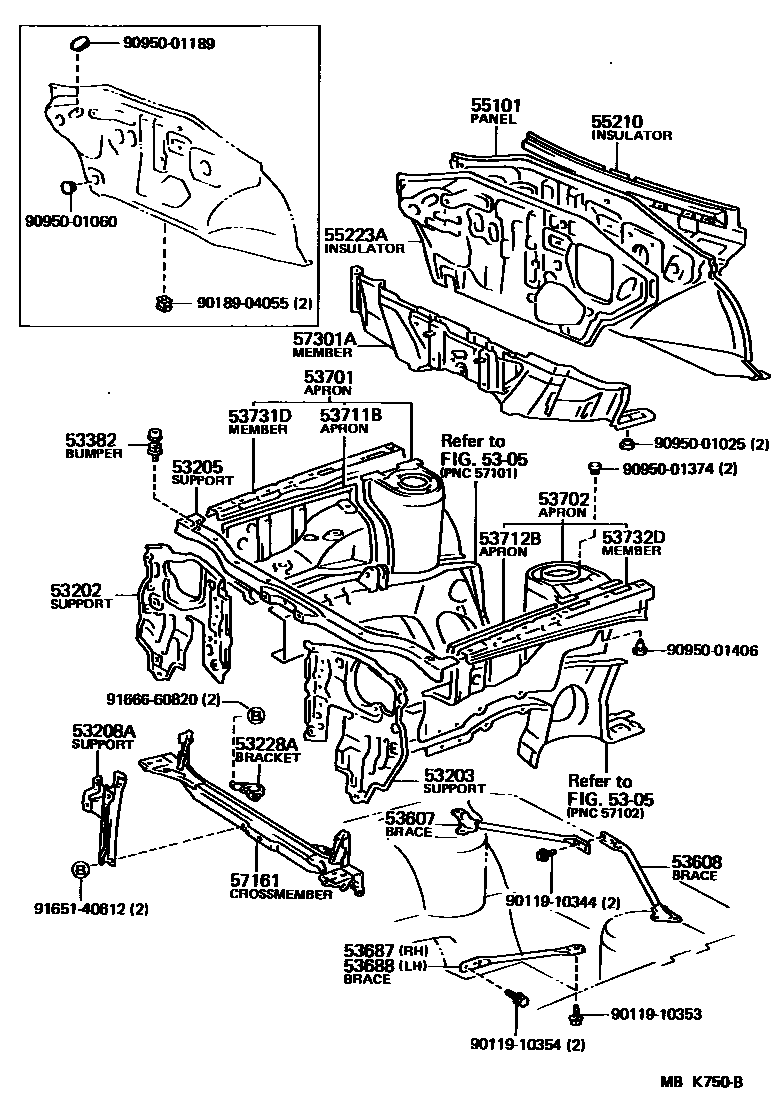

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53211-12251 |
| 53203 | Radiator left bracket sub-assembly | 53203-12220 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12926 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12310 |
| 53228A | Radiator No. 1 lower mounting bracket | 53228-02010 |
| 53382 | Engine cover front buffer block | 53382-12050 |
| 53607 | Front suspension upper side to right front wall bracket sub-assembly | 53607-02010 |
| 53608 | Front suspension upper side to left front wall bracket sub-assembly | 53608-02010 |
| 53687 | Right side bracket (underside of front suspension to steering beam) | 53687-12010 |
| 53688 | Left side bracket (underside of front suspension to steering beam) | 53688-12010 |
| 53701 | Right front fender fender sub-assembly | 53701-01010 |
| 53702 | Left front fender fender sub-assembly | 53702-01010 |
| 53711B | Right front fender front fender | 53711-12180 |
| 53712B | Left front fender front fender | 53712-12160 |
| 53731D | Right front fender to cowl side upper beam | 53731-12111 |
| 53732D | Left front fender to cowl side upper beam | 53732-12101 |
| 55101 | Front apron sub-assembly | 55101-01010 · 55101-01020 · 55101-02010 · 55101-02020 |
| 55210 | Front wall insulation pad assembly | 55210-12330 |
| 55223A | Front wall outer heat insulation pad | 55223-12040 |
| 57161 | front cross member | 57161-02900 |
| 57301A | Steering housing support beam sub-assembly | 57301-01010 · 57301-02010 |
