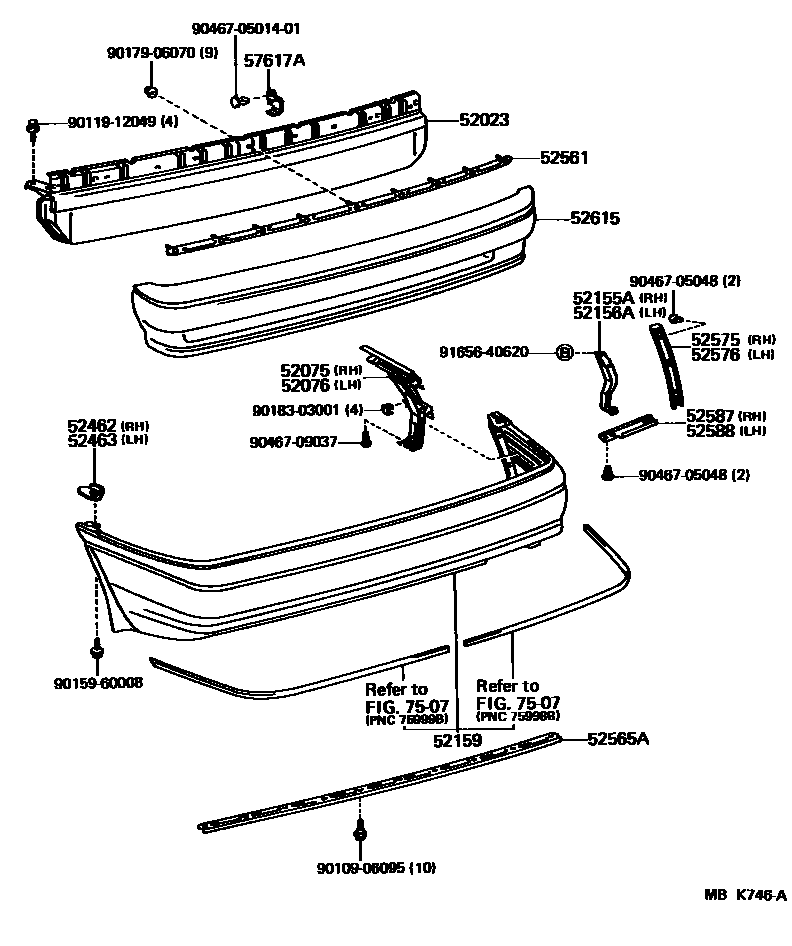

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02010 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-02010 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-02010 |
| 52155A | Rear bumper right side bracket | 52155-02010 |
| 52156A | Rear bumper left bracket | 52156-02010 |
| 52159 | rear bumper cover | 52159-02900 |
| 52462 | Rear bumper right side lining | 52462-02010 |
| 52463 | Rear bumper left lining | 52463-02010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-02010 |
| 52565A | Rear bumper lower fixing bracket | 52565-02010 |
| 52575 | Rear bumper right side fixing bracket | 52575-02010 |
| 52576 | Rear bumper left side fixing bracket | 52575-02010 |
| 52587 | Rear bumper right end fixing bracket | 52587-02010 |
| 52588 | Rear bumper left end fixing bracket | 52588-02010 |
| 52615 | Rear bumper energy absorber | 52615-02010 |
| 57617A | Exhaust pipe bracket fixing parts | 57617-02010 |
