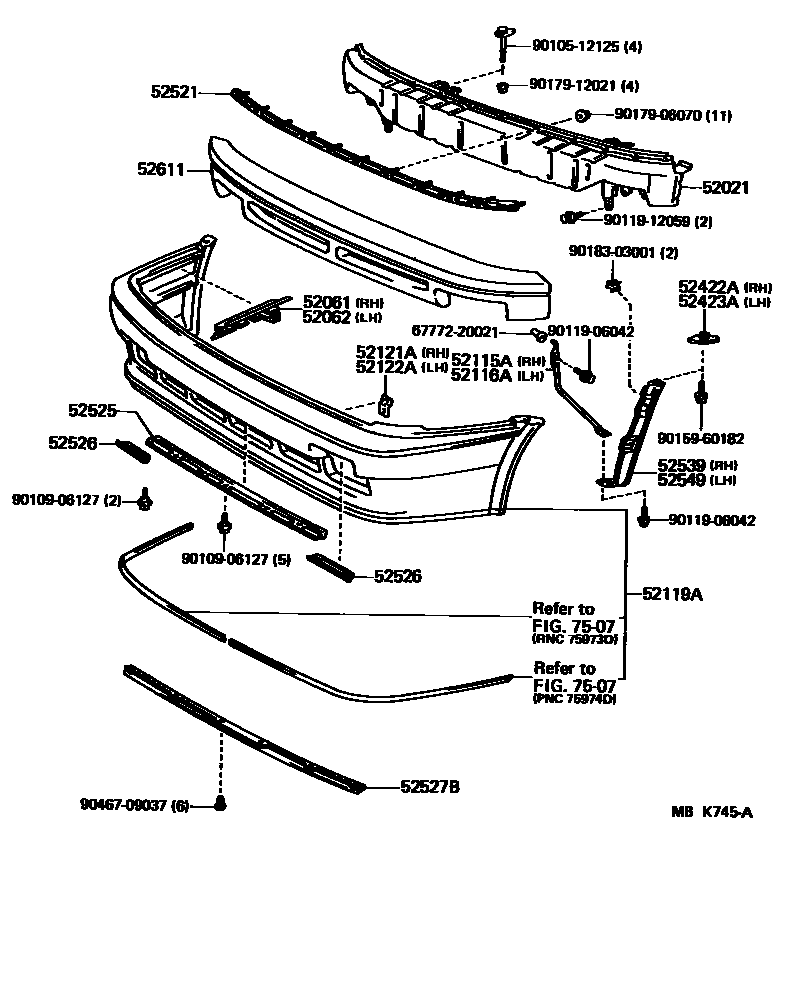

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02010 |
| 52061 | Front bumper right side bracket sub-assembly | 52061-02010 |
| 52062 | Front bumper left bracket sub-assembly | 52062-02010 |
| 52115A | Front bumper right side bracket | 52115-02010 |
| 52116A | Front bumper left bracket | 52116-02010 |
| 52119A | front bumper cover | 52119-02900 |
| 52121A | Front license plate right mounting bracket | 52121-02010 |
| 52122A | Front license plate left mounting bracket | 52121-02010 |
| 52422A | Front bumper right side lining | 52422-02010 |
| 52423A | Front bumper left lining | 52423-02010 |
| 52521 | Front bumper upper center fixing bracket | 52521-02010 |
| 52525 | Front bumper lower center fixing bracket | 52525-02020 |
| 52526 | Front bumper lower side fixing bracket | 52526-12010 |
| 52527B | Front bumper No. 2 lower fixing bracket | 52527-02010 |
| 52539 | Front bumper No. 3 right side fixing bracket | 52539-02010 |
| 52549 | Front bumper No. 3 left side fixing bracket | 52549-02010 |
| 52611 | front bumper energy absorber | 52611-02010 |
