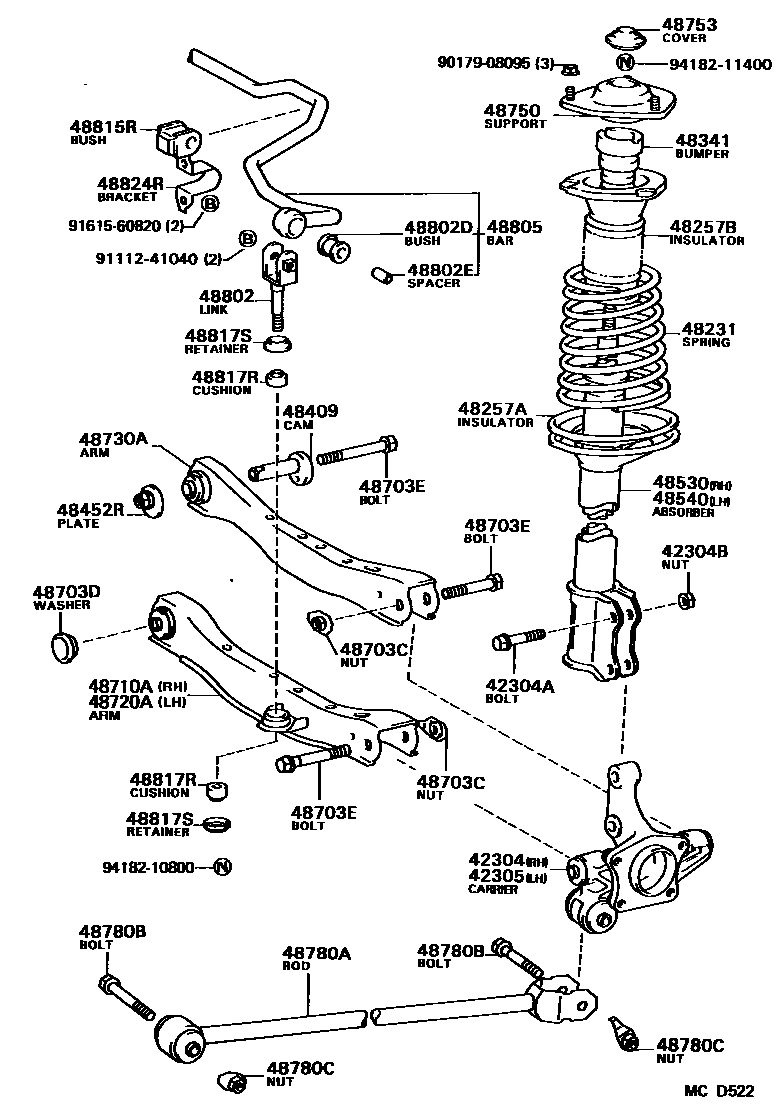

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-12030 |
| 42304A | Bolts (for rear axle bracket) | 90105-12102 |
| 42304B | Nut (for rear axle bracket) | 90179-12025 |
| 42305 | Rear axle left bracket sub-assembly | 42305-12030 |
| 48231 | rear coil spring | 48231-12360 · 48231-12610 |
| 48257A | Rear coil spring lower vibration isolation pad | 48258-01010 |
| 48257B | Rear coil spring upper vibration isolation pad | 48257-01010 |
| 48341 | Rear spring buffer block | 48341-12091 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-32010 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32010 |
| 48530 | Right rear shock absorber assembly | 48530-12020 · 48530-12080 |
| 48540 | Left rear shock absorber assembly | 48530-12080 · 48540-12020 |
| 48703C | Nut (for rear suspension arm) | 90179-12023 · 90179-12028 · 90179-12033 |
| 48703D | Washers (for rear suspension arms) | 90209-13005 |
| 48703E | Bolts (for rear suspension arms) | 90105-10052 · 90105-12037 · 90105-12038 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-16011 · 48710-16021 · 48710-32021 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-16011 · 48710-32021 · 48720-16021 |
| 48730A | Rear suspension No. 2 arm assembly | 48730-32011 |
| 48750 | Rear suspension support assembly | 48750-12020 · 48750-12040 |
| 48753 | Rear suspension mount cover | 48753-01010 |
| 48780A | Rear support rod assembly | 48780-12030 |
| 48780B | Bolts (for support rods) | 90105-12035 |
| 48780C | Nut (for support rod) | 90179-12023 · 90179-12033 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-32010 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11021 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-12040 |
| 48815R | Rear stabilizer bar bushing | 48818-12040 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12010 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02024 |
| 48824R | Rear stabilizer bar bracket | 48832-12020 |
