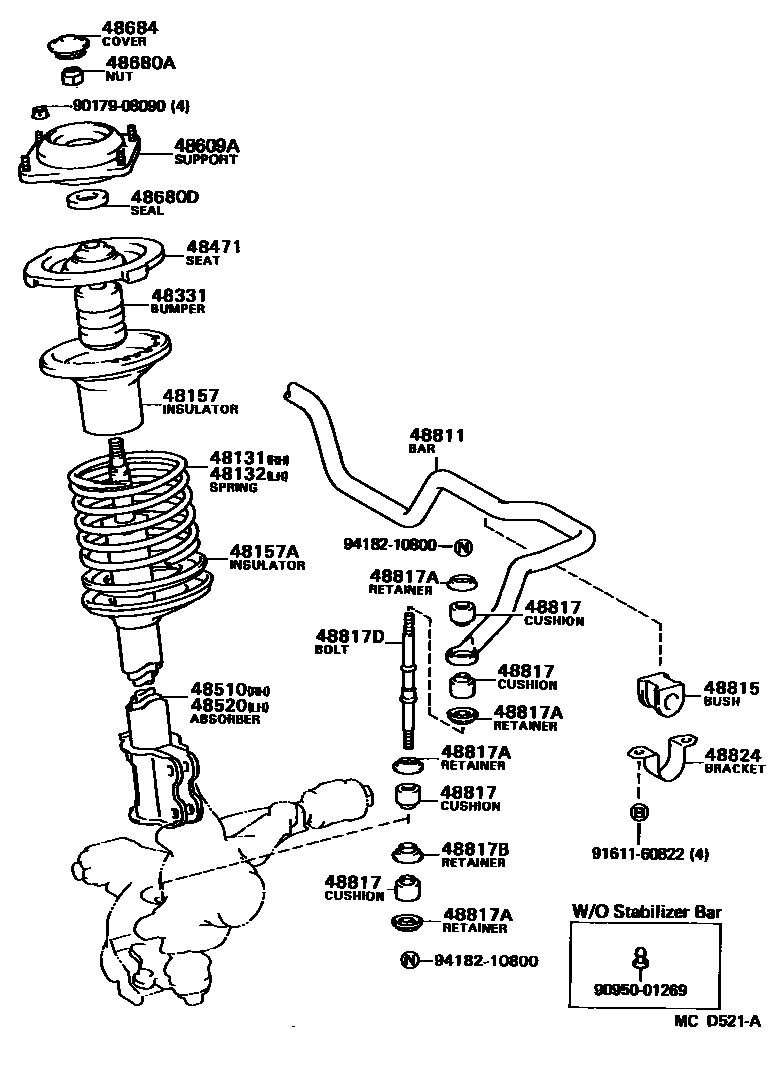

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02010 · 48131-02020 · 48131-02030 · 48131-1E310 · 48131-1E520 · 48131-1E590 |
| 48132 | Left front coil spring | 48131-02010 · 48131-02020 · 48131-02030 · 48131-1E310 · 48131-1E520 · 48131-1E590 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-01010 · 48157-02010 |
| 48157A | Front coil spring lower vibration isolation pad | 48158-01010 · 48158-02010 · 48158-12030 |
| 48331 | No. 1 front spring buffer block | 48331-12100 · 48331-20040 |
| 48471 | Front spring seat | 48044-01010 · 48044-32010 |
| 48510 | Right front shock absorber assembly | 48510-01010 · 48510-12460 · 48510-12461 |
| 48520 | Left front shock absorber assembly | 48520-01010 · 48520-12330 · 48520-12331 |
| 48609A | Front suspension support sub-assembly | 48609-12151 · 48609-20060 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-01010 |
| 48811 | front stabilizer bar | 48811-12420 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-24010 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48817D | Bolt (for front stabilizer bar) | 48819-20030 |
| 48824 | front stabilizer bar bracket | 48824-20040 |
