Toyota COROLLA 制动助力器和真空管 — Figure 4703

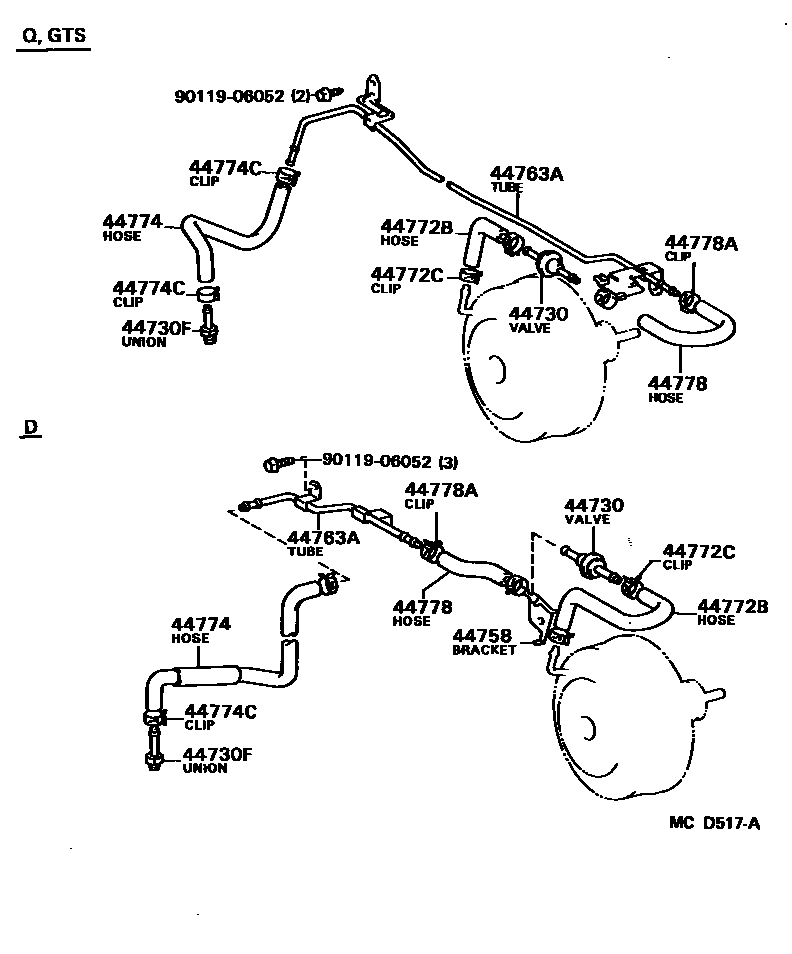

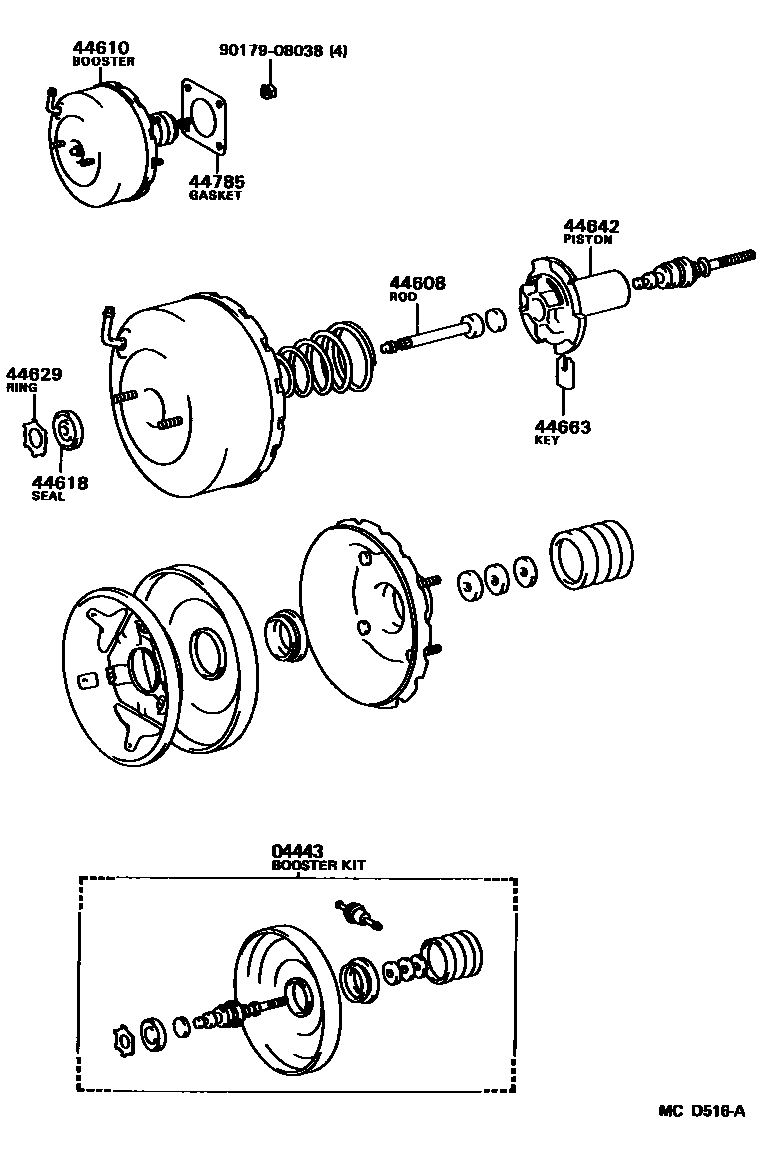

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-12340 |
| 44608 | Booster push rod sub-assembly | 44606-12520 |
| 44610 | brake booster assembly | 44610-12520 |
| 44618 | Booster body sealing ring | 44621-28120 |
| 44629 | annular inner ring | 44628-28120 |
| 44642 | brake booster piston | 44642-12520 |
| 44663 | valve stop key | 44635-28120 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51028 |
| 44758 | Vacuum check valve bracket | 44758-12220 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12020 · 44763-12060 |
| 44772B | Hoses (check valve to brake booster) | 44772-12201 · 44772-12310 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16002 |
| 44774 | Hoses (joints to connector tubes) | 44774-12040 · 44774-12060 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16002 |
| 44778 | Hoses (connector to check valve) | 44772-12240 · 44772-12320 |
| 44778A | Clip (for connector to check valve hose) | 90467-16002 |
| 44785 | brake booster pad | 44785-32010 |
