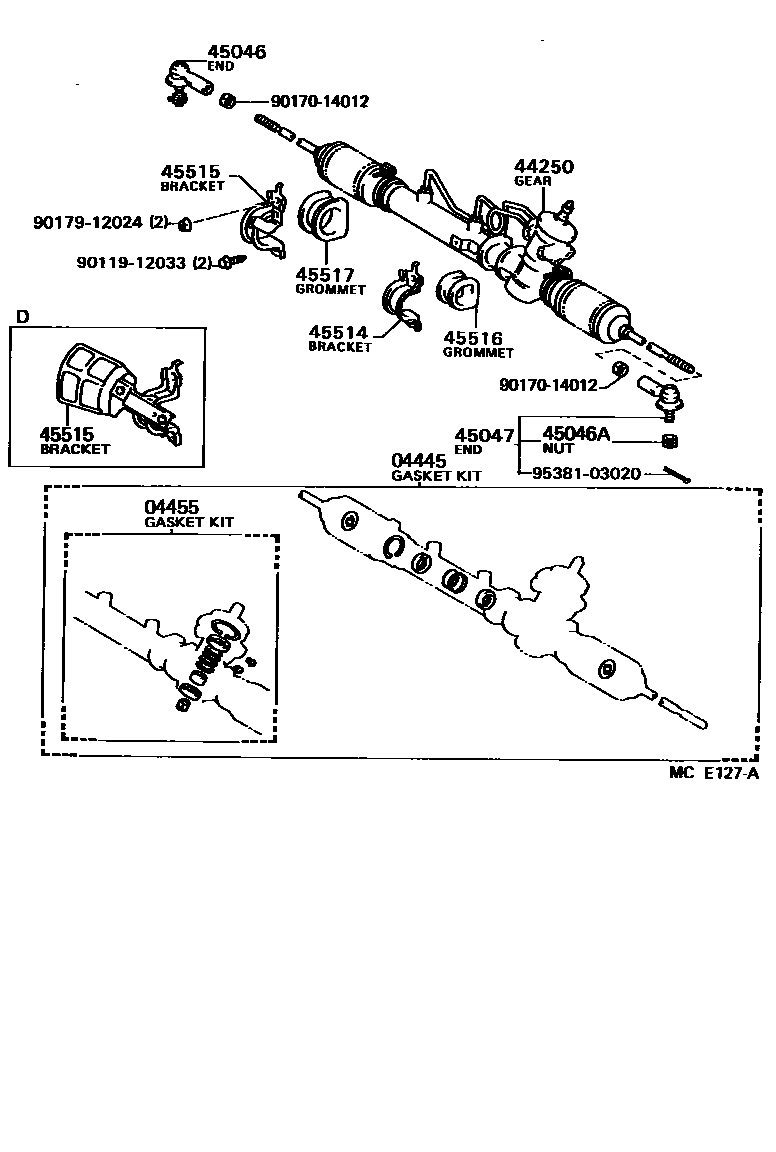

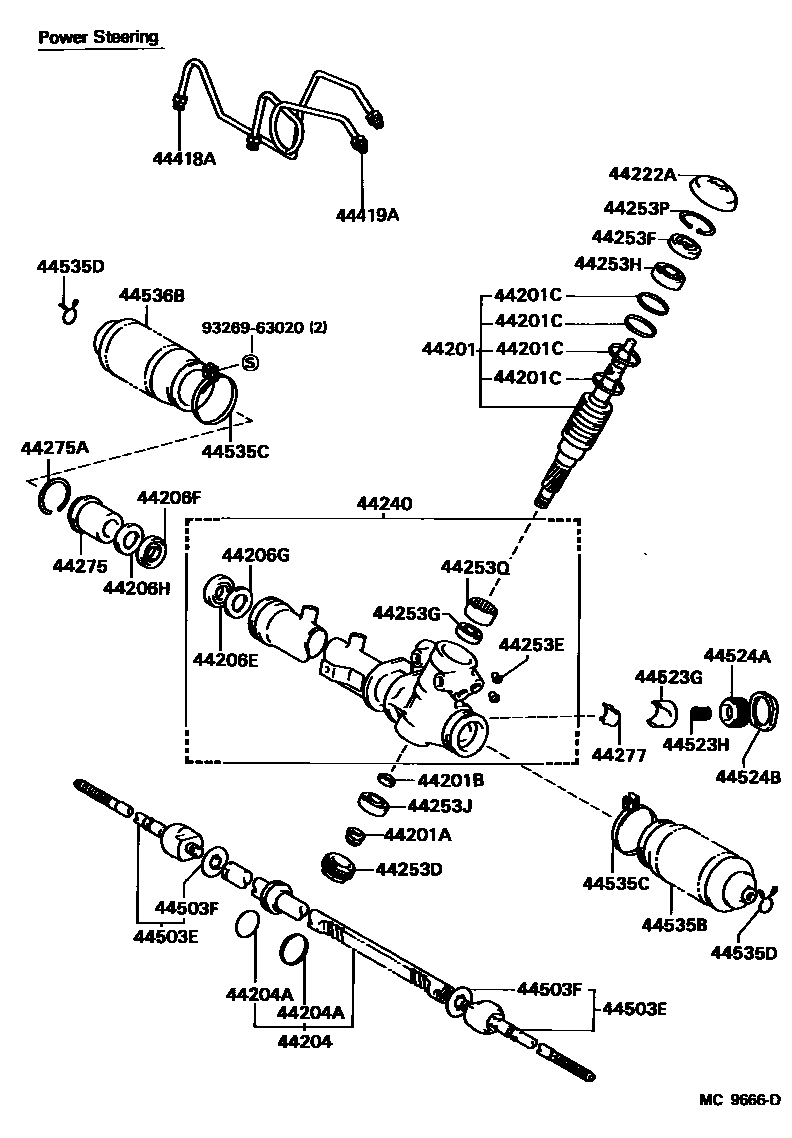

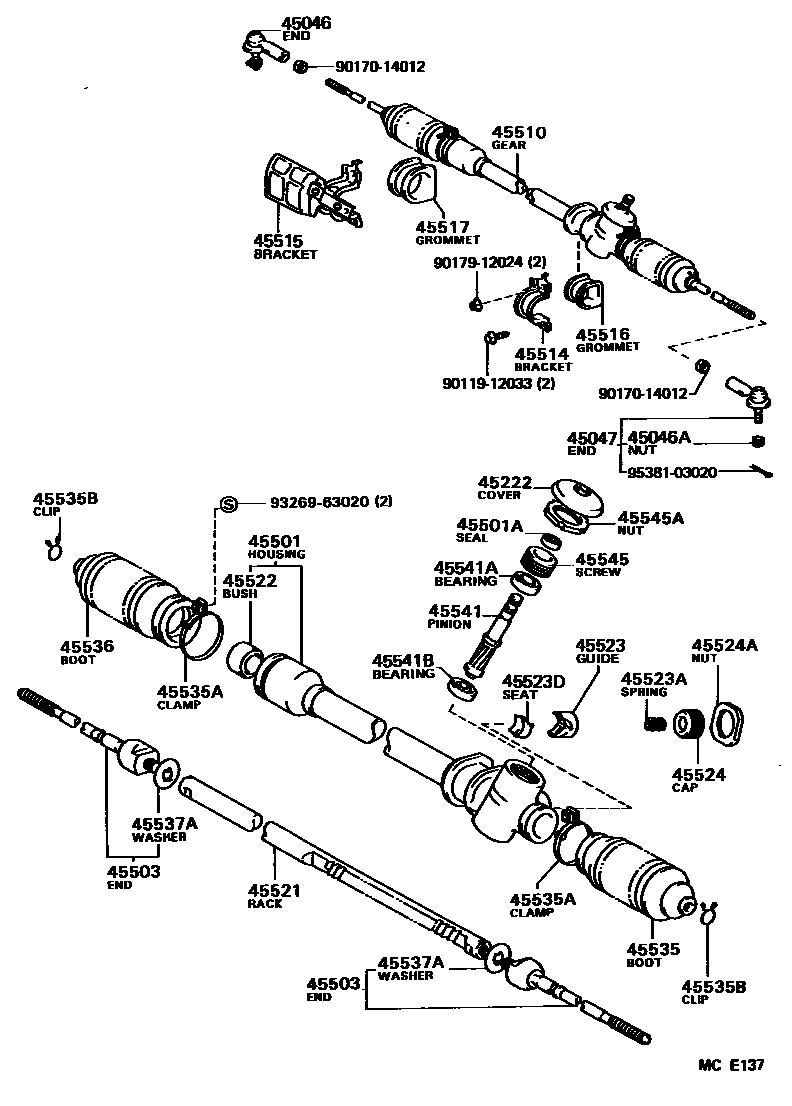

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445 | Power steering gear gasket assembly (for recirculating steel balls) | 04445-12020 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-12010 |
| 44201 | Power steering control valve sub-assembly | 44201-12040 |
| 44201A | Lock nut (for power steering control valve) | 90179-12073 · 94184-61200 |
| 44201B | Spacer (for power steering control valve) | 90560-12030 |
| 44201C | Ring (for power steering control valve) | 90562-33002 |
| 44204 | Power steering rack sub-assembly | 44204-12040 |
| 44204A | Ring (for steering rack piston) | 90301-33003 · 90562-37001 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-24005 · 90310-24007 |
| 44206F | No. 2 oil seal (for power steering cylinder barrel) | 90310-24004 · 90310-24008 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-24005 |
| 44206H | No. 2 spacer (for power steering cylinder barrel) | 90560-25007 |
| 44222A | Dust cover (for power steering gear) | 45222-12021 |
| 44240 | Power steering rack housing assembly | 44240-12080 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-12141 |
| 44253D | Power steering rack housing cover | 44283-12010 |
| 44253E | Connector seat (for power steering rack housing) | 90410-05004 · 90410-06002 |
| 44253F | No. 1 oil seal (for power steering rack housing) | 90311-19007 |
| 44253G | No. 2 oil seal (for power steering rack housing) | 90310-23005 |
| 44253H | No. 1 bearing (for power steering rack housing) | 90369-19005 |
| 44253J | No. 2 bearing (for power steering rack housing) | 90363-12008 |
| 44253P | Hole snap ring (for power steering rack housing) | 90521-41003 |
| 44253Q | Bushing (for power steering rack housing) | 90389-28001 |
| 44275 | Cylinder end stop | 44275-12020 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-50002 |
| 44277 | Rack guide block seat | 44277-12020 |
| 44418A | Right steering pressure oil pipe | 44418-12040 |
| 44419A | Left steering pressure oil pipe | 44419-12040 |
| 44503E | Steering rack end sub-assembly (for power steering) | 45503-19056 |
| 44503F | Claw washer (for power steering rack end) | 90214-14002 |
| 44523G | Rack guide block (for power steering) | 45523-12020 |
| 44523H | Spring (for power steering rack guide) | 90501-23007 |
| 44524A | Rack guide spring cover (for power steering) | 45524-12010 |
| 44524B | Nut (for power steering rack guide cover) | 90179-33003 |
| 44535B | No. 1 steering rack dust boot (for power steering) | 45535-12040 |
| 44535C | Clamp (for power steering rack dust boot) | 90949-01080 |
| 44535D | Catch (for power steering rack dust boot) | 90467-18003 |
| 44536B | No. 2 steering rack dust boot (for power steering) | 45535-12040 |
| 45046 | Right tie rod end sub-assembly | 45046-19175 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19175 |
| 45222 | Steering gear dust cover | 45222-10030 |
| 45501 | Steering rack housing sub-assembly | 45501-12100 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15001 |
| 45503 | Steering rack end sub-assembly | 45503-19036 |
| 45510 | Steering gear assembly | 45510-12091 |
| 45514 | No. 1 steering rack housing bracket | 45514-12040 · 45514-20010 |
| 45515 | No. 2 steering rack housing bracket | 45506-12010 · 45506-12020 · 45515-12070 |
| 45516 | No. 1 steering rack housing seal | 45516-20010 |
| 45517 | No. 2 steering rack housing seal | 45517-12050 · 45517-12060 |
| 45521 | steering rack | 45521-12120 |
| 45522 | steering rack bushing | 45522-10021 |
| 45523 | Rack guide block (for steering gear) | 45523-17012 |
| 45523A | Spring (for steering gear rack guide block) | 90501-28007 |
| 45523D | Rack guide block seat | 44277-17010 |
| 45524 | Steering rack guide block spring cover | 45524-12020 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36002 |
| 45535 | No. 1 steering rack dust cover | 45535-12011 |
| 45535A | Clamp (for steering rack dust boot) | 90461-10273 · 90949-01082 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45536 | No. 2 steering rack dust cover | 45536-12030 |
| 45537A | Claw washer (for steering rack end lock) | 90214-14002 |
| 45541 | steering pinion | 45541-12060 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15003 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13001 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
