Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 2 images and 10 PNC and OE references.

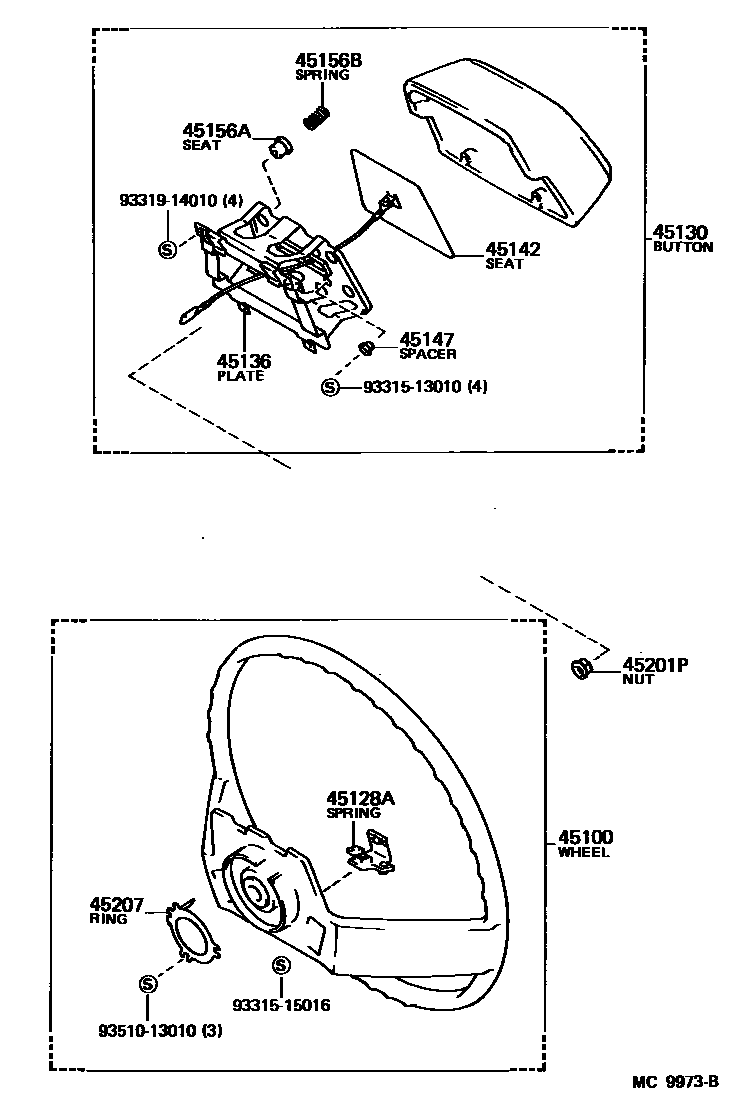

Toyota COROLLA Steering Wheel EPC diagram — MC9973B
Steering Wheel — MC9973B (198702 – 999999)

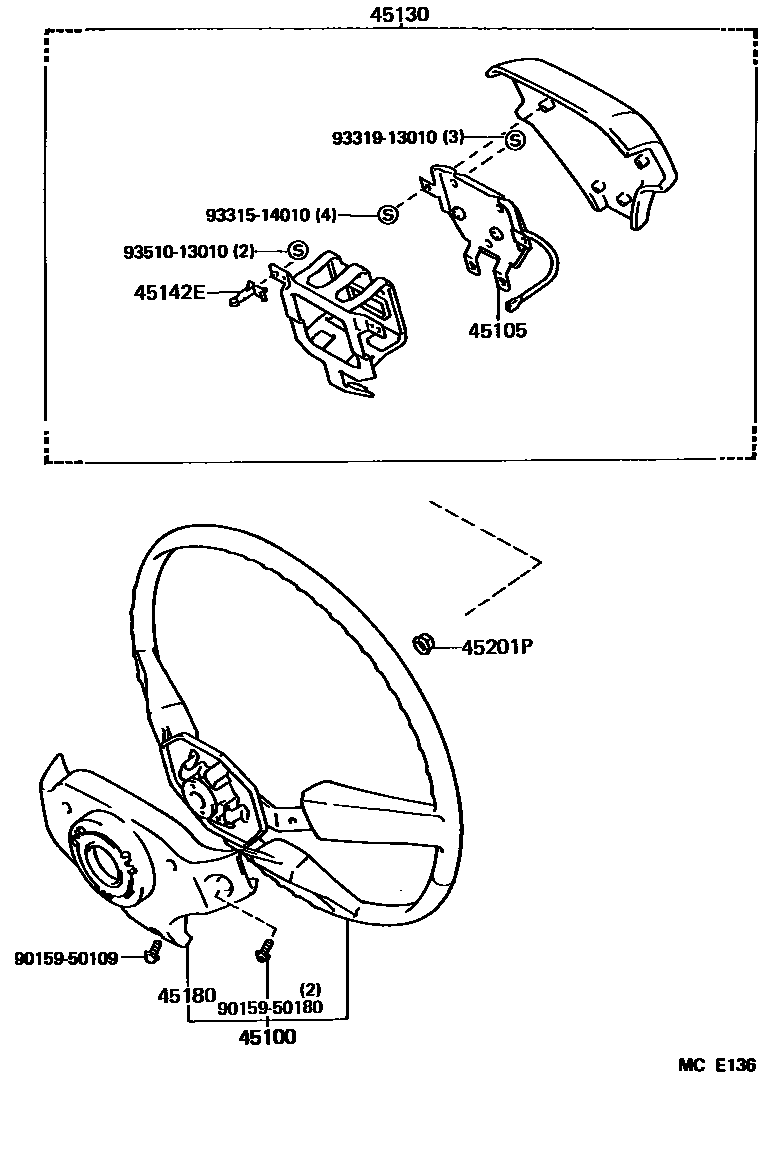

Toyota COROLLA Steering Wheel EPC diagram — MCE136
Steering Wheel — MCE136 (198609 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-17030
45128ASteering wheel trim cover retaining spring45128-12010
45136horn button contact piece45136-12130
45142No. 1 horn button contact seat45142-16010
45142ESpeaker contacts45142-20060
45147Speaker button spacer90561-02001
45156ASpeaker contact spring holder45156-16010
45156BSpring (for horn contact spring holder)90501-06032
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-22050
