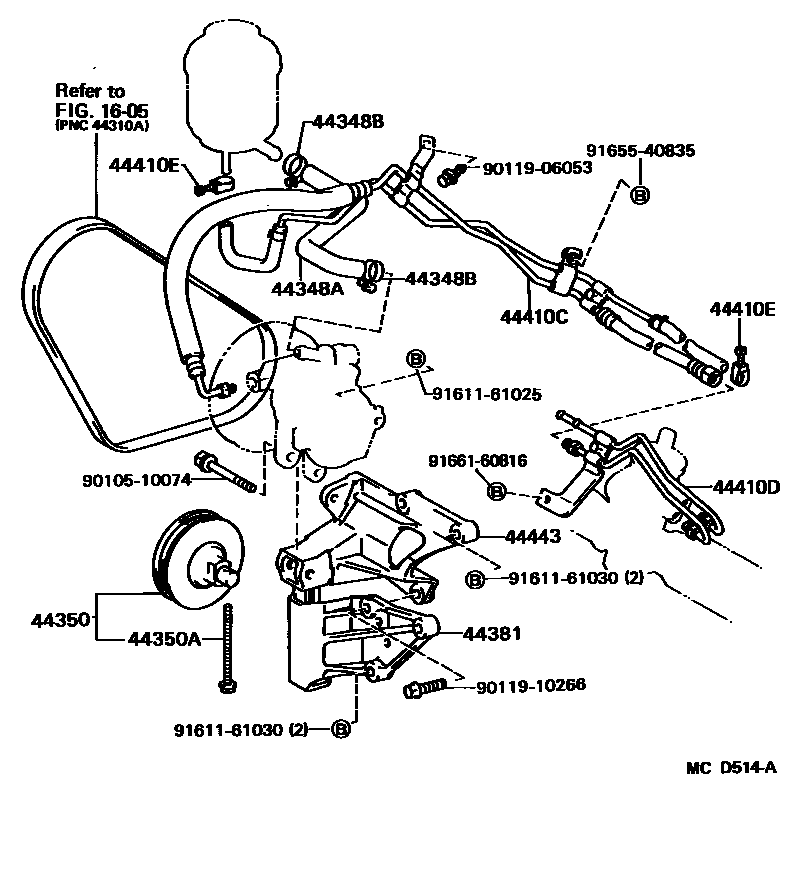

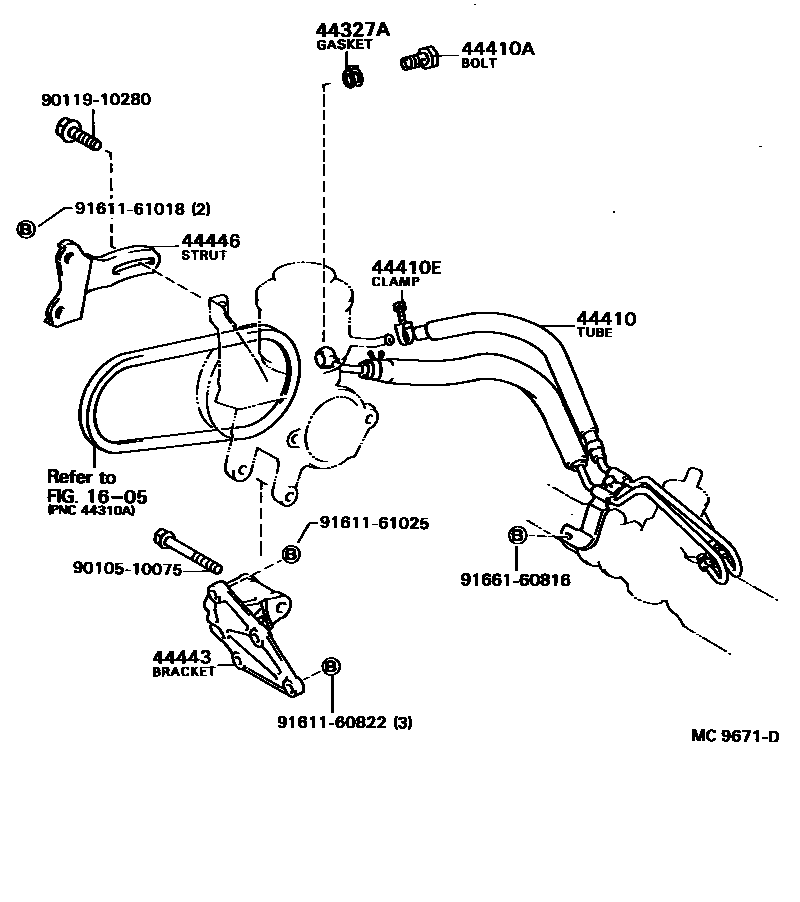

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-12040 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 |
| 44350 | Power steering idler assembly | 44350-12060 |
| 44350A | Bolt (for power steering idler pulley) | 90105-08099 |
| 44381 | Power steering idler bracket | 44381-12030 |
| 44410 | Pressure supply pipe assembly | 44410-01010 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 |
| 44410C | No. 1 pressure supply pipe assembly | 44410-02020 |
| 44410D | No. 2 pressure supply pipe assembly | 44410-02010 |
| 44410E | Clamp (for pressure supply tube) | 90460-01001 |
| 44443 | pump bracket | 44443-12050 · 44443-12060 |
| 44446 | Adjust the stand | 44446-12030 |
