Toyota COROLLA 车轮和车轮盖 — Figure 4103

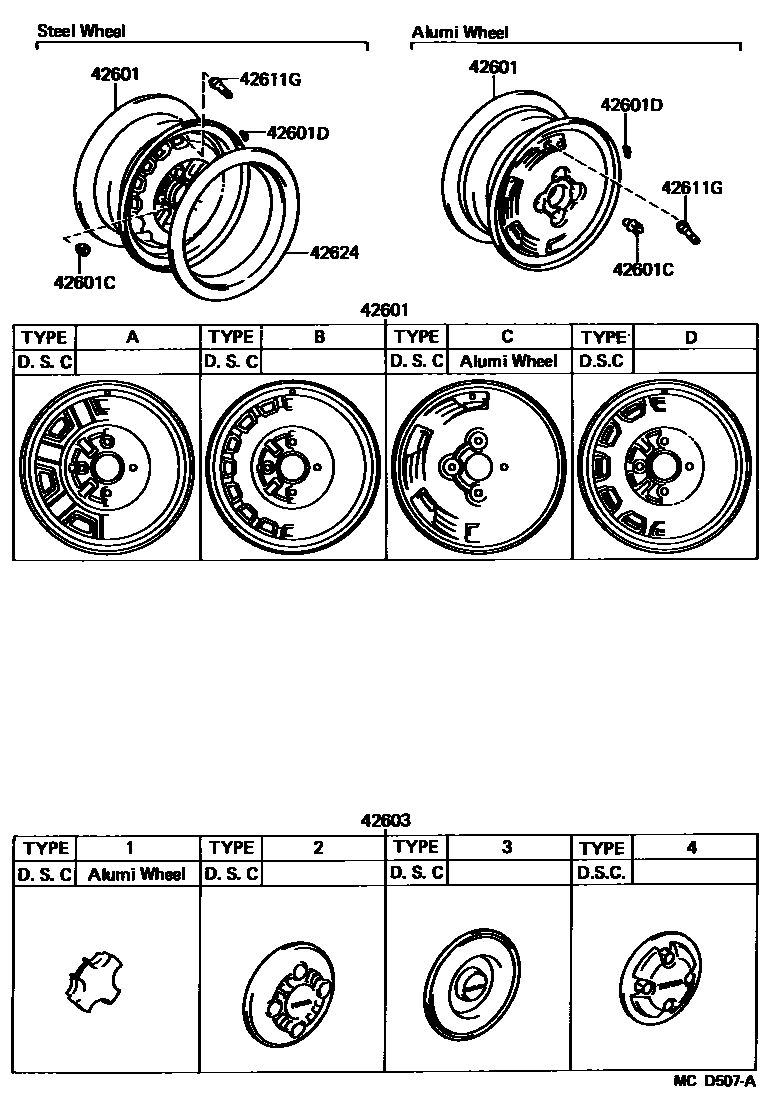

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12640 · 42611-12690 · 42611-12760 · 42611-16170 · 42611-16220 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01028 · 90942-01033 |
| 42601D | Balance weight (for spoked wheels) | 90080-42001 · 90080-42002 · 90080-42003 · 90080-42004 · 90080-42005 · 90080-42006 · 90080-42007 · 90080-42008 · 90080-42009 · 90080-42010 · 90080-42011 · 90080-42012 · 90080-42013 · 90080-42014 · 90080-42015 · 90080-42019 · 90080-42020 · 90080-42021 · 90080-42022 · 90080-42023 · 90080-42024 · 90080-42025 · 90080-42026 · 90080-42027 · 90080-42028 · 90080-42029 · 90080-42030 · 90080-42031 · 90080-42032 · 90080-42033 · 90080-42034 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-12230 · 42603-12240 · 42603-12270 · 42603-17010 |
| 42611G | Valve (for tubeless tires) | 90080-45001 |
| 42624 | wheel cover ring | 42624-20030 |
