Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

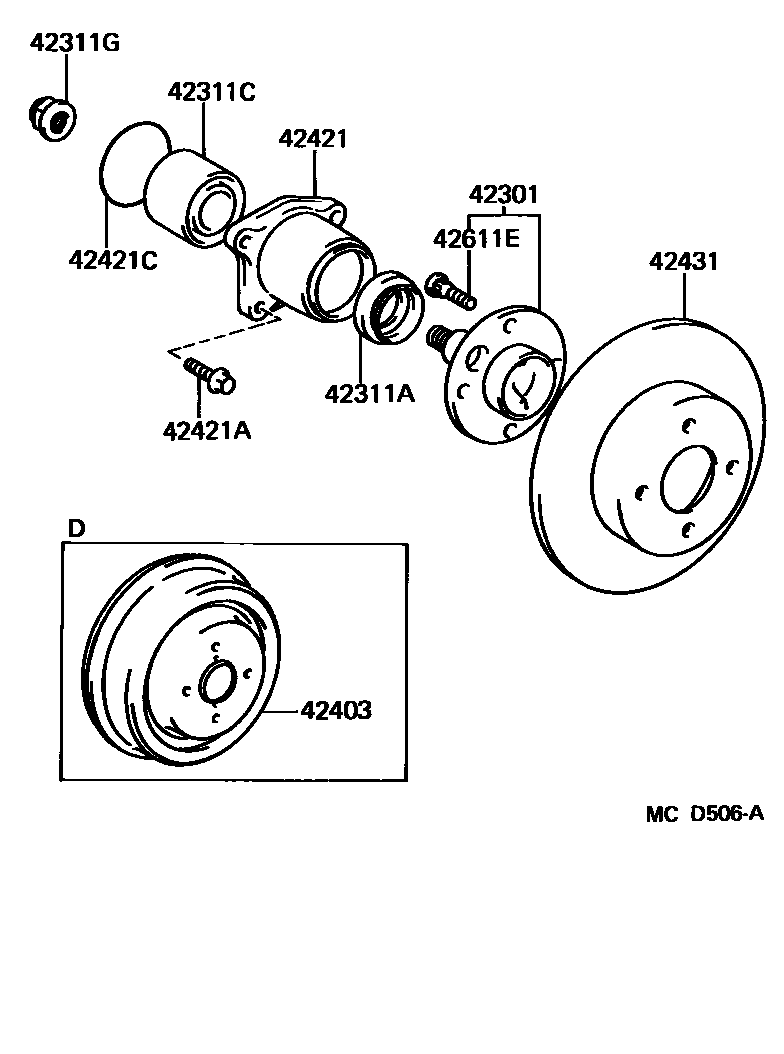

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42301 | Rear axle half-shaft sub-assembly | 42301-12120 · 43502-17010 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-41003 · 90311-41004 |
| 42311C | Bearings (for rear axle half shaft) | 90369-28006 |
| 42311G | Nut (for rear axle half shaft) | 90179-20003 |
| 42403 | Rear brake drum sub-assembly | 42431-20070 |
| 42421 | Rear axle bearing housing | 42421-12010 · 42421-12020 |
| 42421A | Bolt (for rear axle bearing housing) | 90105-10124 |
| 42421C | O-ring (for rear axle bearing housing) | 90301-61002 |
| 42431 | rear brake disc | 42431-12090 |
| 42611E | Hub bolts (for rear axle) | 90942-02047 |
