Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 9 images and 94 PNC and OE references.

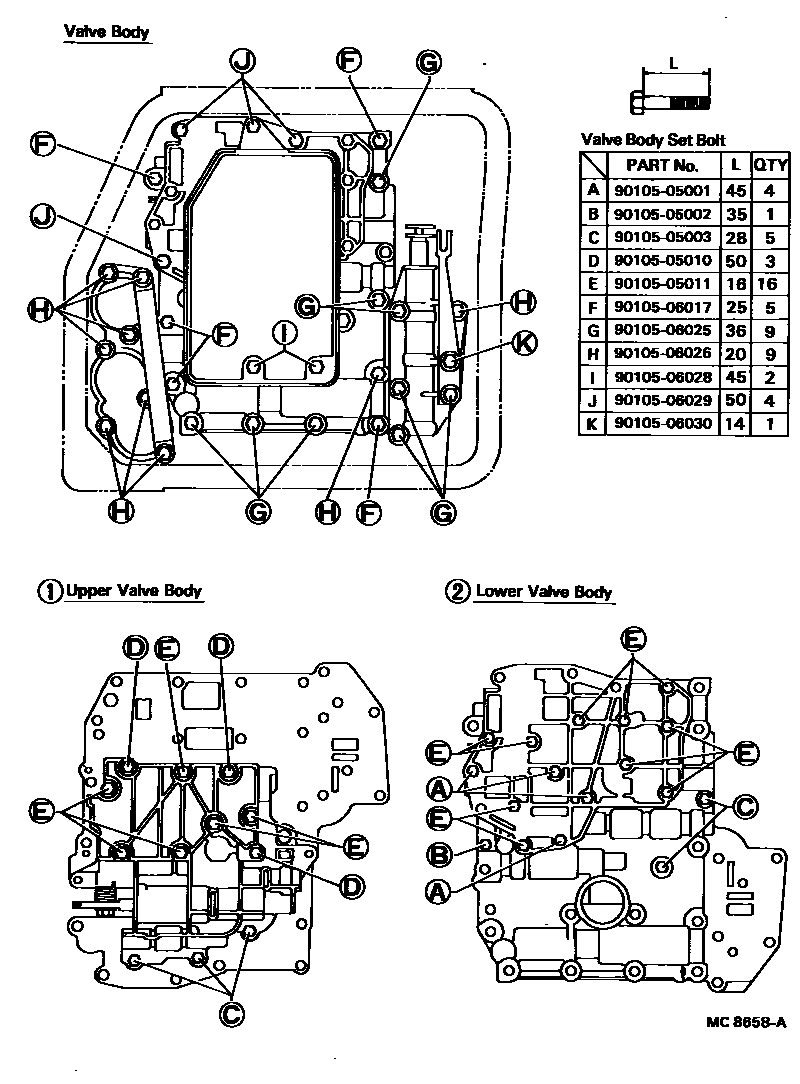

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC8658A
阀体和滤油网(ATM) — MC8658A (198702 – 999999)

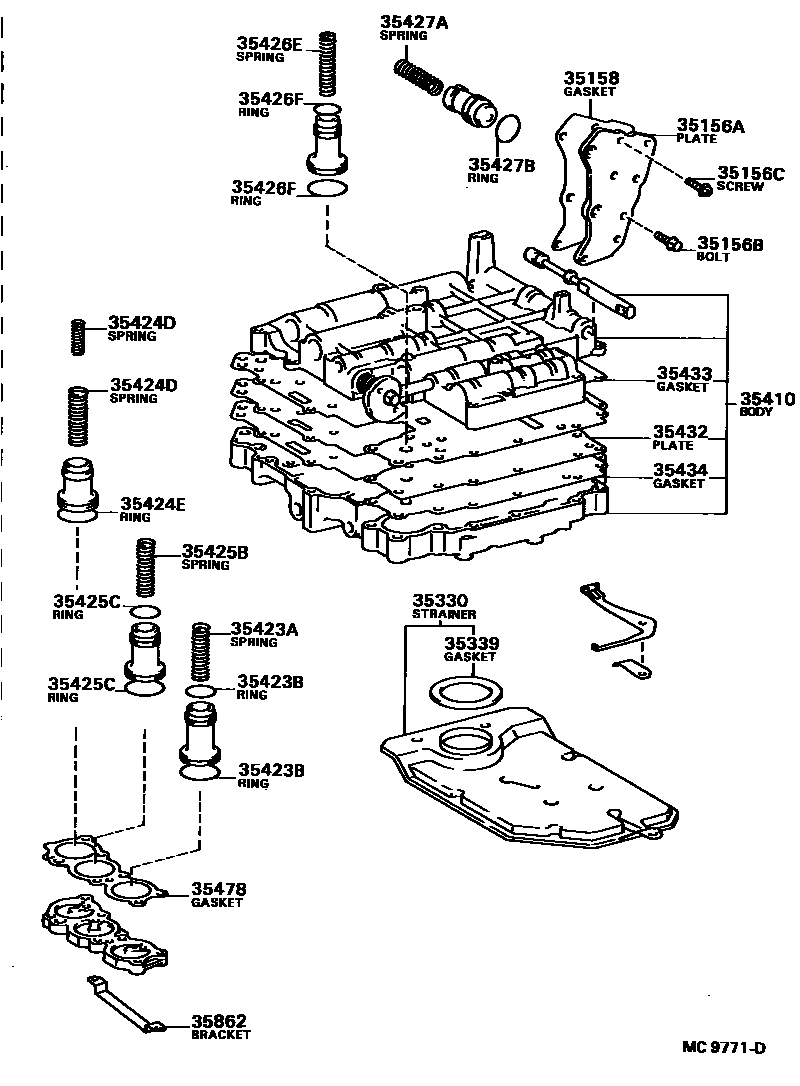

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC9771D
阀体和滤油网(ATM) — MC9771D (198609 – 999999)

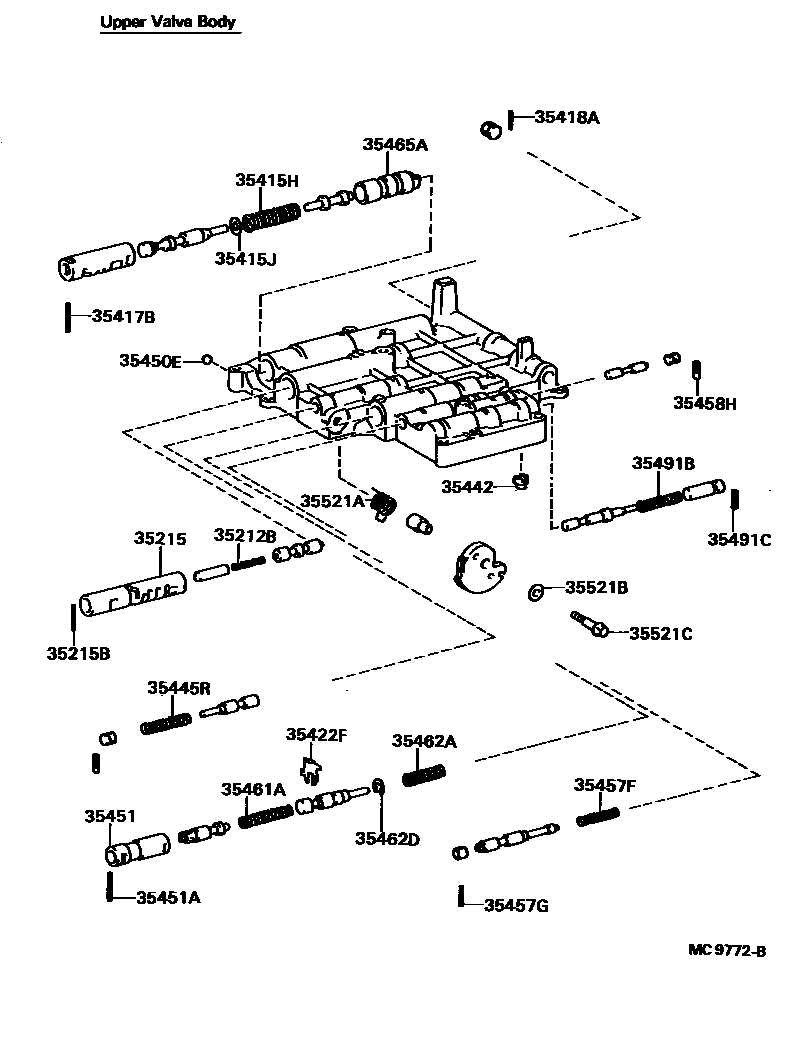

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC9772B
阀体和滤油网(ATM) — MC9772B (198609 – 999999)

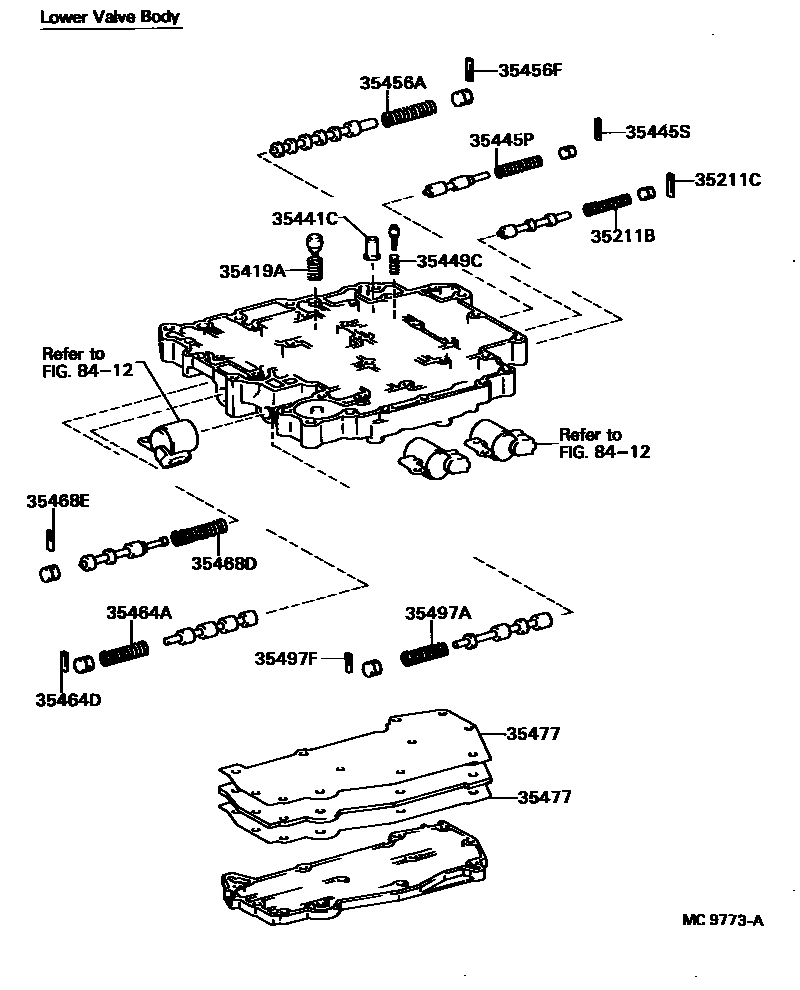

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC9773A
阀体和滤油网(ATM) — MC9773A (198609 – 999999)

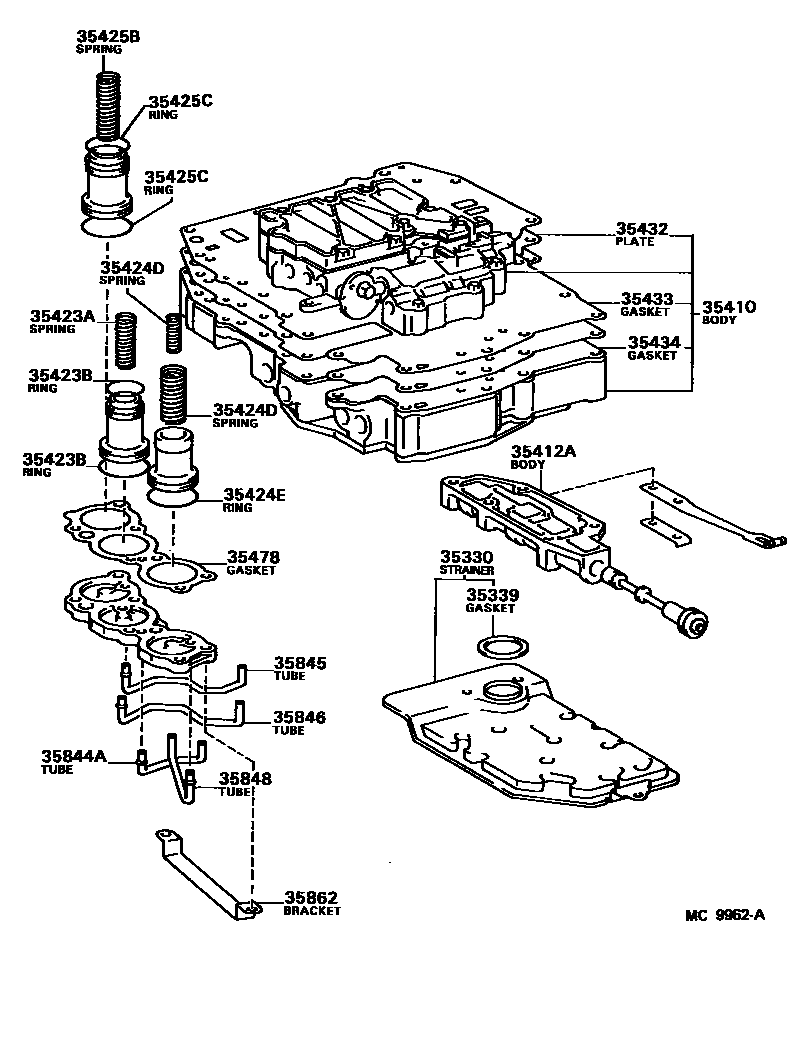

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC9962A
阀体和滤油网(ATM) — MC9962A (198702 – 999999)

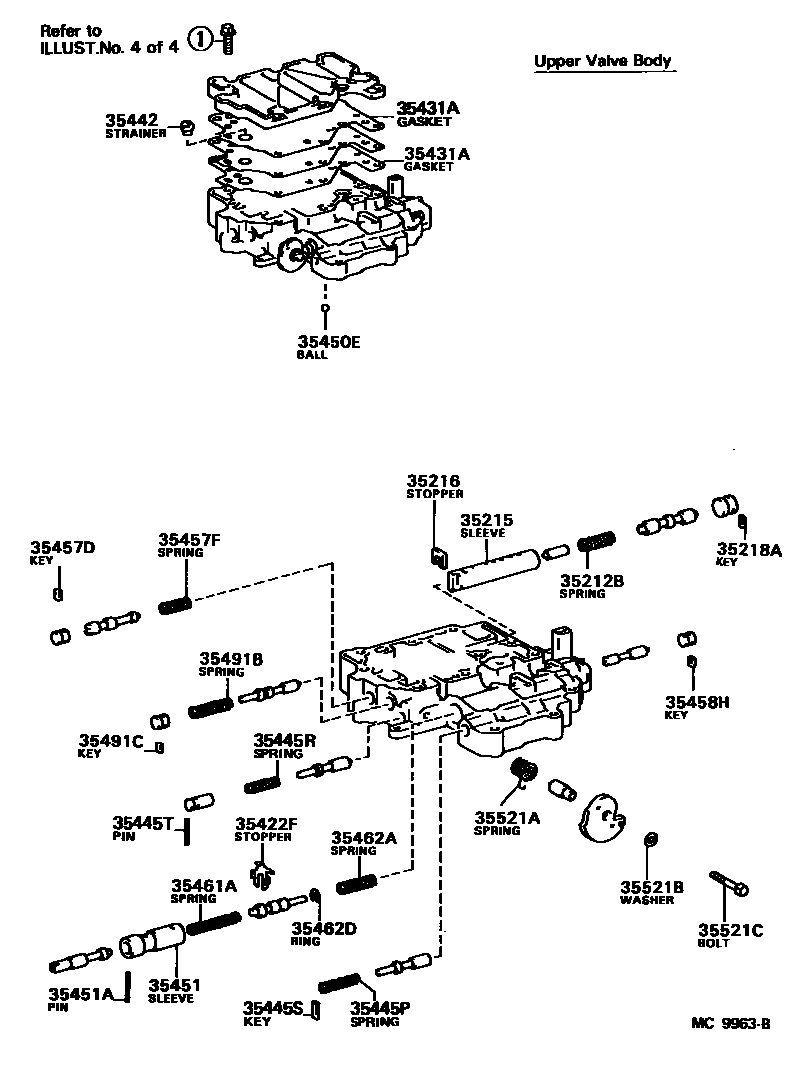

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC9963B
阀体和滤油网(ATM) — MC9963B (198702 – 999999)

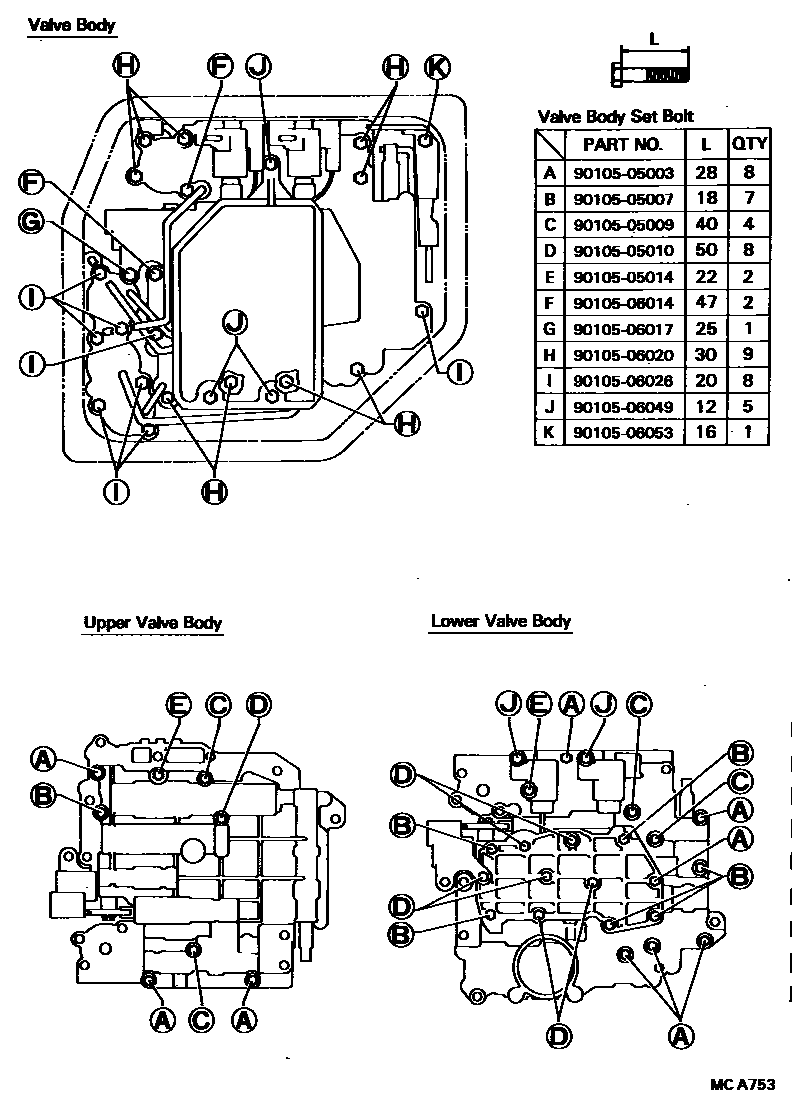

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MCA753
阀体和滤油网(ATM) — MCA753 (198609 – 999999)

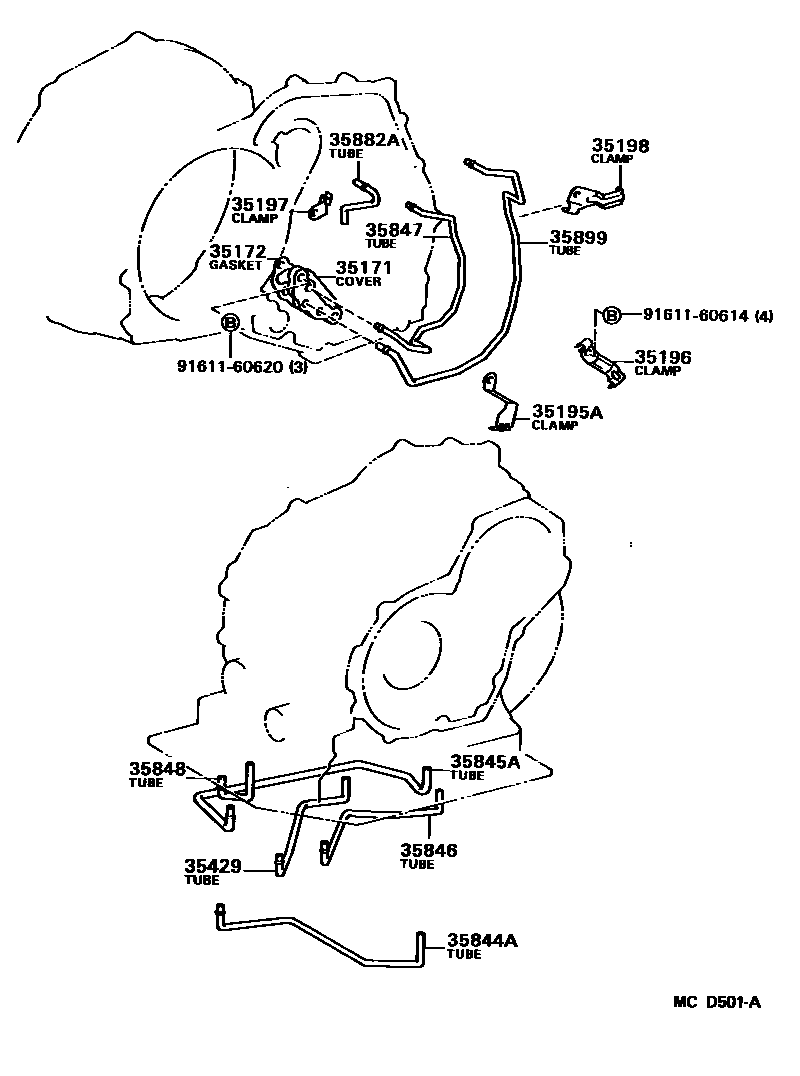

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MCD501A
阀体和滤油网(ATM) — MCD501A (198609 – 999999)

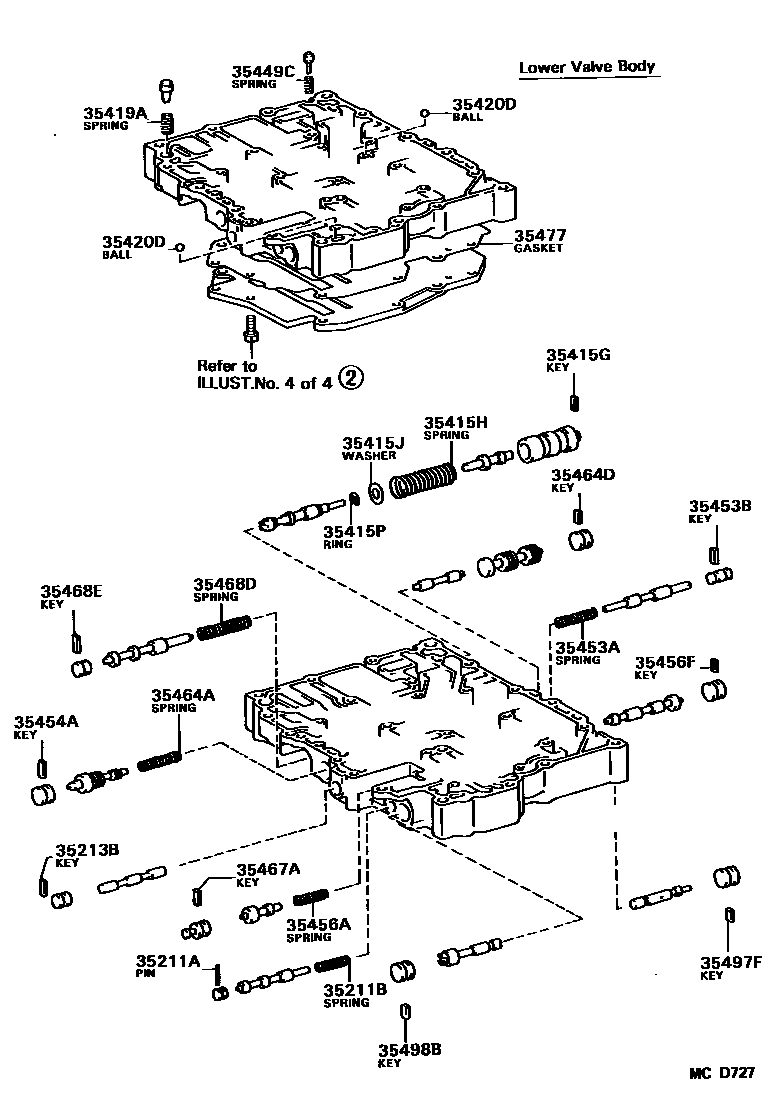

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MCD727
阀体和滤油网(ATM) — MCD727 (198702 – 999999)

PNC and OE references

PNCPart nameOE numbers
35156ANo. 2 gearbox block35156-12010
35156BBolt (for gearbox block No. 2)90105-06049
35156CBolt (for gearbox block No. 2)90149-60041
35158No. 2 gearbox shield gasket35158-12010
35171Transmission axle housing cover35171-12010
35172Transaxle housing cover gasket35172-12010
35195ANo. 1 transmission axle fuel supply pipe clamp35195-12010
35196No. 2 transmission axle fuel supply pipe clamp35196-12010
35197No. 3 transmission axle oil supply pipe clamp35197-12010
35198No. 4 transmission axle oil supply pipe clamp35198-20010
35211ADirect pin (for locking signal valve)90250-02013
35211BCompression spring (for locking signal valve)90501-07025 · 90501-07028
35211CStraight key (for locking signal valve)90282-03002
35212BCompression spring (for locking relay valve)90501-05010 · 90501-07023
35213BStraight key (for locking control valve)90282-03002
35215Locking relay valve sleeve35215-12020 · 35215-12021 · 35215-32010
35215BDirect pin (for locking relay valve sleeve)90250-03038
35216Valve sleeve stop35216-32010
35218AStraight key (for locking the relay valve plunger)90282-03003
35330Valve body oil filter assembly35330-12010 · 35330-12011 · 35330-20010
35339Oil filter gasket35339-12010 · 35339-32010
35410Transmission valve body assembly35410-12130 · 35410-12170 · 35410-20060
35412AManual valve body35412-32010
35415GStraight key (for main regulator valve)90282-03001
35415HCompression spring (for main regulator valve)90501-16065 · 90501-16077
35415JGasket (for main regulator valve)90201-06013 · 90201-08021 · 94614-10600
35415PE-ring (for main regulator valve)90523-06004
35417BDirect sales (for main regulator valve sleeve)90250-03038
35418ADirect sales (for manual valves)90250-02007
35419ACompression spring (for one-way valve)90501-10056 · 90501-10079
35420DBall (for lower valve body)35495-22010
35422FValve damping stop35422-22010 · 35422-32010
35423ACompression spring (for B-2 accumulator piston)90501-26014 · 90501-26044
35423BO-ring (for B-2 accumulator piston)90301-22185 · 90301-29187
35424DCompression spring (for C-1 accumulator piston)90501-22005 · 90501-23044 · 90501-23058 · 90501-23079
35424EO-ring (for C-1 accumulator piston)90301-29187
35425BCompression spring (for C-2 accumulator piston)90501-23042 · 90501-23057
35425CO-ring (for C-2 accumulator piston)90301-23194 · 90301-26190 · 90301-29187
35426ECompression spring (for C-3 accumulator piston)90501-23050
35426FO-ring (for C-3 accumulator piston)90301-20002 · 90301-29187
35427ACompression spring (for B-4 accumulator piston)90501-26040
35427BO-ring (for B-4 accumulator piston)90301-22185
35429pipeline pressure oil pipe35429-12030
35431AUpper body cover gasket35431-32010
35432No. 1 valve body plate35432-12100 · 35432-20031
35433No. 1 valve body gasket35433-12020 · 35433-20020
35434No. 2 valve body gasket35434-12010 · 35434-32020
35441CSolenoid valve oil filter35441-12010
35442Throttle regulator oil filter35442-32010
35445PCompression spring (for second gear coast regulator valve)90501-10081 · 90501-11013
35445RCompression spring (for low range coast regulator valve)90501-09035 · 90501-10081
35445SStraight key (for second gear slide regulator valve)90282-03002 · 90282-03003
35445TDirect sales (for low speed coasting regulator valve)90250-03035
35449CCompression spring (for pressure reducing valve)90501-09032
35450EBall (for upper valve body)90360-06023
35451Throttle valve sleeve35451-32010
35451ADirect sales (with throttle sleeve)90250-03036
35453ACompression spring (for locking regulator valve)90501-09052
35453BStraight key (for locking the pressure regulator valve)90282-03002
35454AStraight key (for low gear coast shift valve)90282-03001
35456ACompression spring (for 2-3 gear shift valve)90501-06027 · 90501-09053
35456FStraight key (for 2-3 gear shift valve)90282-03002 · 90282-03004
35457DStraight key (for throttle regulator valve)90282-03001
35457FCompression spring (for throttle regulator valve)90501-09037 · 90501-09040
35457GDirect sales (for throttle regulator valve)90250-02007
35458HStraight key (for reverse valve)90282-03001 · 90282-03003
35461ACompression spring (for downshift plug)90501-10054
35462ACompression spring (for throttle valve)90501-07022 · 90501-07027
35462DE-ring (for throttle valve)90523-06023
35464ACompression spring (for 1-2 gear shift valve)90501-06025 · 90501-09053
35464DStraight key (for 1-2 gear shift valve)90282-03001 · 90282-03002
35465AMain regulator valve plunger sleeve35465-12010
35467AStraight key (for intermediate shift valve)90282-03002
35468DCompression spring (for secondary regulator valve)90501-14059 · 90501-14072
35468EStraight key (for secondary regulator valve)90282-03001 · 90282-03002
35477Valve body cover gasket35477-12010 · 35477-32020 · 35477-32021
35478Accumulator cover gasket35478-32010
35491BCompression spring (for No. 1 accumulator control valve)90501-09045 · 90501-10055
35491CStraight key (for No. 1 accumulator control valve)90282-03002 · 90282-03003
35497ACompression spring (for 3-4 gear shift valve)90501-09053
35497FStraight key (for 3-4 gear shift valve)90282-03002 · 90282-03004
35498BStraight key (for 3-4 speed coasting shift valve)90282-03004
35521ASpring (for throttle cam return)90508-11003
35521BGasket (for throttle cam assembly)90201-06472
35521CBolt (for throttle cam assembly)90105-06018
35844ANo. 1 accumulator back pressure pipe35844-12030 · 35844-32021
35845Rear clutch accumulator tube35845-32011
35845ADirect clutch accumulator tube35845-12030
35846brake accumulator pipe35846-12040 · 35846-32021
35847Transmission lubricant supply pipe35847-12010
35848Forward clutch accumulator tube35848-12030 · 35848-32011
35862Accumulator fuel supply pipe bracket35862-12020 · 35862-32011
35882ADifferential gear lubricant oil supply pipe35882-12010
35899Governor pressure oil pipe35899-12010
