Toyota COROLLA Shift Lever & Retainer — Figure 3312

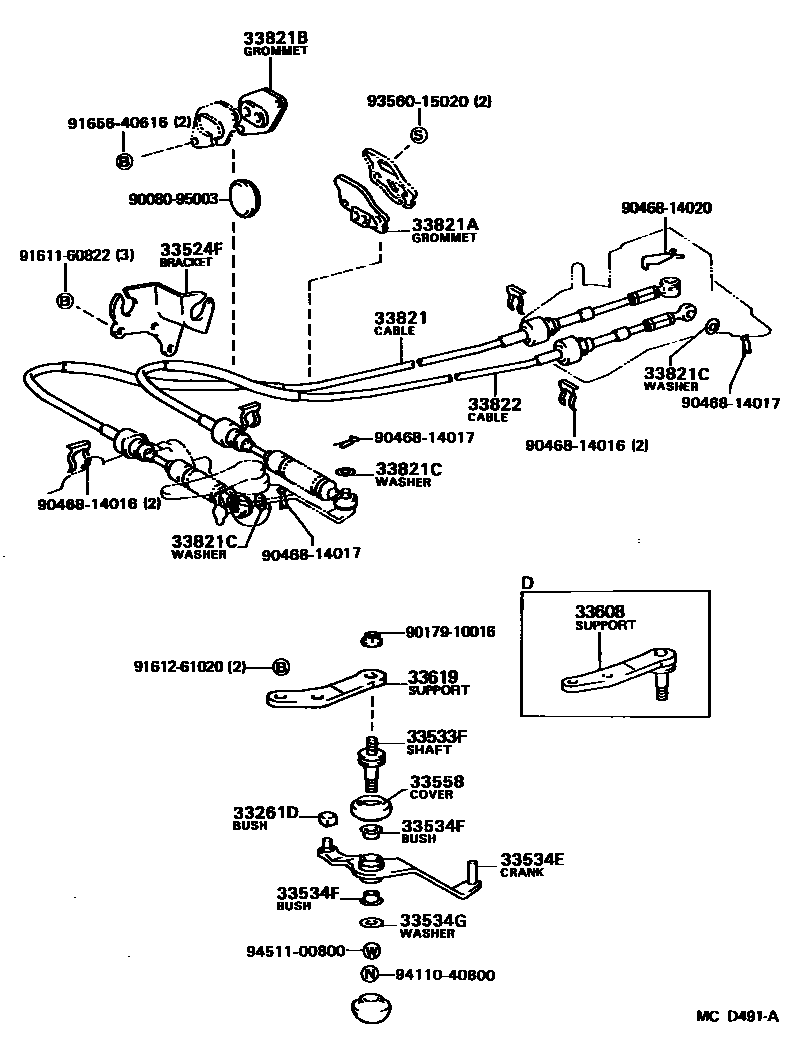

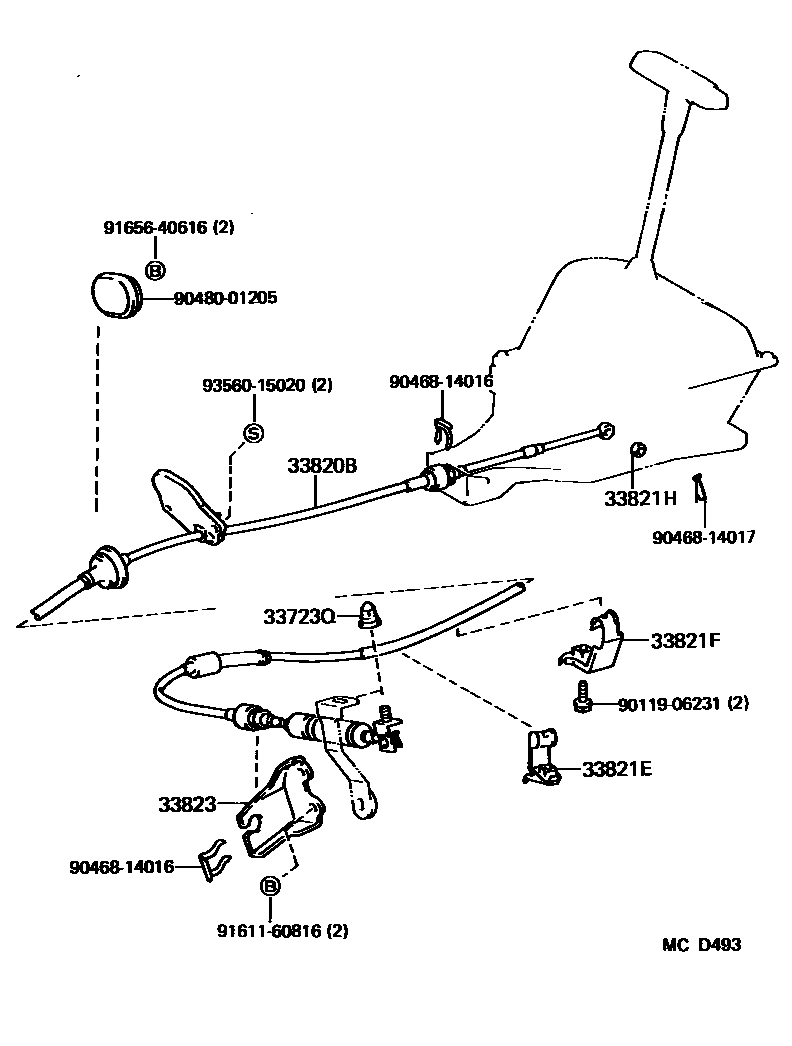

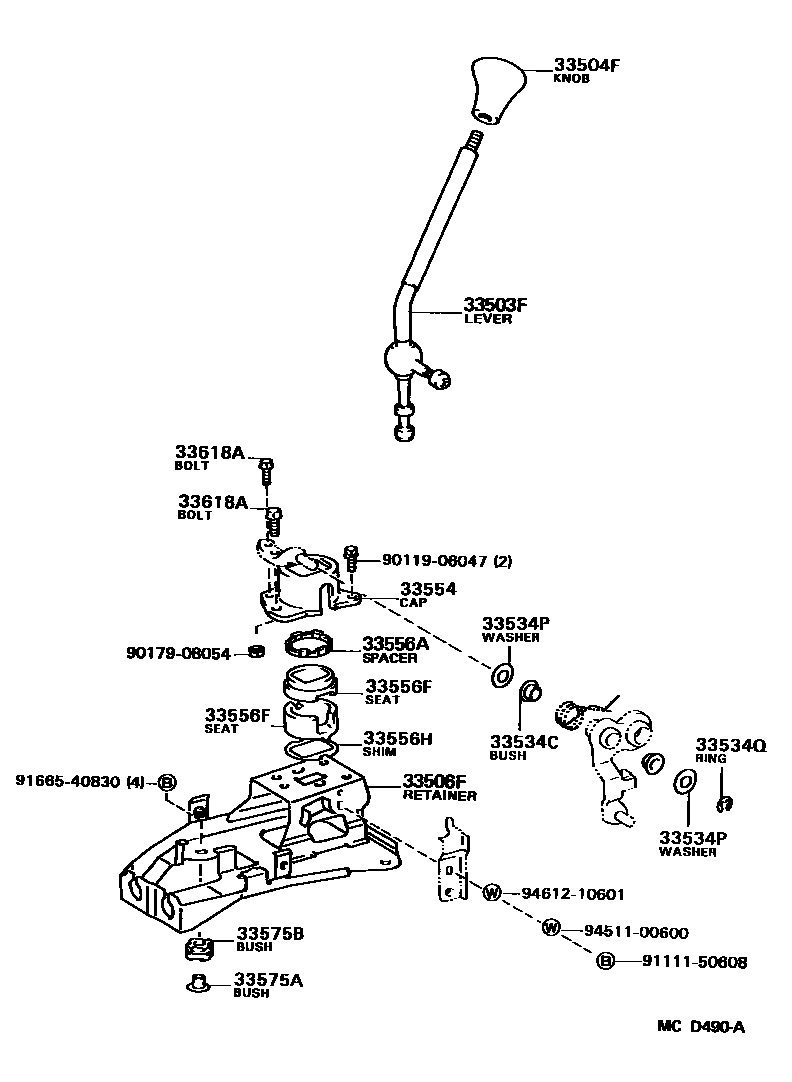

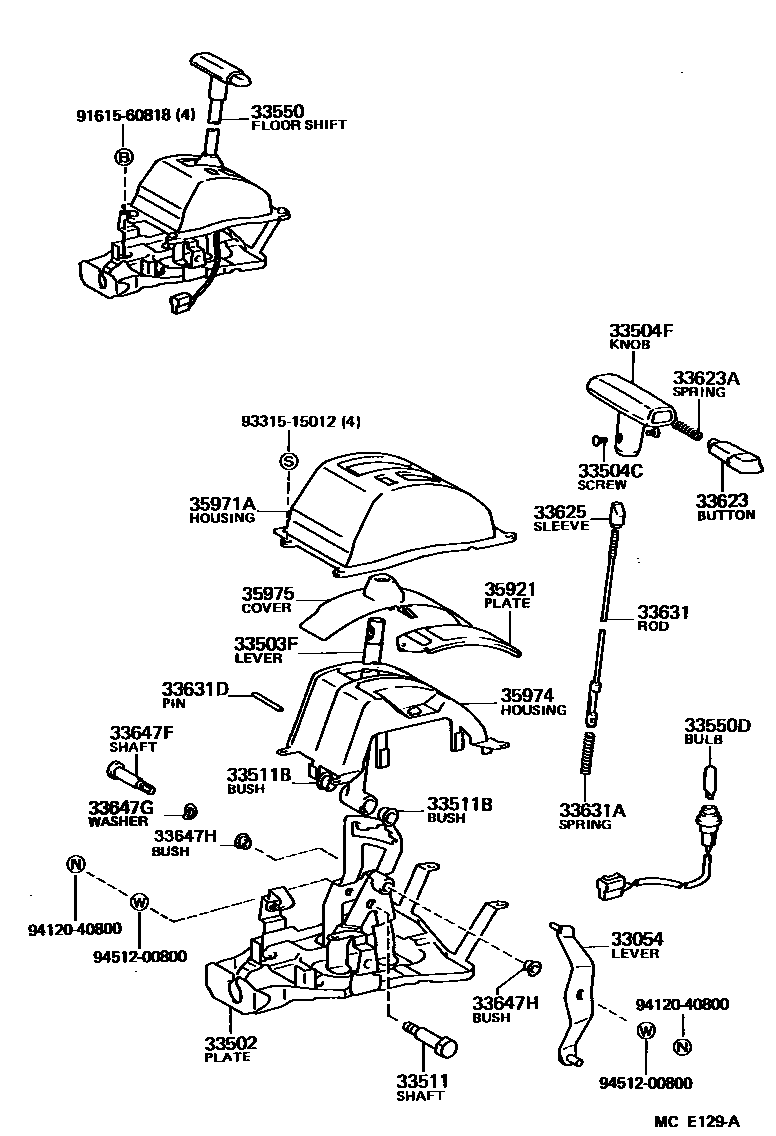

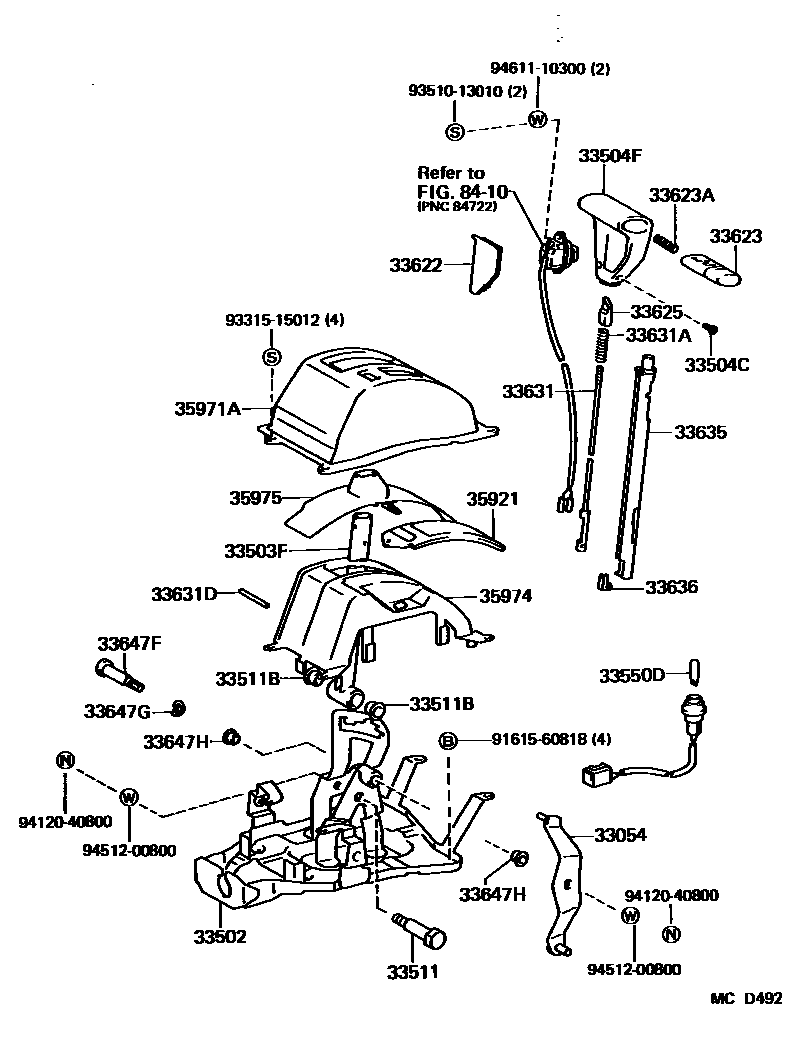

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-12020 |
| 33261D | Bushing (for shift lever) | 90389-10009 |
| 33502 | Shift lever base plate sub-assembly | 33502-12200 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12200 · 33503-12241 · 33503-12280 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-12080 |
| 33511 | Control shaft (for floor shifting) | 33511-20240 |
| 33511B | Bushing (for control shaft) | 90385-11003 |
| 33524F | Lever housing bracket (for floor shift) | 33524-12010 |
| 33533F | Right-angle lever shaft (for floor-mounted shifting) | 33533-02010 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12013 |
| 33534E | No. 2 gear selection right-angle lever | 33534-10030 · 33534-12030 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12029 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00900 |
| 33550D | position indicator light bulb | 90981-11036 |
| 33554 | shift lever cover | 33554-12040 |
| 33556A | Spacer (for transmission shift lever ball seat) | 90561-35001 |
| 33556F | Transmission shift lever ball seat | 33556-12020 · 33556-12030 |
| 33556H | Spacer (for transmission shift lever ball seat) | 90564-30003 · 90564-30004 · 90564-30005 · 90564-30006 · 90564-30007 · 90564-30008 · 90564-30009 · 90564-30010 · 90564-30011 · 90564-30012 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-12010 |
| 33575A | Bushing No. 1 (for shift lever stop) | 90389-08031 |
| 33575B | Bushing No. 2 (for shift lever stop) | 90389-09003 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12020 · 33608-12021 |
| 33618A | Bolt (for gear selector right-angle lever bracket) | 90105-08078 · 90119-06268 |
| 33619 | No. 2 gear selection right-angle lever bracket | 33618-02010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-22020 · 33625-32010 |
| 33631 | Locking lever | 33631-32011 · 33631-32021 |
| 33631A | Compression spring (for locking lever) | 90501-07005 · 90501-08017 |
| 33631D | Grooved pin (for locking lever) | 90256-04001 |
| 33635 | Cable guide (for gear selector) | 33635-12020 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33647F | Control linkage shaft (for floor shift) | 33647-32010 |
| 33647G | Wave washer (for controlling connecting rod shaft) | 90206-10003 |
| 33647H | Bushing (used to control connecting rod shaft) | 90386-10012 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08070 |
| 33820B | Transmission control cable assembly | 33820-12120 · 33820-20020 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-12031 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01202 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01263 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01070 · 90949-01180 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01133 |
| 33821H | Collar (for transmission control cable) | 90386-10014 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12031 |
| 33823 | No. 1 transmission control cable bracket | 33823-12020 · 33823-12030 |
| 35921 | control position indicator board | 35921-12190 |
| 35971A | Position indicator light upper shell | 35971-12100 |
| 35974 | Position indicator light lower shell | 35974-12090 |
| 35975 | Slide cover (for position indicator light) | 35975-12080 · 35975-12110 |
