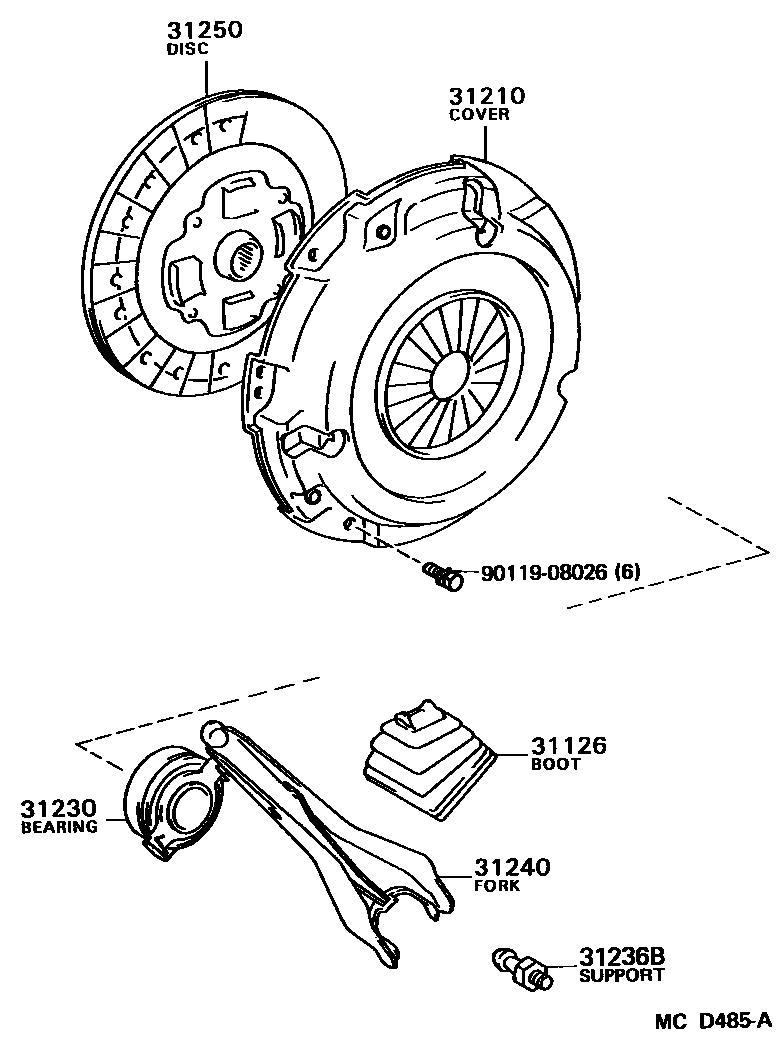

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-12050 · 31126-12051 |
| 31210 | Clutch cover assembly | 31210-12080 · 31210-12120 · 31210-16100 · 31210-20200 |
| 31230 | Clutch release bearing assembly | 31230-12100 · 31230-12140 · 31230-16060 |
| 31236B | Split fork bracket | 31236-12011 |
| 31240 | Clutch release fork assembly | 31204-12050 |
| 31250 | Clutch disc assembly | 31250-12144 · 31250-12200 · 31250-17010 |
