Toyota COROLLA 起动机 — Figure 1904

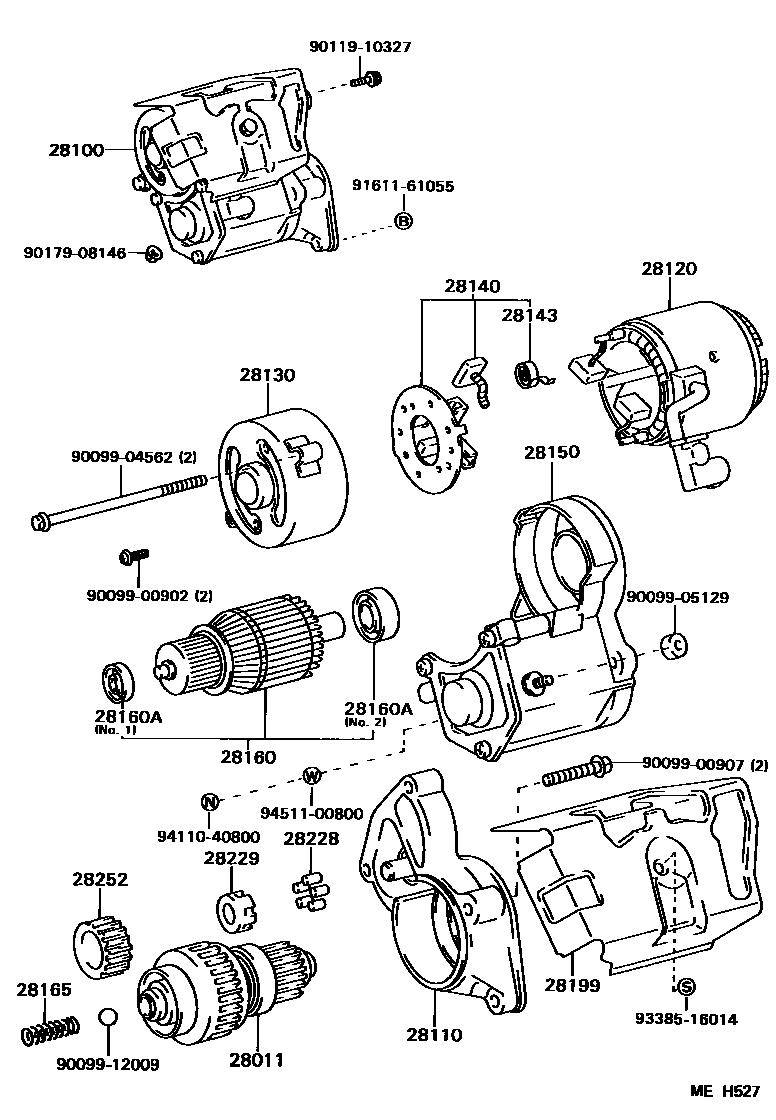

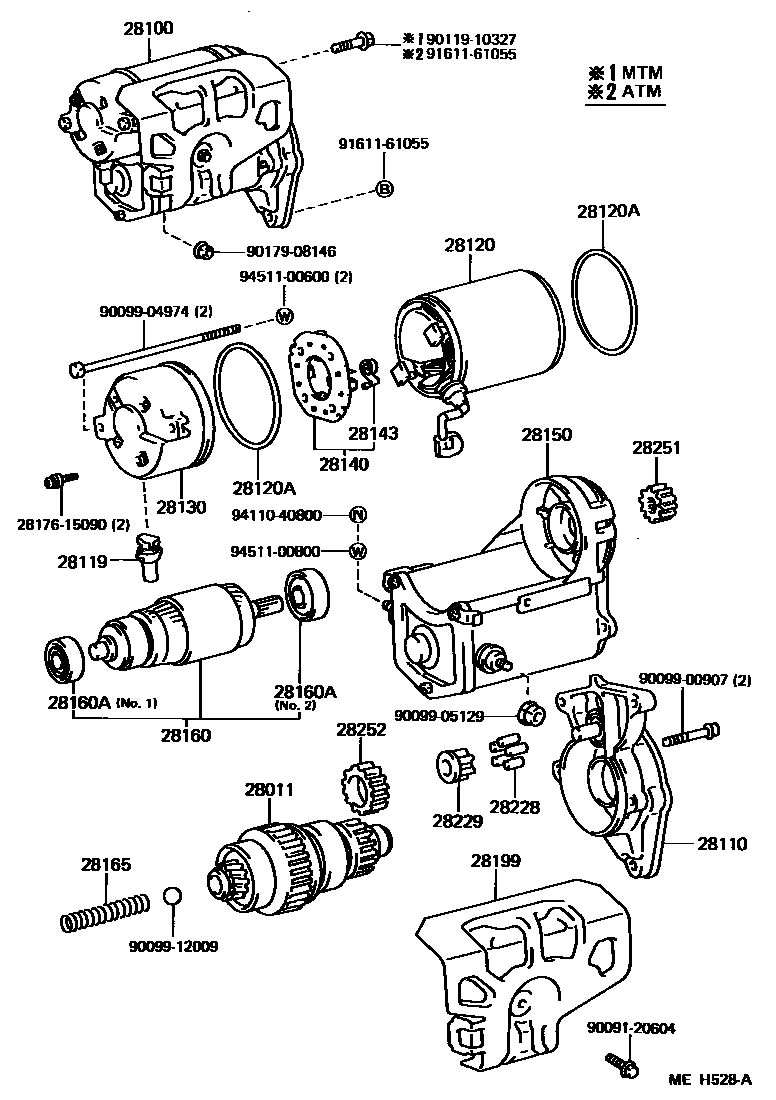

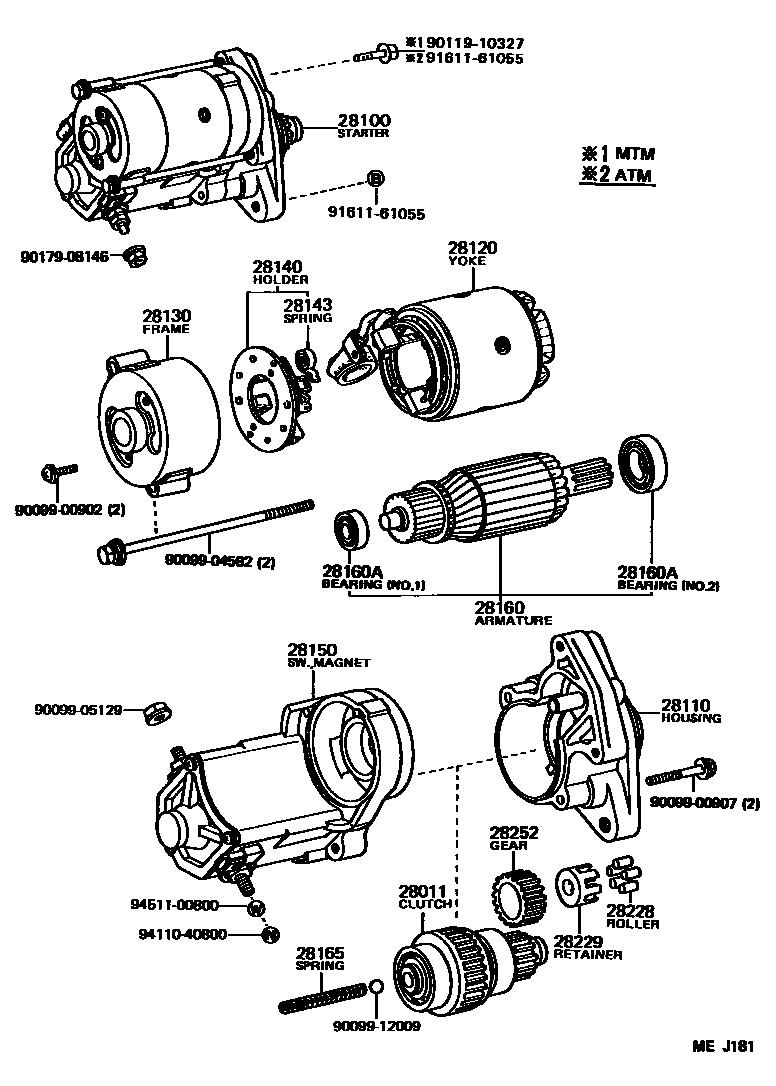

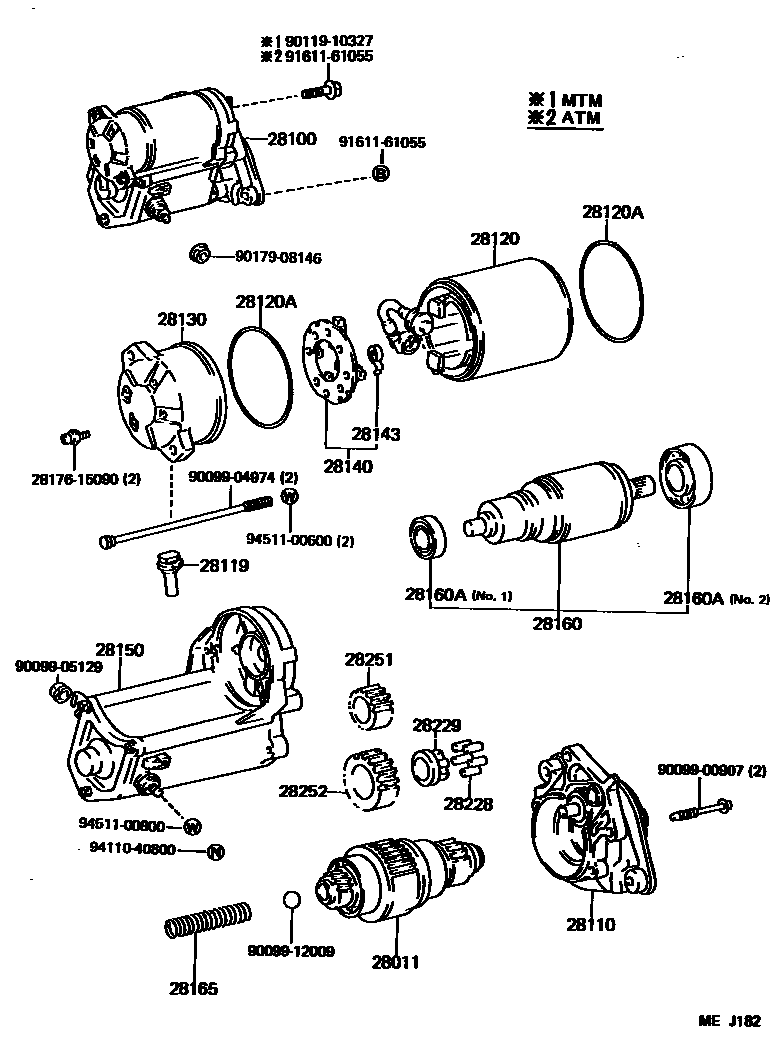

Toyota COROLLA EPC diagram 1904, 起动机, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-26042 |
| 28100 | Starter assembly | 28100-15070 · 28100-15120 · 28100-15150 · 28100-15180 |
| 28110 | Starter drive end housing assembly | 28110-15070 · 28110-15120 · 28110-15130 · 28110-15150 |
| 28119 | Starter end frame cover | 28199-15090 |
| 28120 | Starter yoke assembly | 28120-15090 · 28120-26071 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-13010 · 28130-15040 · 28130-15090 · 28130-15150 |
| 28140 | Starter brush holder assembly | 28140-15090 · 28140-26070 |
| 28143 | starter brush spring | 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-13011 · 28150-15070 · 28150-15090 · 28150-15150 |
| 28160 | Starter armature assembly | 28160-15090 · 28160-26070 |
| 28160A | starter armature bearing | 28253-45020 · 90099-10113 · 90099-10143 · 90099-10144 |
| 28165 | Starter solenoid switch return spring | 28165-26040 |
| 28199 | starter cover | 28199-15150 · 28199-63050 |
| 28228 | Starter idler clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-26040 |
| 28251 | Starter drive pinion | 28251-15090 |
| 28252 | starter idler gear | 28254-45020 |
