Toyota COROLLA Alternator — Figure 1903

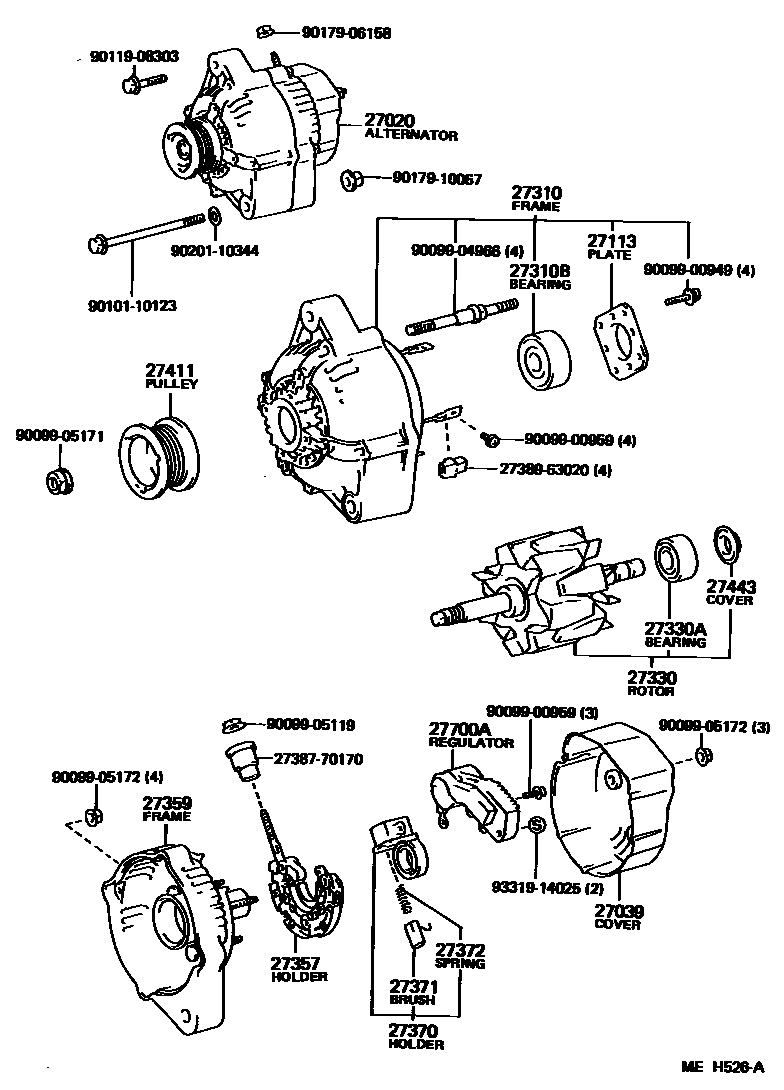

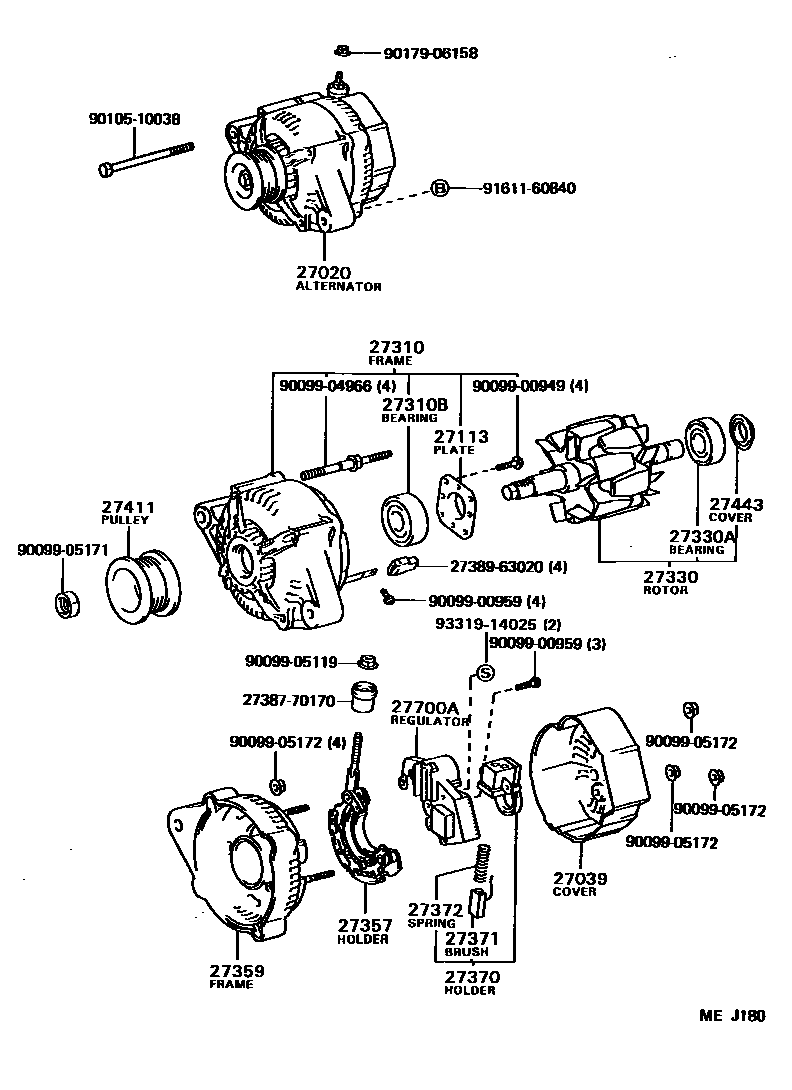

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-01011 · 27060-16011 |
| 27039 | Alternator Rear End Cover | 27039-72010 · 27039-72110 |
| 27113 | Generator bearing block | 27312-72100 |
| 27310 | Alternator Drive End Frame Assembly | 27310-16011 · 27310-63041 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10159 |
| 27330 | Alternator Rotor Assembly | 27330-01012 · 27330-10020 · 27330-72101 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-63020 · 27357-63040 |
| 27359 | Generator rectifier end frame | 27359-16011 · 27359-63041 |
| 27370 | Alternator Brush Holder Assembly | 27370-16011 · 27370-63021 |
| 27371 | Generator brushes | 27371-63020 |
| 27372 | Generator brush spring | 27372-72100 |
| 27411 | Alternator Pulley | 27411-01013 · 27411-16011 · 27411-63081 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-63021 |
