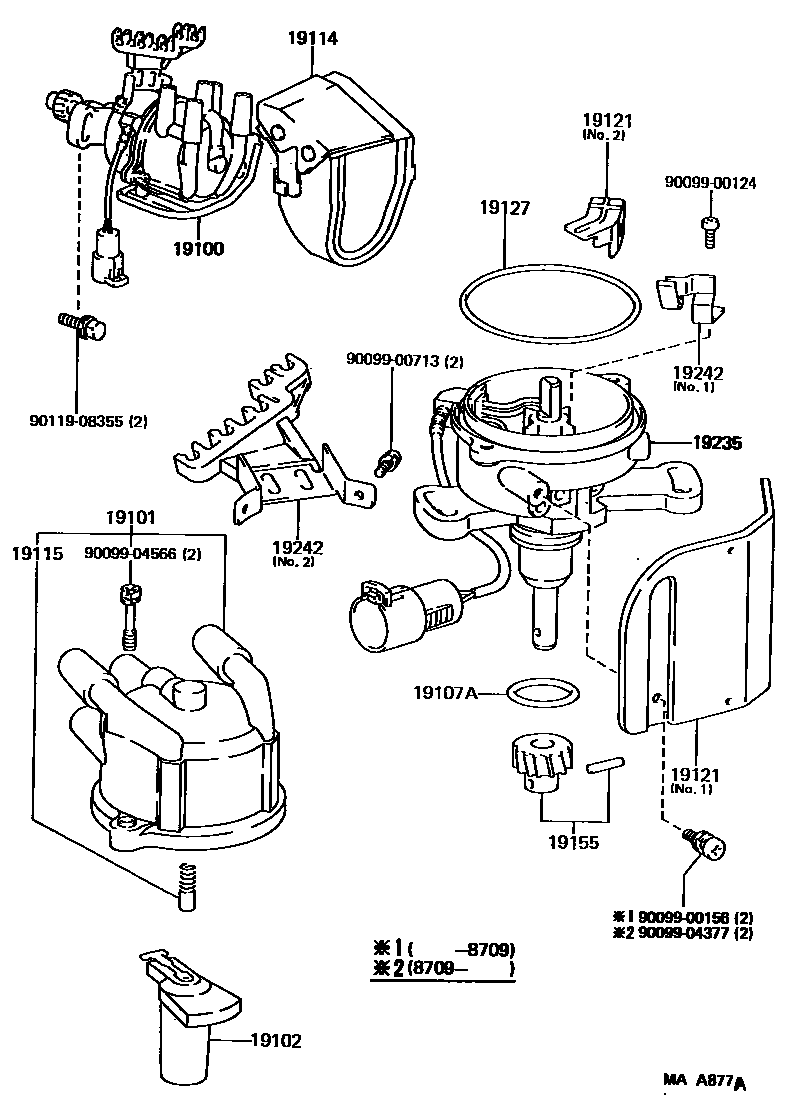

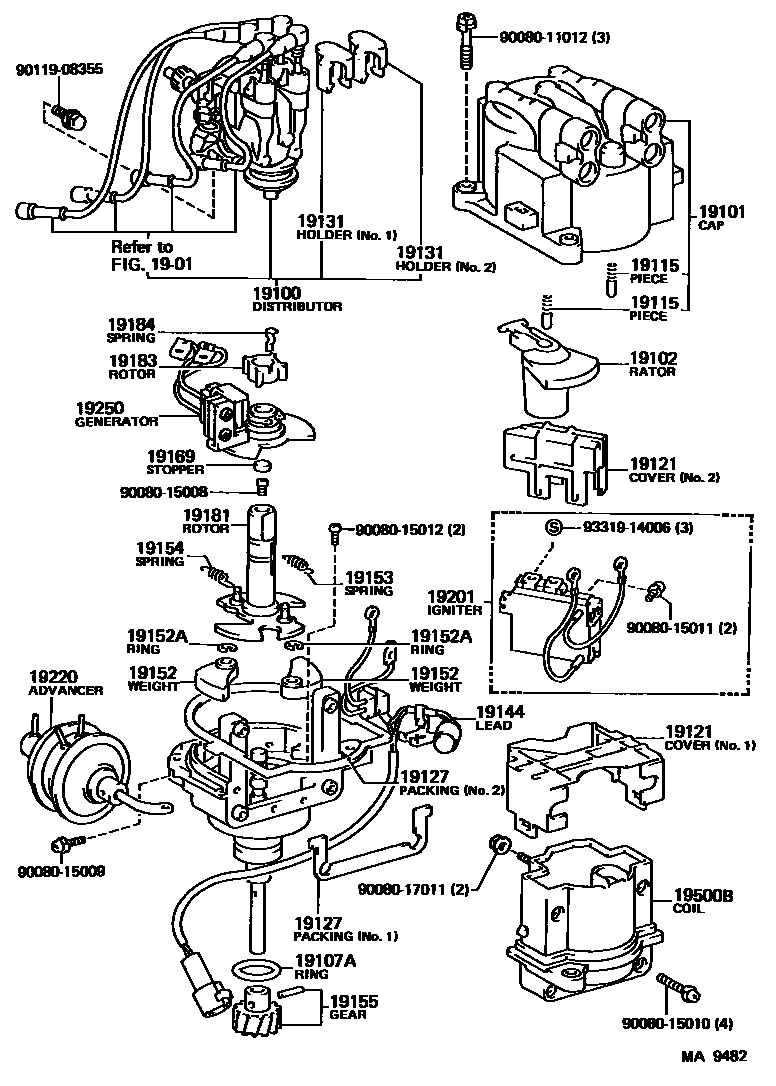

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-16082 · 19100-16130 · 19100-16210 |
| 19101 | Distributor cover sub-assembly | 19101-01030 · 19101-15090 · 19101-16080 |
| 19102 | Distributor flame head sub-assembly | 19102-16060 · 19102-73021 |
| 19107A | Distributor housing O-ring | 96711-35030 |
| 19114 | Waterproof cover (for distributor) | 19114-02010 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 |
| 19121 | dust cover | 19121-15090 · 19121-16040 · 19121-16080 · 19121-63040 |
| 19127 | Dust seal | 19127-15021 · 19127-15090 · 19127-63020 |
| 19131 | Wire fasteners | 19131-15010 · 19131-15020 |
| 19144 | Distributor breaker lead | 19144-16011 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-01021 |
| 19154 | B governor spring | 19154-01021 |
| 19155 | Distributor spiral gear | 19195-15021 · 19195-16040 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-01031 |
| 19183 | Signal splitter | 19183-63010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-16080 |
| 19220 | Distributor vacuum advance device assembly | 19220-01021 |
| 19235 | Distributor housing | 19235-16130 |
| 19242 | Cable clip | 19242-16030 · 19242-16080 |
| 19250 | Signal generator assembly | 19251-15091 |
| 19500B | Ignition coil assembly | 90919-02135 |
