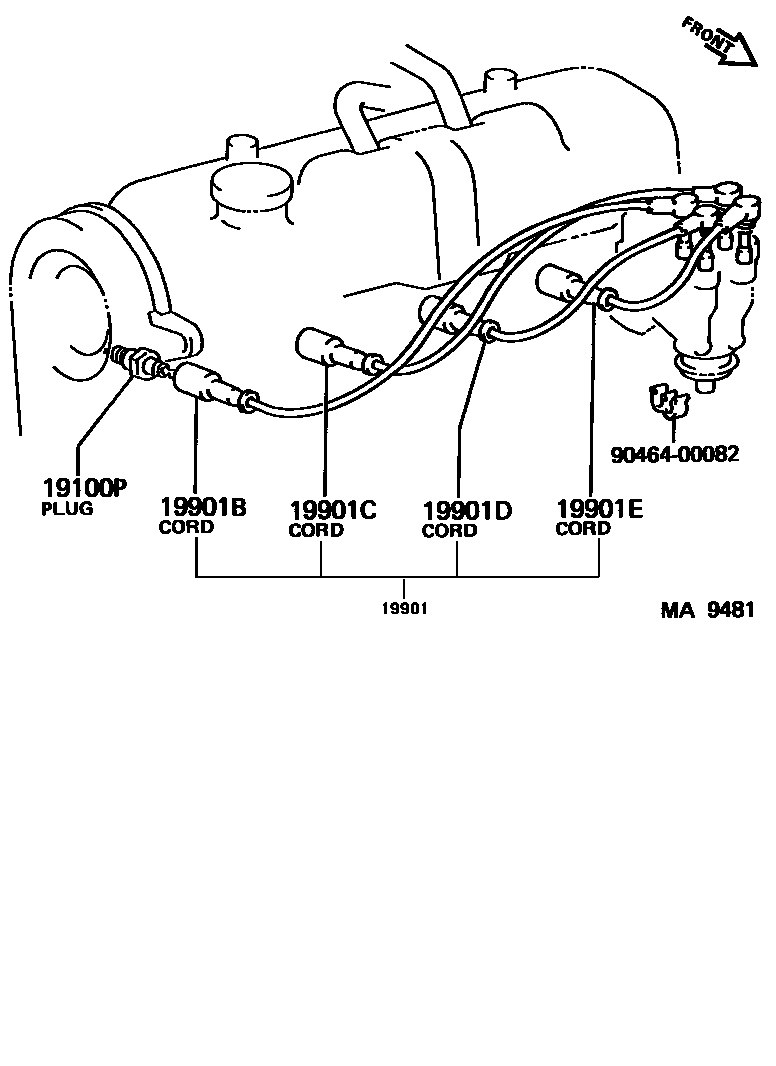

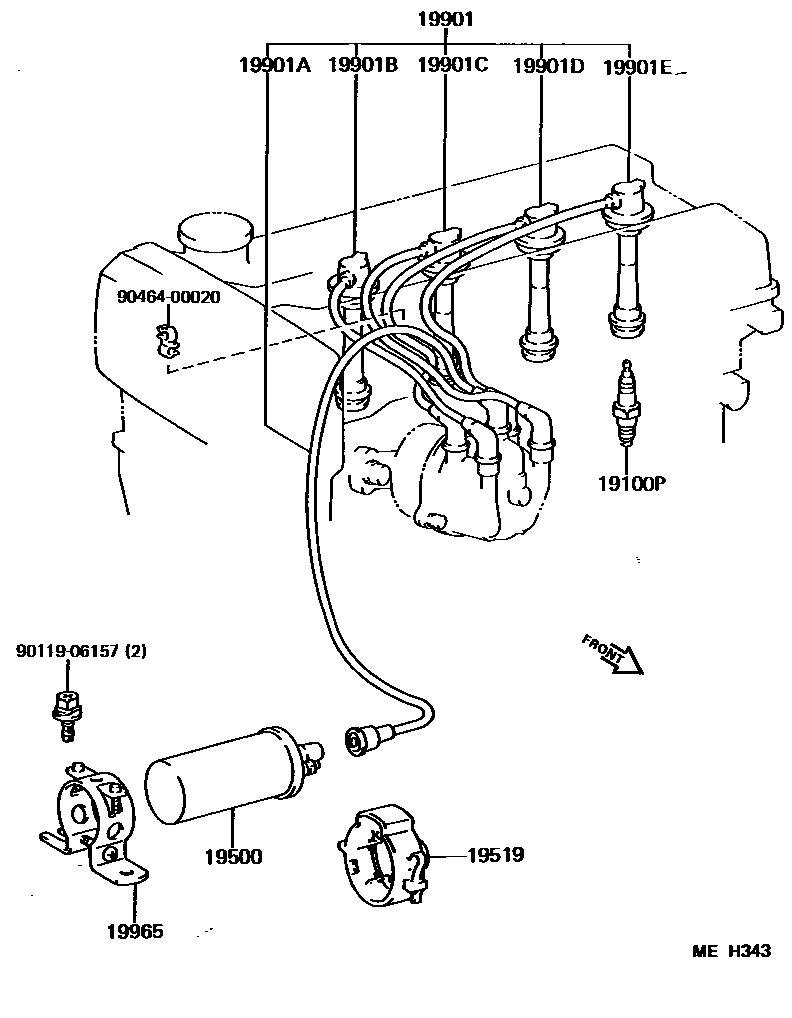

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01091 · 90919-01121 |
| 19500 | Ignition coil assembly | 90919-02113 |
| 19519 | Ignition coil cover | 19519-01010 · 19519-28020 |
| 19901 | Coil and spark plug assembly with damper wire | 90080-91022 · 90081-91007 · 90919-22147 |
| 19901A | coil damping line | 90080-91014 · 90081-91003 |
| 19901B | No. 1 spark plug damper wire | 90919-12514 · 90919-12602 · 90919-12737 |
| 19901C | No. 2 spark plug damper wire | 90919-12515 · 90919-12603 · 90919-12738 |
| 19901D | No. 3 spark plug damper wire | 90919-12475 · 90919-12604 · 90919-12739 |
| 19901E | No. 4 spark plug damper wire | 90919-12476 · 90919-12605 · 90919-12740 |
| 19965 | No. 1 ignition coil band | 90919-03104 |
