Toyota COROLLA vacuum tube — Figure 1708

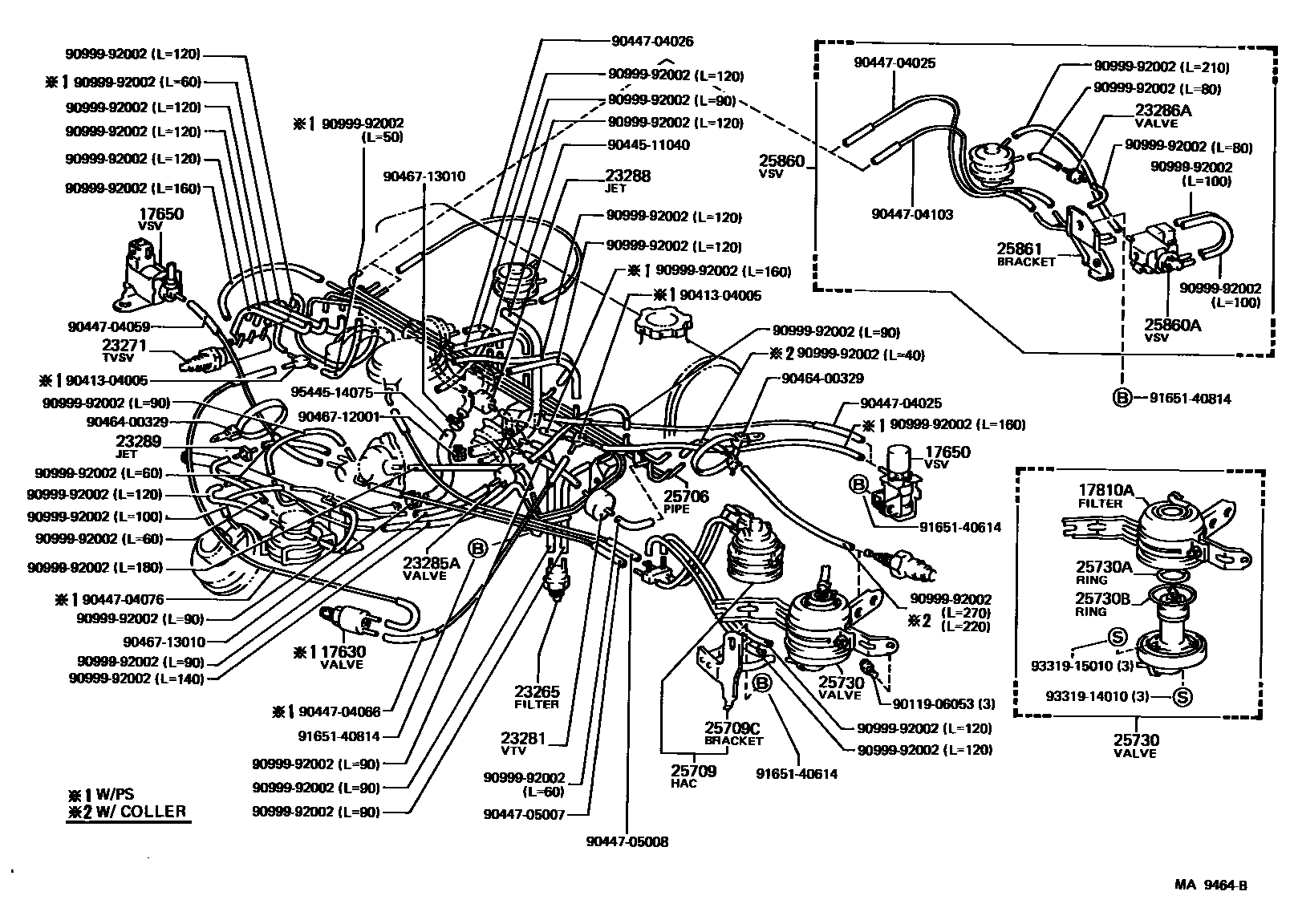

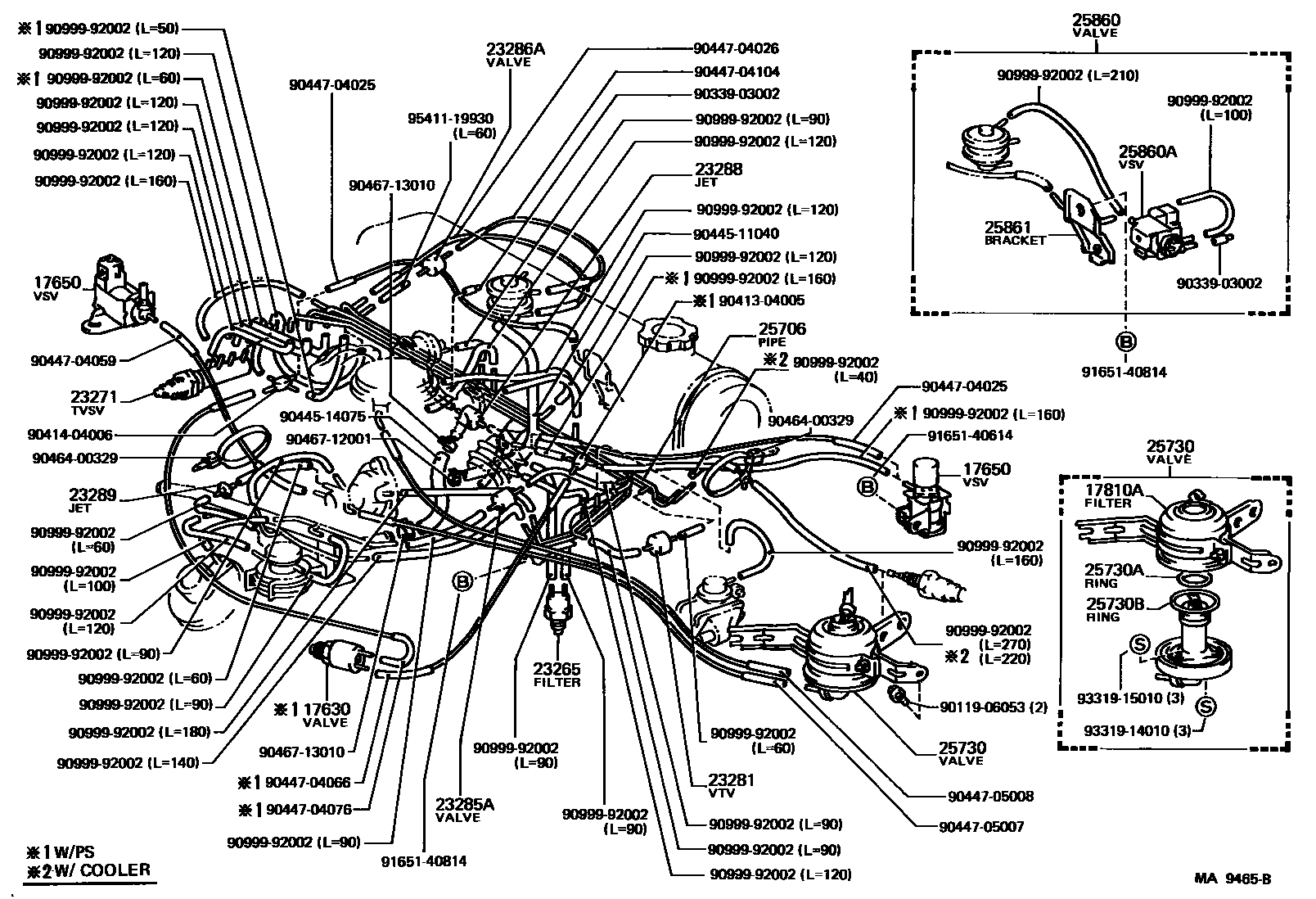

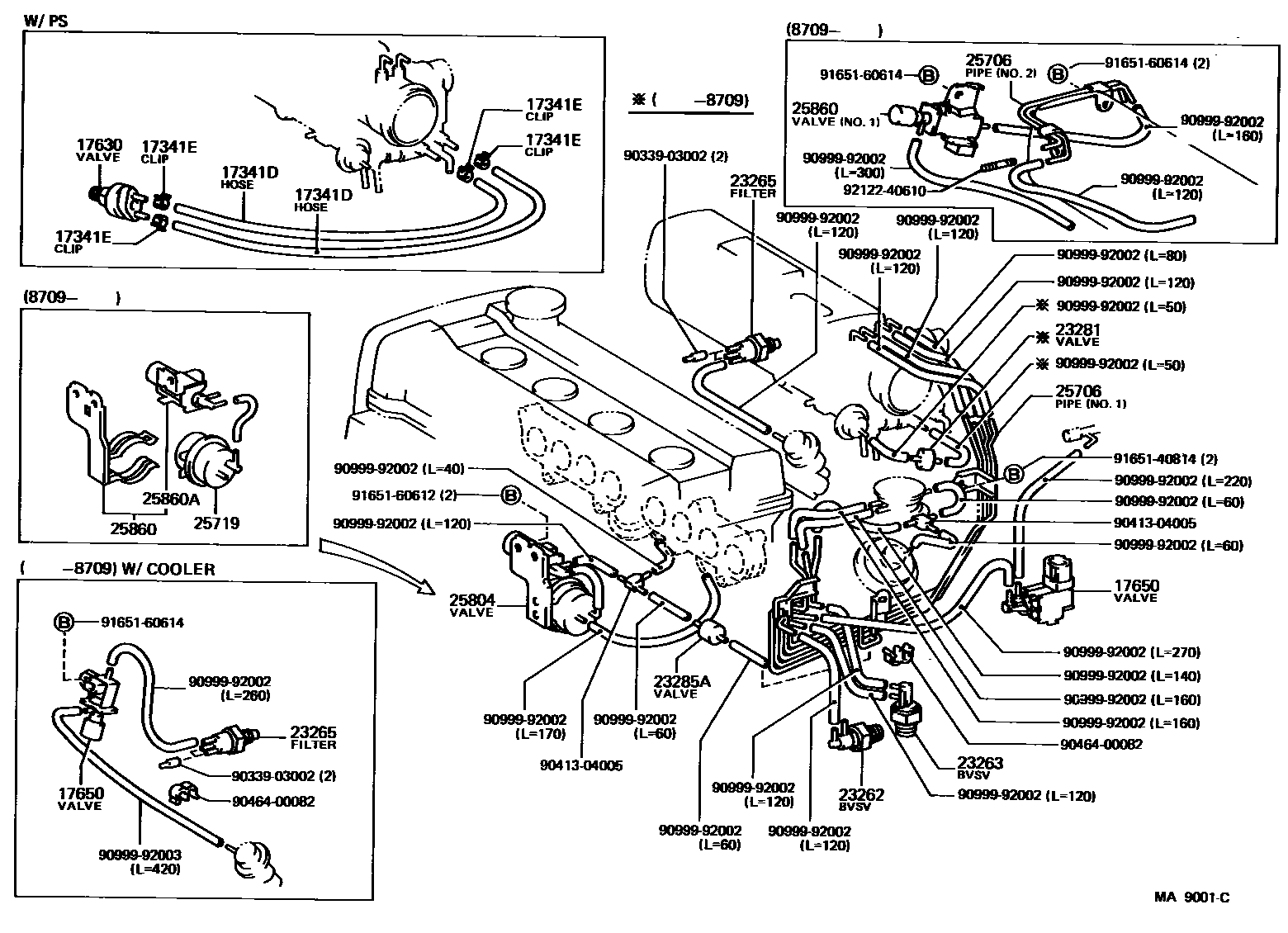

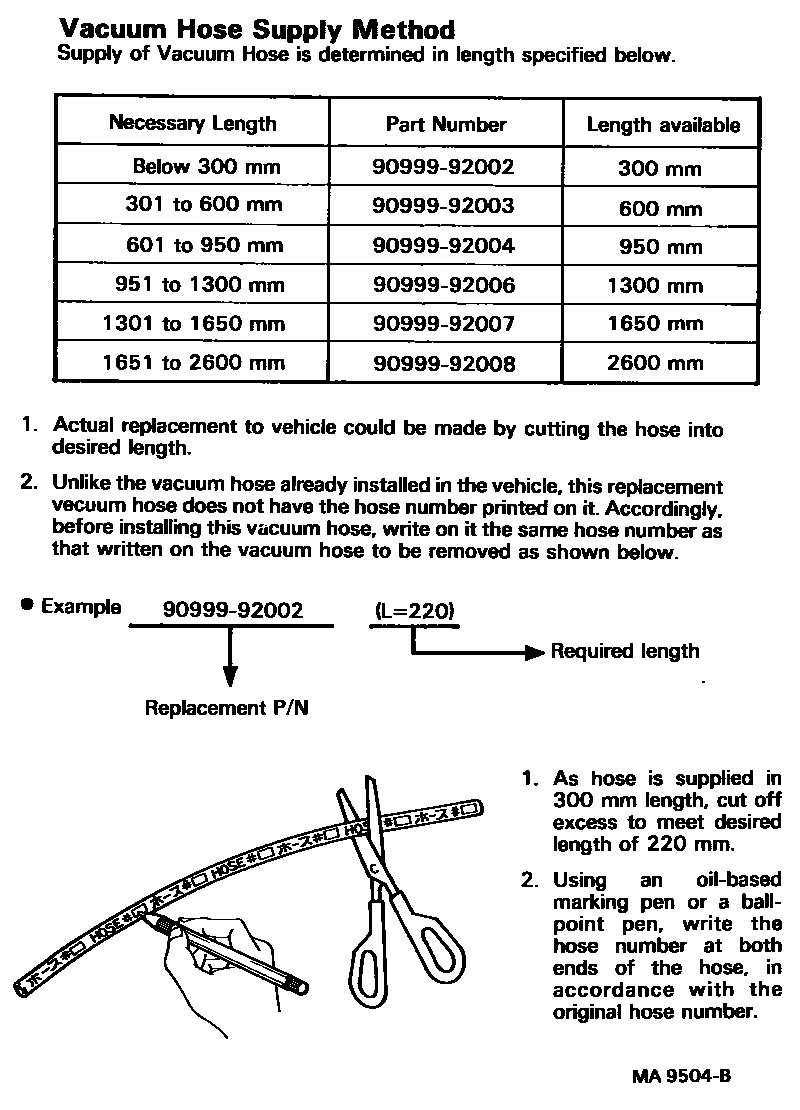

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341D | No. 1 hose (for idle boost) | 17341-16090 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17630 | Air control valve assembly | 17630-15030 · 17630-70010 |
| 17650 | Vacuum switch valve assembly | 89570-12301 · 90081-91002 · 90081-91004 · 90910-12007 |
| 17810A | air filter assembly | 17810-16010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 |
| 23263 | No. 2 bimetallic vacuum switch valve | 90925-05047 |
| 23265 | No. 1 gas filter | 90917-11023 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23286A | No. 2 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04012 |
| 23289 | Nozzle No. 2 | 90925-04034 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-16110 · 25706-16121 · 25706-16141 · 25706-16240 |
| 25709 | High altitude compensator valve sub-assembly | 25708-01040 · 25708-16010 |
| 25709C | High Altitude Compensator Bracket | 25792-16020 |
| 25719 | Vacuum pressure tank | 25719-16020 |
| 25730 | Electronic exhaust control valve assembly | 25730-16040 |
| 25730A | No. 1 O-ring (for electronic exhaust control valve) | 90096-80002 |
| 25730B | No. 2 O-ring (for electronic exhaust control valve) | 90099-06032 |
| 25804 | Vacuum control valve assembly | 25804-16010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-01020 · 25860-01030 · 25860-01040 · 25860-16070 |
| 25860A | No. 1 vacuum switch valve | 90080-91020 · 90910-12052 |
| 25861 | Vacuum switch valve bracket | 25861-01010 · 25861-01020 |
