Toyota COROLLA Air Cleaner — Figure 1703

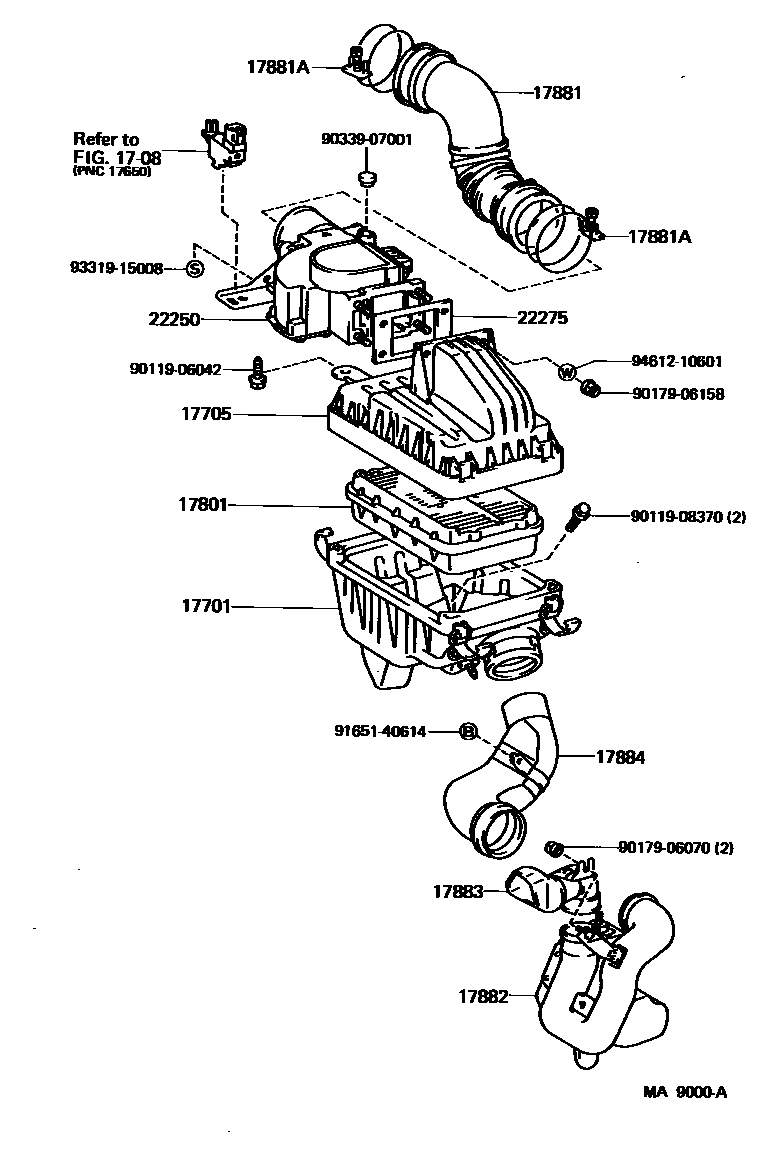

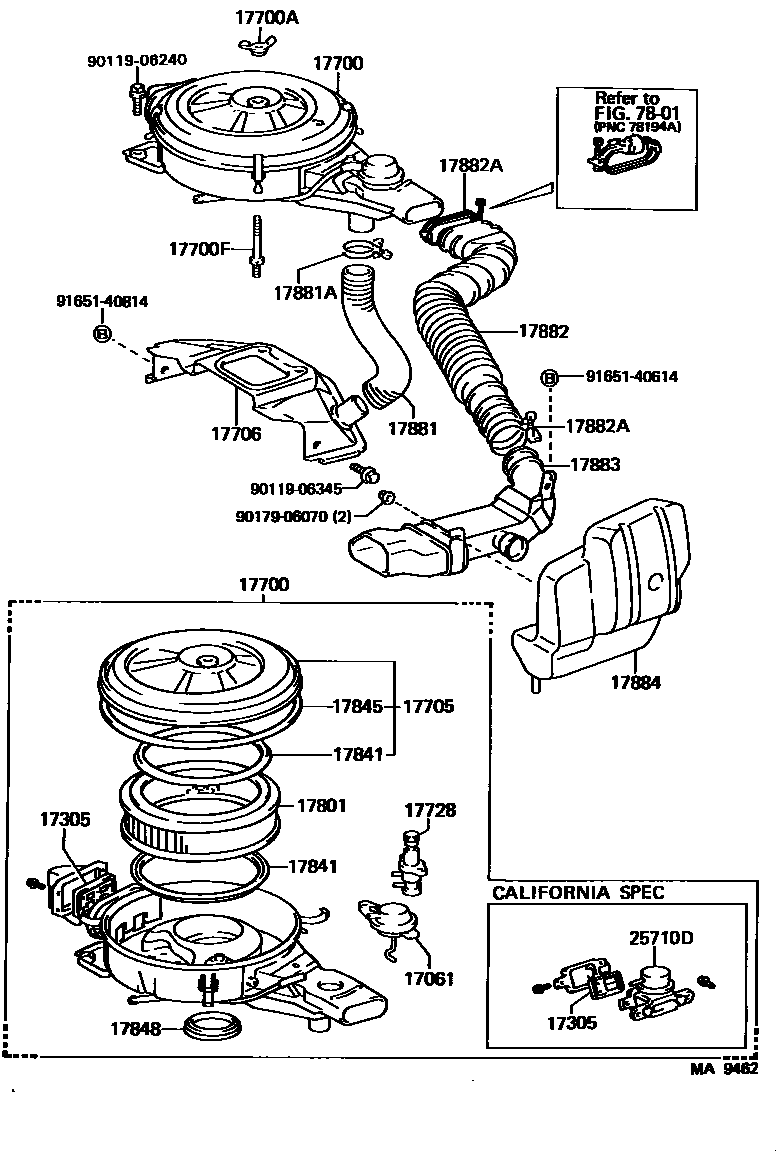

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-15030 |
| 17305 | Reed valve sub-assembly | 17305-15010 · 17305-16010 |
| 17700 | air filter assembly | 17700-16190 · 17700-16240 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 |
| 17700F | Stud bolt (for securing air filter) | 90116-06039 |
| 17701 | Air filter housing sub-assembly | 17701-16040 |
| 17705 | Air filter cover sub-assembly | 17705-16050 · 17705-74061 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17902-16010 |
| 17728 | thermostat valve | 17728-15020 |
| 17801 | Air filter element sub-assembly | 17801-01020 · 17801-15010 · 17801-74010 |
| 17841 | filter liner | 17841-15010 |
| 17845 | air cleaner cover gasket | 17845-61011 |
| 17848 | Gasket from air cleaner to carburetor | 90430-63001 |
| 17881 | No. 1 air cleaner hose | 17881-01040 · 17881-16110 · 17881-16170 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90929-01117 · 96111-10800 |
| 17882 | No. 2 air cleaner hose | 17880-12050 · 17881-12060 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 · 96111-10650 |
| 17883 | No. 3 air cleaner hose | 17882-12020 · 17884-02011 · 17884-12020 |
| 17884 | No. 4 air cleaner hose | 17881-12080 · 17883-12020 |
| 22250 | Intake air flow meter assembly | 22250-02010 · 22250-02011 |
| 22275 | air flow meter gasket | 22275-41010 |
| 25710D | Air switch valve assembly | 25710-15050 |
