Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 25 PNC and OE references.

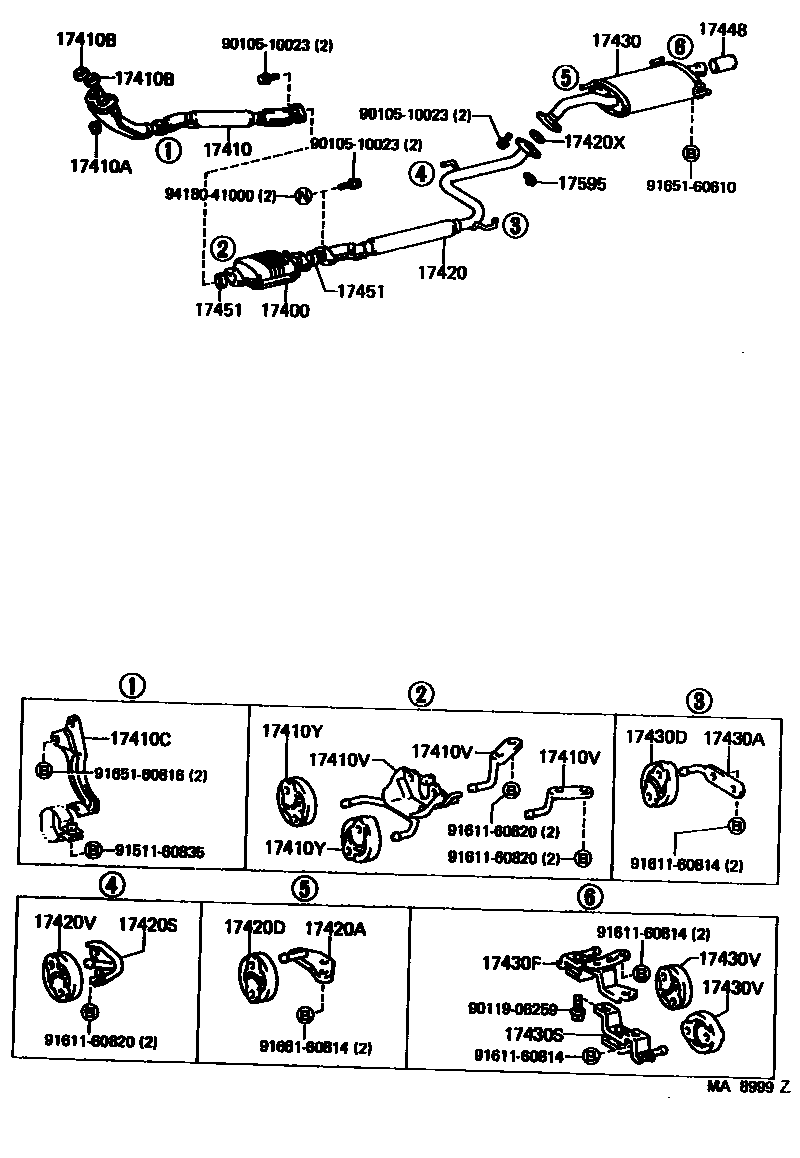

Toyota COROLLA Exhaust Pipe EPC diagram — MA8999Z
Exhaust Pipe — MA8999Z (198609 – 999999)

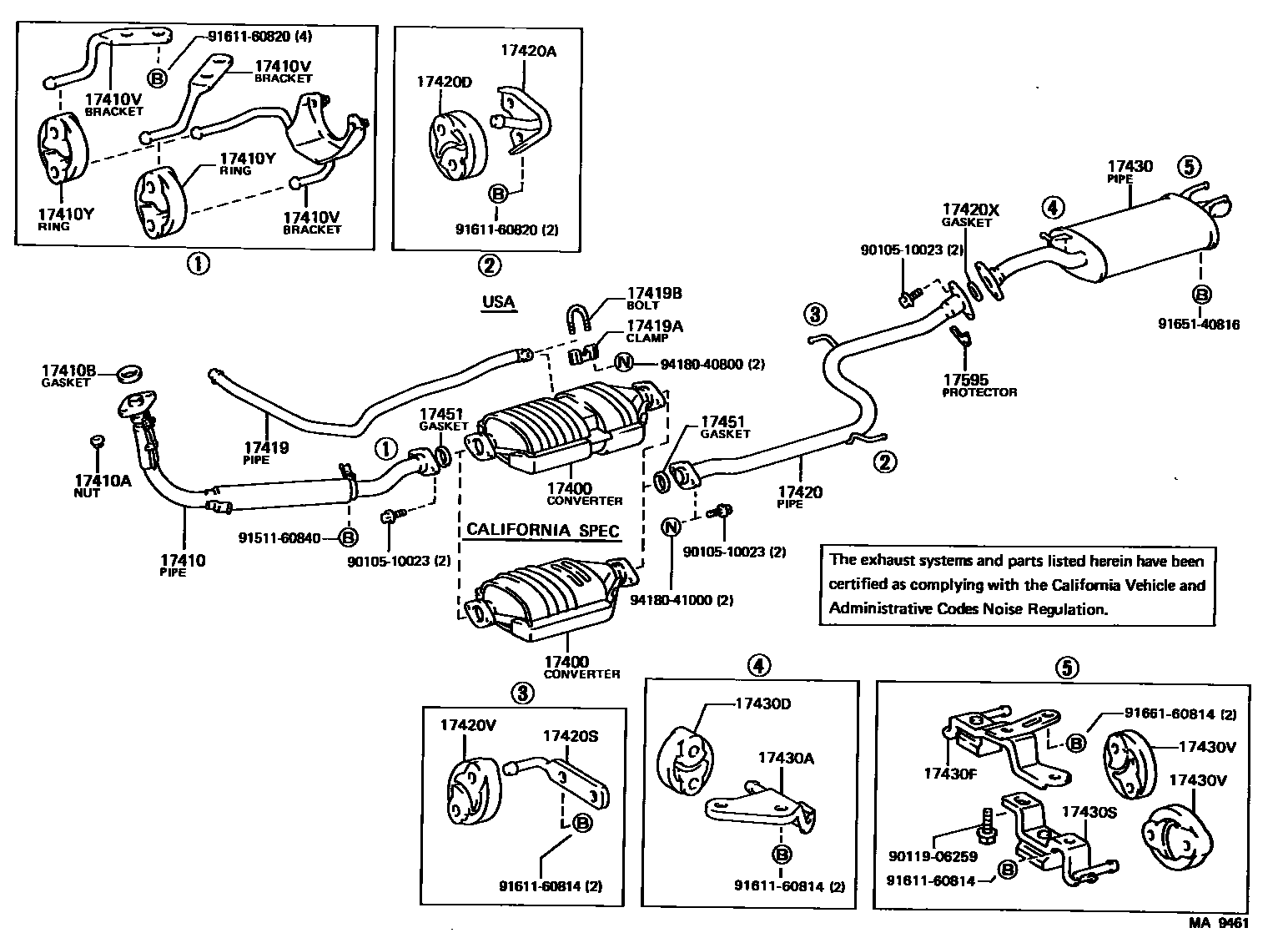

Toyota COROLLA Exhaust Pipe EPC diagram — MA9461
Exhaust Pipe — MA9461 (198702 – 999999)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-15110 · 18450-16050 · 18450-16120 · 18450-16210
17410Front exhaust pipe assembly17410-02020 · 17410-16060 · 17410-16070 · 17410-16200
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket90917-06004 · 90917-06039
17410CFront exhaust pipe bracket (for front)17571-16100
17410VFront exhaust pipe bracket (for rear)17503-16050 · 17503-16070 · 17587-14011 · 17588-14011
17410YFront exhaust pipe bolts or rings (for rear)17565-16020
17419Three-way catalytic converter intake pipe17419-16010
17419AClamp No. 1 (for three-way catalytic converter intake pipe)17578-15020
17419BU-shaped bolt (for three-way catalytic converter intake pipe)90117-08022
17420Central exhaust pipe assembly17420-16010 · 17420-16030 · 17420-16040
17420ACenter exhaust pipe front bracket17507-15020
17420DCenter exhaust pipe front bolt or ring17565-63071
17420SCenter exhaust pipe rear bracket17572-14010
17420VCenter exhaust pipe rear bolt or ring17565-63071
17420XCenter exhaust pipe liner90917-06004 · 90917-06039
17430Exhaust tailpipe assembly17430-02020 · 17430-11060 · 17430-16170
17430AExhaust tailpipe bracket (for front)17508-15010
17430DExhaust tailpipe bolts or rings (for front)17565-63030
17430FExhaust tailpipe bracket (for center)17506-16020
17430SExhaust tailpipe bracket (for rear)17509-16020
17430VExhaust tailpipe bolts or rings (for rear)17565-63030
17448Exhaust pipe tail throat17448-16020
17451Exhaust pipe gasket90080-43009 · 90917-06012 · 90917-06020 · 90917-06047
17595No. 3 lower exhaust pipe protection device17597-14010
