Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

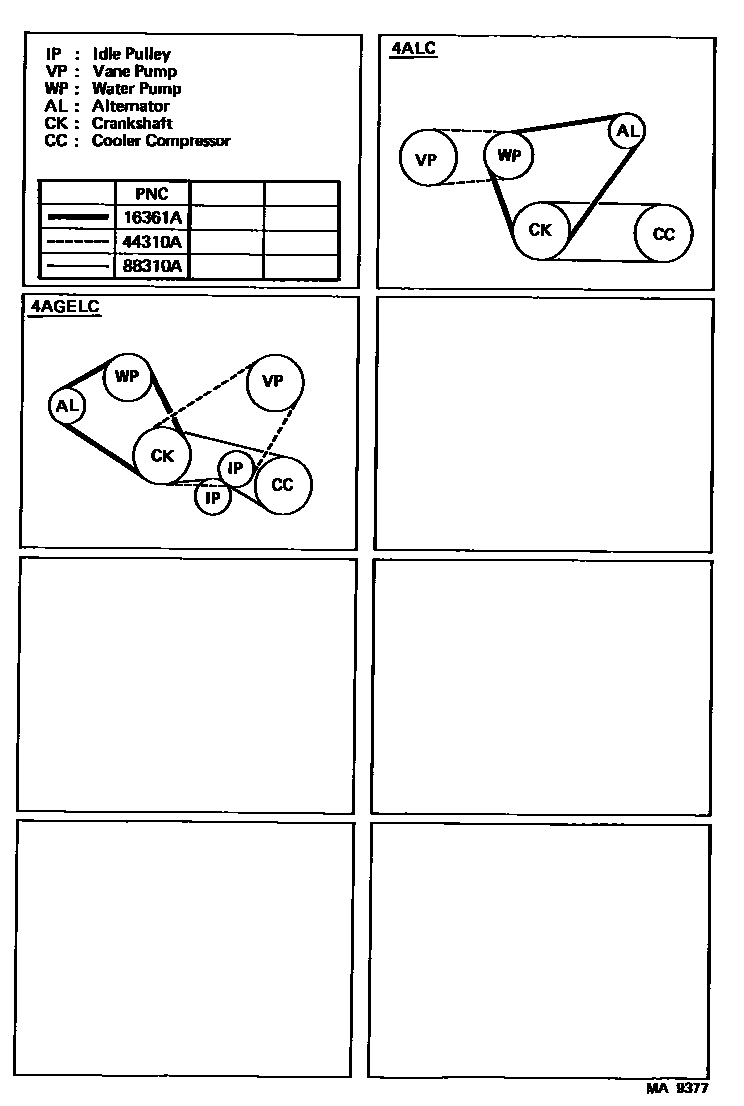

Toyota COROLLA V-Belt EPC diagram — MA9377
V-Belt — MA9377 (198609 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02148 · 99365-00970 · 99365-50820
44310AV-belt (for vane pump)99363-00630 · 99365-50920
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90916-02191 · 99332-10875 · 99365-01060
