Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

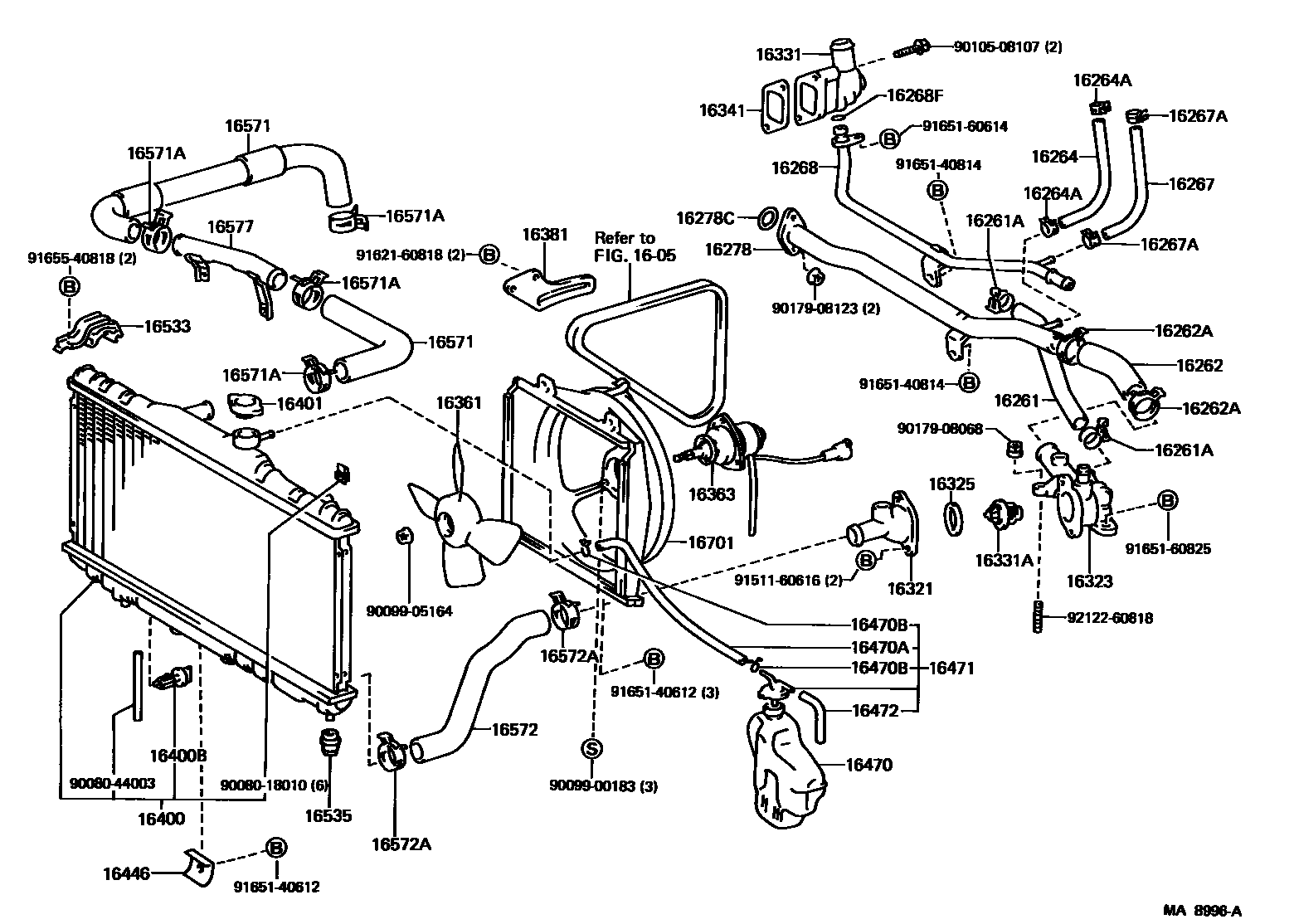

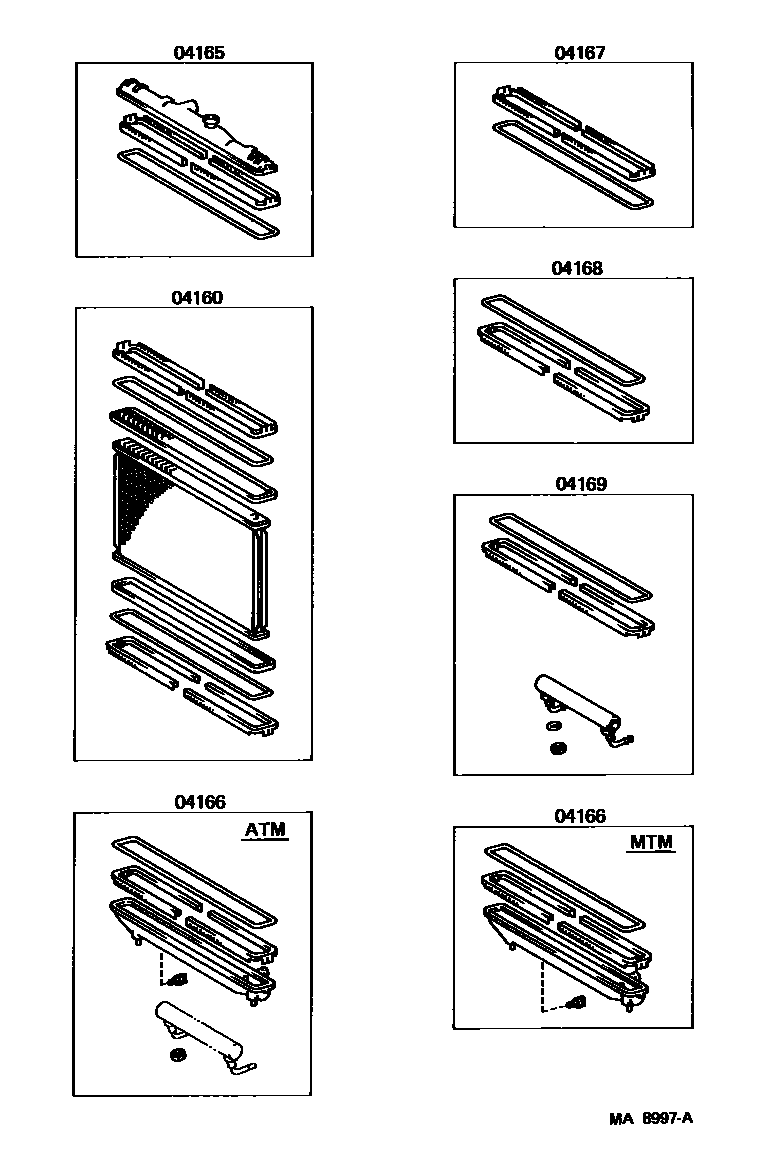

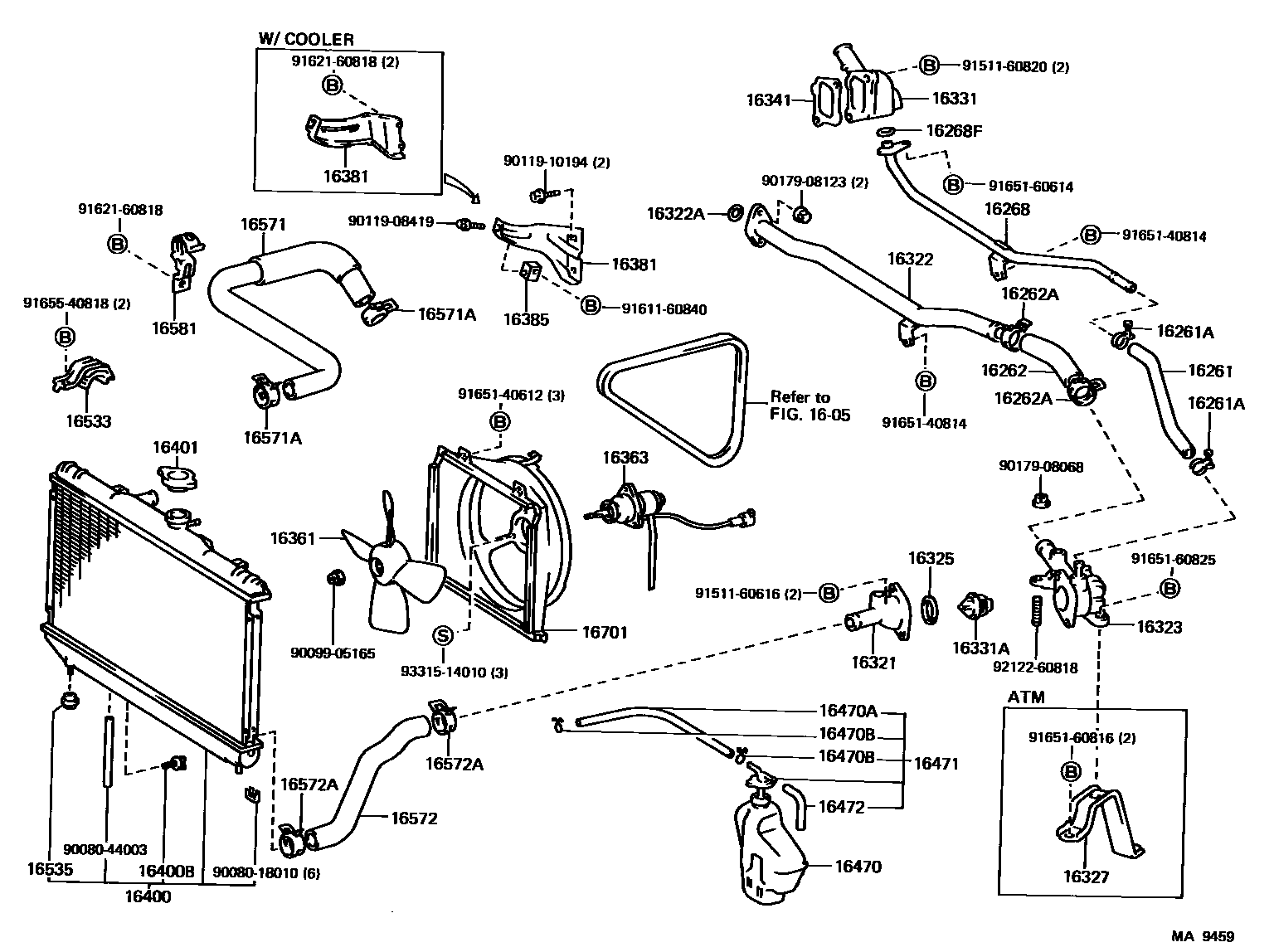

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04160 | Radiator core assembly | 04160-01010 · 04160-01011 · 04160-01020 · 04160-01021 |
| 04165 | Radiator upper tank assembly | 04165-01010 · 04165-01011 |
| 04166 | Radiator lower tank assembly | 04166-01010 · 04166-01011 · 04166-01020 · 04166-01021 |
| 04167 | Upper radiator ring and fin assembly | 04167-01010 |
| 04168 | Lower radiator ring and fin assembly | 04168-01010 |
| 04169 | Transmission oil cooler assembly (for ATM) | 04169-01010 · 04169-01011 |
| 16261 | HOSE, WATER BY-PASS | 16261-15010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96112-10250 |
| 16262 | water inlet hose | 16262-15010 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-16030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-16010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-15060 · 16268-16070 |
| 16268F | O-ring (for water bypass pipe) | 96711-24013 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-16060 |
| 16278C | O-ring (for No. 2 water bypass pipe) | 96711-24035 |
| 16321 | water inlet | 16321-15010 |
| 16322 | PIPE, WATER INLET | 16322-15030 |
| 16322A | O-RING, WATER INLET | 96711-24035 |
| 16323 | HOUSING, WATER INLET | 16323-15030 · 16323-16050 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16327 | Water inlet shell bracket | 16327-15010 |
| 16331 | Water outlet | 16331-15060 · 16331-16030 |
| 16331A | thermostat | 90916-03046 · 90916-03060 |
| 16341 | GASKET, WATER OUTLET | 16341-15011 · 16341-16010 · 16341-16020 |
| 16361 | Fan | 16361-15080 · 16361-64010 |
| 16363 | cooling fan motor | 16363-02011 · 16363-02021 · 16363-16030 · 16363-64010 |
| 16381 | Fan belt adjustment lever | 16381-16021 · 16381-16030 · 88437-12260 |
| 16385 | Fan belt adjustment slider | 16385-15010 |
| 16400 | Radiator assembly | 16410-01011 · 16410-01012 · 16410-01021 · 16410-01022 |
| 16400B | Radiator drain switch screw plug | 23322-01010 |
| 16401 | Radiator cover sub-assembly | 16401-01010 |
| 16446 | Radiator water tank insulation pad | 16446-16060 |
| 16470 | Radiator reservoir assembly | 16400-63020 · 16480-01010 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90080-44001 · 90080-44004 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90080-46035 · 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-01010 · 16405-15030 |
| 16472 | Breather hose | 85338-01010 · 85338-30010 |
| 16533 | Radiator upper bracket | 16533-15062 |
| 16535 | Radiator lower support | 16535-01010 |
| 16571 | Radiator water inlet hose | 16571-15100 · 16571-16040 · 16573-16030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-15150 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 |
| 16577 | Radiator pipe No. 7 | 16577-16020 |
| 16581 | Hose clamp (for water hose) | 16581-15020 |
| 16701 | Fan cover sub-assembly | 16711-15150 · 16711-15191 |
