Toyota COROLLA Engine Oil Cooler — Figure 1503

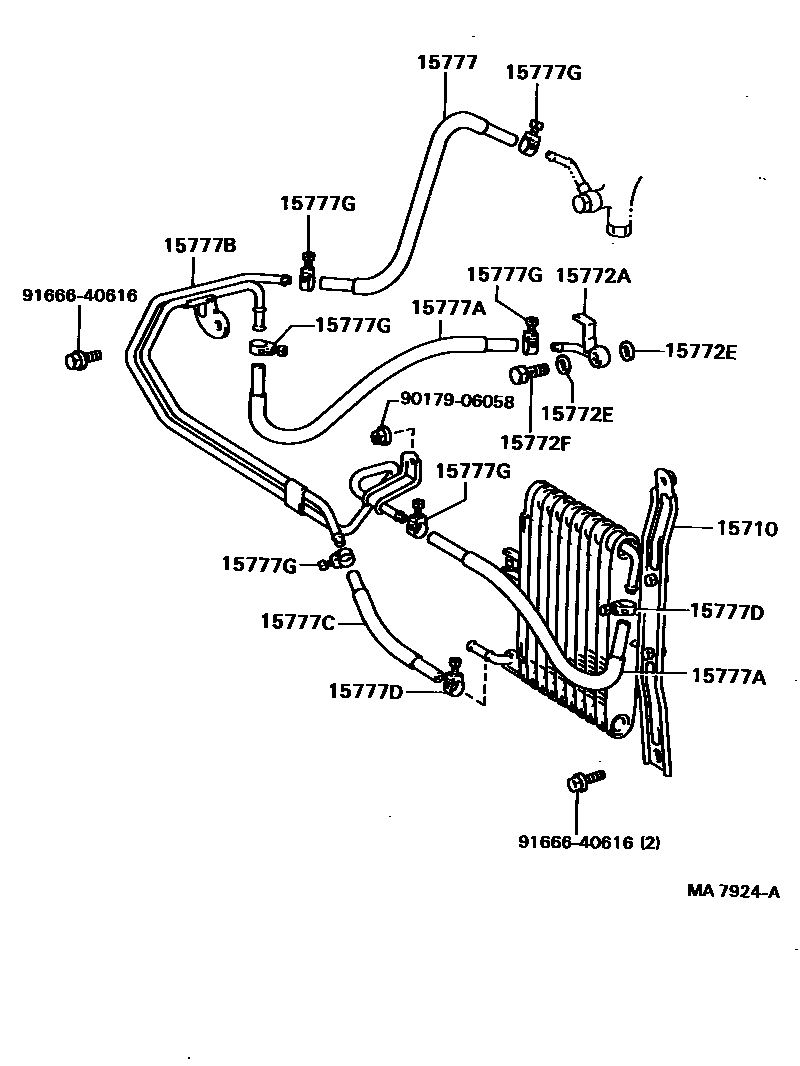

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15710 | Oil cooler assembly | 15700-01010 · 15700-16020 |
| 15772A | Connector (for oil pipe) | 90405-10030 |
| 15772E | Gasket (for oil pipe) | 90430-12018 |
| 15772F | Joint bolt (for oil pipe) | 90401-12009 |
| 15777 | oil cooler hose | 15777-16060 · 15777-16061 |
| 15777A | oil cooler hose | 15776-16020 · 15778-16020 |
| 15777B | oil cooler pipe | 15767-02010 |
| 15777C | oil cooler hose | 15779-16010 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 90460-01001 |
| 15777G | Hose clips or clips | 90460-01001 |
